Chrysler Neon (1994 – 1999) – fuse and relay box diagram
Year of production: 1994, 1995, 1996, 1997, 1998, 1999
The Chrysler Neon, also known as the Dodge Neon in some markets, was a compact car produced by Chrysler Corporation from 1994 to 2005. It was initially marketed under both the Dodge and Plymouth brands in North America and as the Chrysler Neon in international markets.
First Generation (1994–1999), Second Generation (2000–2005), Dodge Neon SRT-4 (2003–2005)
Passenger Compartment Fuse Box
Fuse box location
The fuse panel is located behind the cover on the driver’s side of the dashboard.

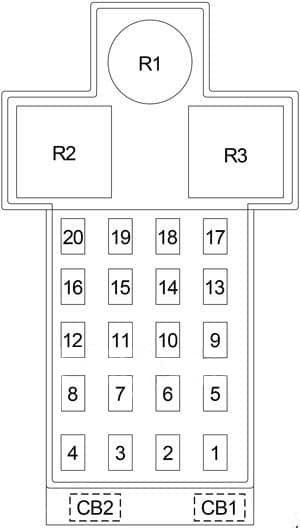

Fuse box Diagram
Assignment of fuses in the passenger compartment
| No. |
A |
Circuit Protected |
| 1 | 15 | Cigar Lighter/Power Outlet |
| 2 | 15 | Headlamp Switch (Park Lamp, Tail Lamp, License Lamp, Radio, Front Fog Lamp Switch, Remote Keyless Entry Module (’98-’99)) |
| 3 | 20 | Door Lock Switch, Remote Keyless Entry Module (’98-’99), Immobilizer (’98-’99) |
| 4 | 10 | Fog Lamp Switch |
| 5 | 10 | ’95-’97: A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch |
| 10 | ’98-’99 (LHD): Airbag Control Module | |
| 10 | ’98-’99 (RHD): A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch, High Speed Warning Module | |
| 6 | 10 | Turn Signal/Hazard |
| 7 | 25 | A/C Heater Blower Motor |
| 8 | 10 | ’95-’97: Airbag Control Module |
| 10 | ’98-’99 (LHD): A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch, High Speed Warning Module | |
| 10 | ’98-’99 (RHD): Airbag Control Module | |
| 9 | 4 | ’95-’97: Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch |
| 10 | ’98-’99 (LHD): Airbag Control Module | |
| 4 | ’98-’99 (RHD): Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch | |
| 10 | 15 | Powertrain Control Module, Air Conditioner Compressor Clutch Relay, ABS, Vapor Canister Leak Detector, Torque Converter Clutch Solenooid (A/T), Duty Cycle EVAP/Purge Solenoid, ABS Relay Box, EGR Transducer Solenoid, ABS Warning Lamp Relay |
| 11 | 5 | Instrument Cluster, Daytime Running Lamp Module (’98-’99), Remote Keyless Entry Module (’98-’99), Immobilizer (’98-’99) |
| 12 | 10 | ’95-’97: Airbag Control Module |
| 4 | ’98-’99 (LHD): Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch | |
| 10 | ’98-’99 (RHD): Airbag Control Module | |
| 13 | – | – |
| 14 | 20 | Sunroof |
| 15 | 20 | Wiper Motor, Wiper/Washer Switch, Intermittent Wiper/Washer Switch, Cigar Lighter Relay |
| 16 | 10 | Radio |
| 17 | 10 | Left Headlamp, Left/Right Headlamp Leveling Motor |
| 18 | 10 | Right Headlamp |
| 19 | – | – |
| 20 | – | – |
| Circuit Breaker | ||
| CB1 | 30 | Power Window, Power Window |
| CB2 | – | – |
| Relay |
||
| R1 | ’98-’99 (LHD): Time Delay | |
| R2 | ’95-’97: Cigar Lighter | |
| ’98-’99 (LHD): Combination Flasher | ||
| ’98-’99 (RHD): Cigar Lighter | ||
| R3 | ’95-’97: Combination Flasher | |
| ’98-’99 (LHD): Time Out | ||
| ’98-’99 (RHD): Combination Flasher | ||
Engine Compartment Fuse Box
Fuse box location

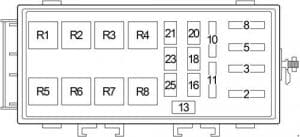

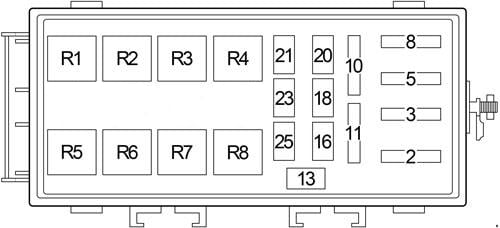

Fuse box diagram
Assignment of fuses and relay in the engine compartment
| No. |
A |
Protected Component |
| 2 | 40 | Ignition Switch (Fuse (Passenger Compartment): “5”, “6”, “7”, “8”, “CB1”) |
| 3 | 40 | Headlamp Switch, Fuse (Passenger Compartment): “1”, “3”, “4” |
| 5 | 30 | Solid State Fan Relay (Radiator Fan) |
| 8 | 30 | Rear Window Defogger |
| 10 | 40 | ABS Relay Box |
| 11 | 30 | Starter Relay, Ignition Switch (Clutch Pedal Position Switch (M/T), Fuse (Passenger Compartment): “10”, “11”, “12”, “14”, “15”, “16”) |
| 13 | 10 | Dome Lamp, Trunk Lamp, Underhood Lamp, Instrument Cluster, Radio, Glove Box Lamp, Map/Reading Lamp, Visor/Vanity Lamp, Power Mirror Switch, High Speed Warning Module (’98-’99), Time Delay Relay (’98-’99), Time Out Relay (’98-’99) |
| 16 | 20 | Fog Lamp Relay, Rear Fog Lamp Switch |
| 18 | 10 | ’95-’97: Air Conditioner Compressor Clutch Relay |
| 20 | ’98-’99: Air Conditioner Compressor Clutch Relay, ABS | |
| 20 | 10 | Turn Signal/Hazard |
| 21 | 20 | Fuel Pump Relay, Auto Shut Down Relay (Fuel Injectors, Ignition Coil Pack, Powertrain Control Module, Generator, Data Link Connector, Oxygen Sensors, Capacitor, Noise Suppressor) |
| 23 | 15 | Horn Relay |
| 25 | 15 | Stop Lamp Switch |
| Relay | ||
| R1 | – | |
| R2 | Fuel Pump | |
| R3 | Auto Shut Down | |
| R4 | Horn | |
| R5 | Fog Lamp | |
| R6 | ABS Warning Lamp | |
| R7 | Air Conditioner Compressor Clutch | |
| R8 | Starter | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
