Year of production: 2021, 2022, 2023, 2024



This article focuses on the fourteenth-generation  Ford F-Series, produced from 2020 to present. It provides  fuse box diagrams for the 2021, 2022 and 2024 Ford F-150 models, along with information on the locations of the fuse panels within the vehicle and the assignment of each fuse and relay (fuse layout).

Engine compartment

Fuse box location

Ford F-150 - fuse and relay box location - engine compartment
Ford F-150 – fuse and relay box location – engine compartment



Fuse box diagram

Version 1

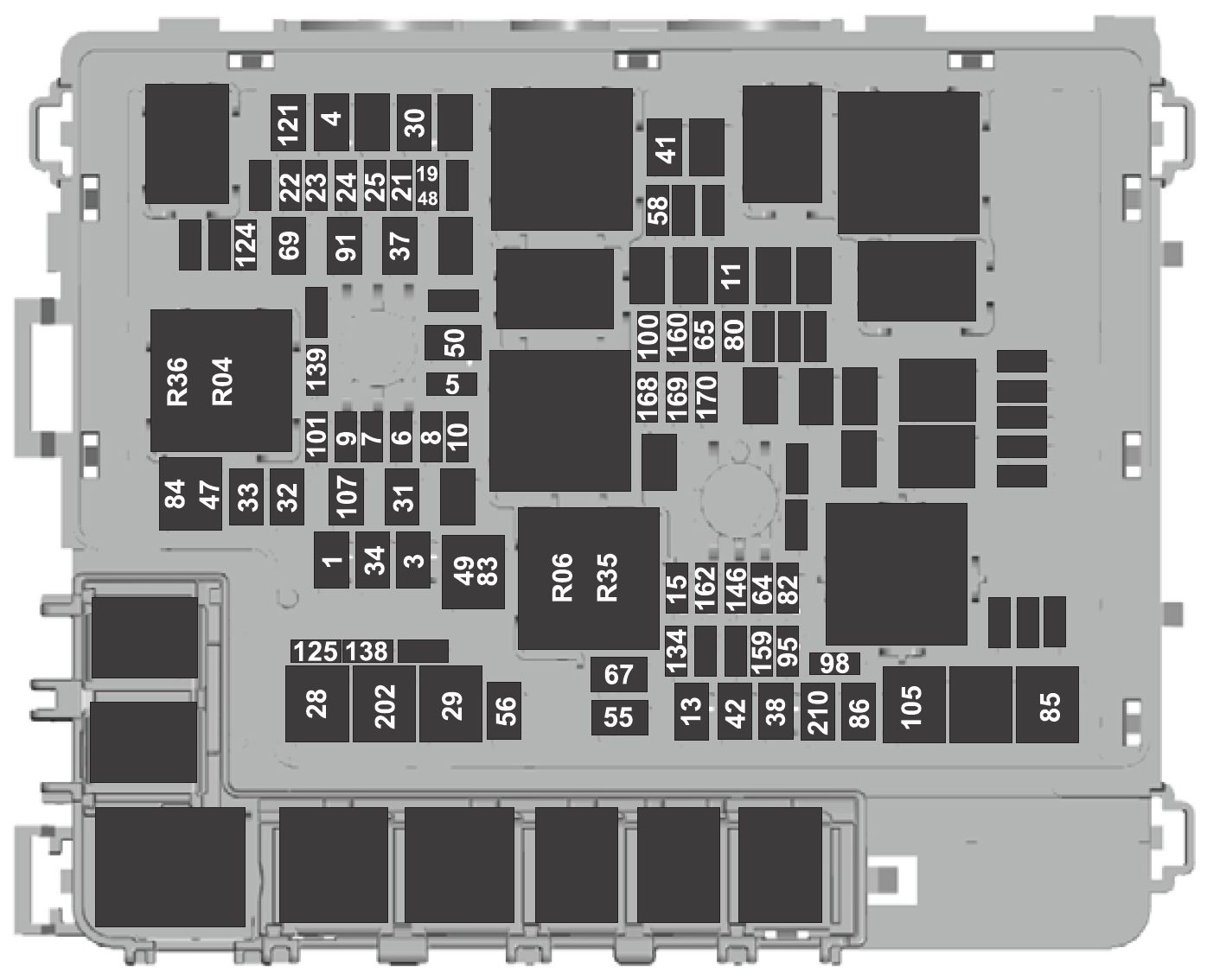

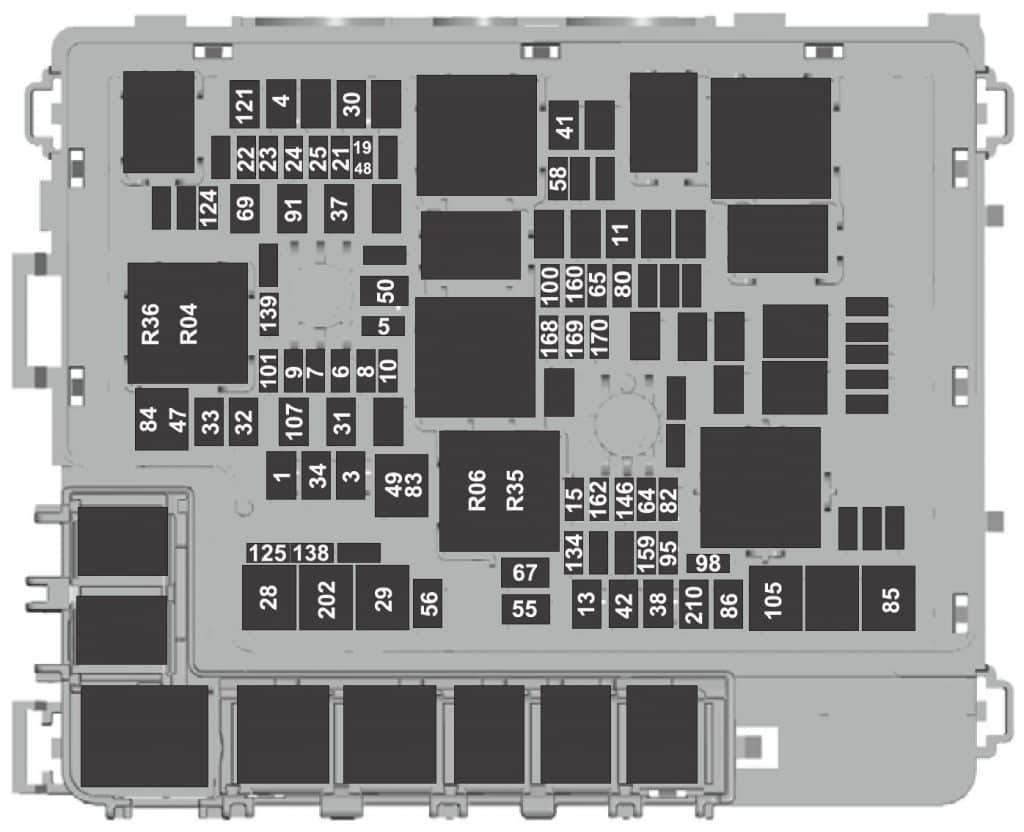

Ford F-150 - fuse and relay box diagram - engine compartment
Ford F-150 – fuse and relay box diagram – engine compartment (version 1)



Assignment of the fuses in the engine compartment (version 1)

Fuse location Fuse rating Protected component
1 40A Body control module – battery power in feed 1
3 40A Body control module – battery power in feed 2
4 30A Fuel pump
5 5A Keep-alive power Powertrain control module (hybrid)
6 25A Powertrain control module power
7 20A Powertrain control module power
8 20A Powertrain control module power (hybrid)
10A Powertrain control module power (gas, diesel)
9 20A Powertrain control module power
10 20A Powertrain control module power (diesel)
11 30A Starter motor
13 40A Blower motor
15 25A Horn
19 20A Snow plow switch
Rear heated seats (gas)
21 10A Headlamp run/start feed
22 10A Electronic power assist steering
23 10A Electric brake boost
24 10A Powertrain control module (gas, hybrid), Transmission control module (diesel), Glow plug control module (diesel)
25 10A Center high-mounted stop lamp camera, Trailer camera, 2 kW inverter, 24 V alternator – run/start feed, Analog rear video camera
28 50A Electric brake boost
29 50A Electric brake boost
30 40A Driver power seat
31 30A Passenger power seat
32 20A Auxiliary power point
33 20A Auxiliary power point, USB smart charger
34 20A Auxiliary power point
37 30A Tailgate module
38 40A Climate controlled seat module, Power running boards
41 25A Power sliding back window
42 30A Trailer brake control module
47 50A Cooling fan
48 20A Rear heated seats (diesel, hybrid)
49 50A Cooling fan
50 40A Heated backlight (gas, hybrid)
55 30A Trailer tow park lamps
56 20A Trailer tow stop and turn lamps
58 10A Trailer tow backup lamps
64 25A Four-wheel drive
65 15A Transmission control module (diesel)
67 20A Transmission run/start
69 30A Left-hand windshield wiper
80 15A Not used (spare)
82 25A Four-wheel drive
83 50A Supplemental heater (diesel)
84 50A Supplemental heater (diesel)
85 50A Supplemental heater (diesel)
86 25A Selective catalytic reduction system
91 20A Trailer tow light module
95 15A Powertrain control module power (hybrid)
98 10A Powertrain control module power (hybrid), Coolant pumps (hybrid)
100 15A Left-hand headlamps
101 15A Right-hand headlamps
105 50A Active front steering
107 30A Trailer tow battery charge
121 30A Fuel filter heater (diesel)
124 5A Rain sensor module
125 10A USB smart charger
134 25A Multi-contour seats relay
138 10A Tailgate release
139 5A USB smart charger
146 15A Traction battery control module
159 5A DC/DC power (hybrid)
160 10A Smart data link control
162 7.5A Not used (spare)
168 20A Traction battery control module (hybrid)
169 10A Motor electric cool pump (hybrid)
170 10A Pedestrian alert control module (hybrid), Traction battery control module (hybrid), Electric motor cool pump (hybrid)
202 60A Body control module B+
210 30A Body control module start stop



Relay number Protected component
R04 Electronic fan relay 1
R06 Electronic fan relay 3
R35 Supplemental heater
R36 Supplemental heater



Fuse box diagram

Version 2

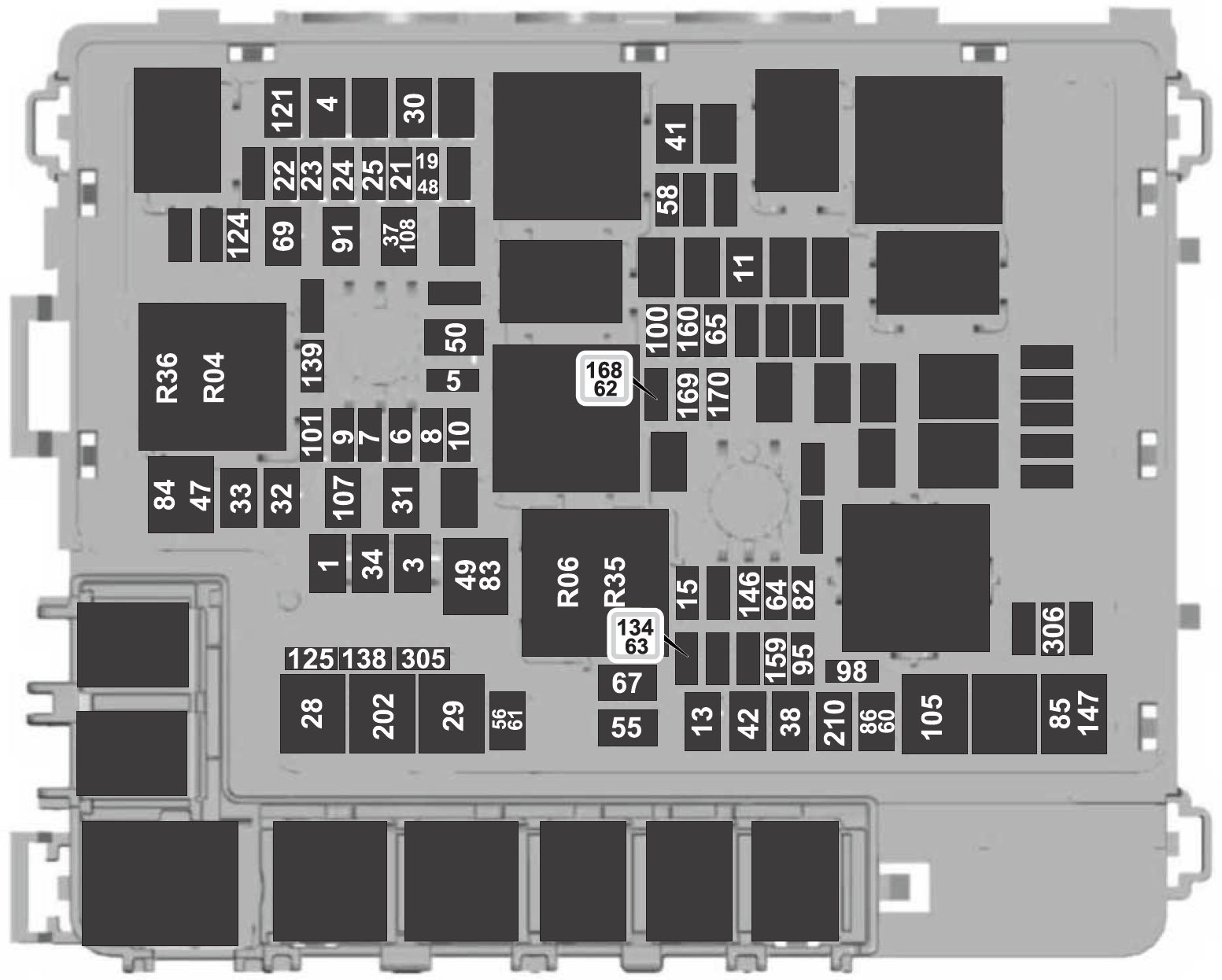

Ford F-150 - fuse and relay box diagram - engine compartment (version 2)
Ford F-150 – fuse and relay box diagram – engine compartment (version 2)



Assignment of the fuses in the engine compartment (version 2)

Item Rating Protected component
1 40A Body control module – battery power in feed 1
3 40A Body control module – battery power in feed 2
4 30A Fuel pump
5 5A Powertrain control module coil
6 25A Powertrain control module power
7 20A Powertrain control module power
8 20A Powertrain control module power (hybrid)
10A Powertrain control module power (gas, diesel, Raptor, Tremor)
9 20A Powertrain control module power
10 20A Powertrain control module power (diesel)
11 30A Starter motor
13 40A Blower motor
15 25A Horn
19 20A Snow plow switch (gas), Rear heated seats (gas, diesel, hybrid)
21 10A Headlamp run/start feed
22 10A Electronic power assist steering
23 10A Electric brake boost
24 10A Powertrain control module (gas, hybrid), Transmission control module (diesel), Glow plug control module (diesel)
25 10A Center high-mounted stop lamp camera, Trailer camera,2 kW inverter, 24 V alternator – run/start feed, Analog rear video camera
28 50A Electric brake boost
29 50A Electric brake boost
30 40A Driver power seat
31 30A Passenger power seat
32 20A Auxiliary power point
33 20A Auxiliary power point, USB smart charger
34 20A Auxiliary power point
37 30A Tailgate module
38 40A Climate controlled seat module,  Power running boards
41 25A Power sliding back window
42 30A Trailer brake control module
47 50A Cooling fan (gas, hybrid, Raptor, Tremor)
48 20A Rear heated seats (Raptor, Tremor)
49 50A Cooling fan (gas, hybrid, Raptor, Tremor)
50 40A Heated backlight (gas, hybrid)
55 30A Trailer tow park lamps
56 20A Trailer tow stop and turn lamps (4-pin connector)
58 10A Trailer tow backup lamps
60 15A Upfitter 1 relay (Raptor, Tremor)
61 15A Upfitter 2 relay (Raptor, Tremor)
62 10A Upfitter 3 relay (Raptor, Tremor)
63 10A Upfitter 4 relay (Raptor, Tremor)
64 25A Four-wheel drive
65 15A Transmission control module (diesel)
67 20A Transmission run/start
69 30A Left-hand windshield wiper
82 25A Four-wheel drive
83 50A Supplemental heater (diesel)
84 50A Supplemental heater (diesel)
85 50A Supplemental heater (diesel)
86 25A Selective catalytic reduction system (diesel)
91 20A Trailer tow light module
95 15A Powertrain control module power (hybrid)
98 10A Powertrain control module power (hybrid) Coolant pumps (hybrid)
100 15A Left-hand headlamps
101 15A Right-hand headlamps
105 50A Active front steering
107 30A Trailer tow battery charge
108 15A Spot lamps (police)
121 30A Fuel filter heater (diesel)
124 5A Rain sensor module
125 10A USB smart charger
134 25A Multi-contour seats relay (gas, diesel, hybrid)
138 10A Tailgate release
139 5A USB smart charger
146 15A Traction battery control module (hybrid)
147 40A Change air cooler fan relay (Raptor, Tremor)
159 5A DC/DC power (hybrid)
160 10A Smart data link control
168 15A Traction battery control module (hybrid)
169 10A Motor electric cool pump (hybrid)
170 10A Pedestrian alert control module (hybrid), Traction battery control module (hybrid), Electric motor cool pump (hybrid)
202 60A Body control module B+
210 30A Body control module start stop
305 5A Upfitter 5 relay (Raptor, Tremor)
306 5A Upfitter 6 relay (Raptor, Tremor)



Relay number Protected component
R04 Electronic fan relay 1
R06 Electronic fan relay 3
R35 Supplemental heater
R36 Supplemental heater



Body Control Module Fuse Box

Fuse box location

Ford F-150 - fuse and relay box location - body control module
Ford F-150 – fuse and relay box location – body control module



Fuse box diagram

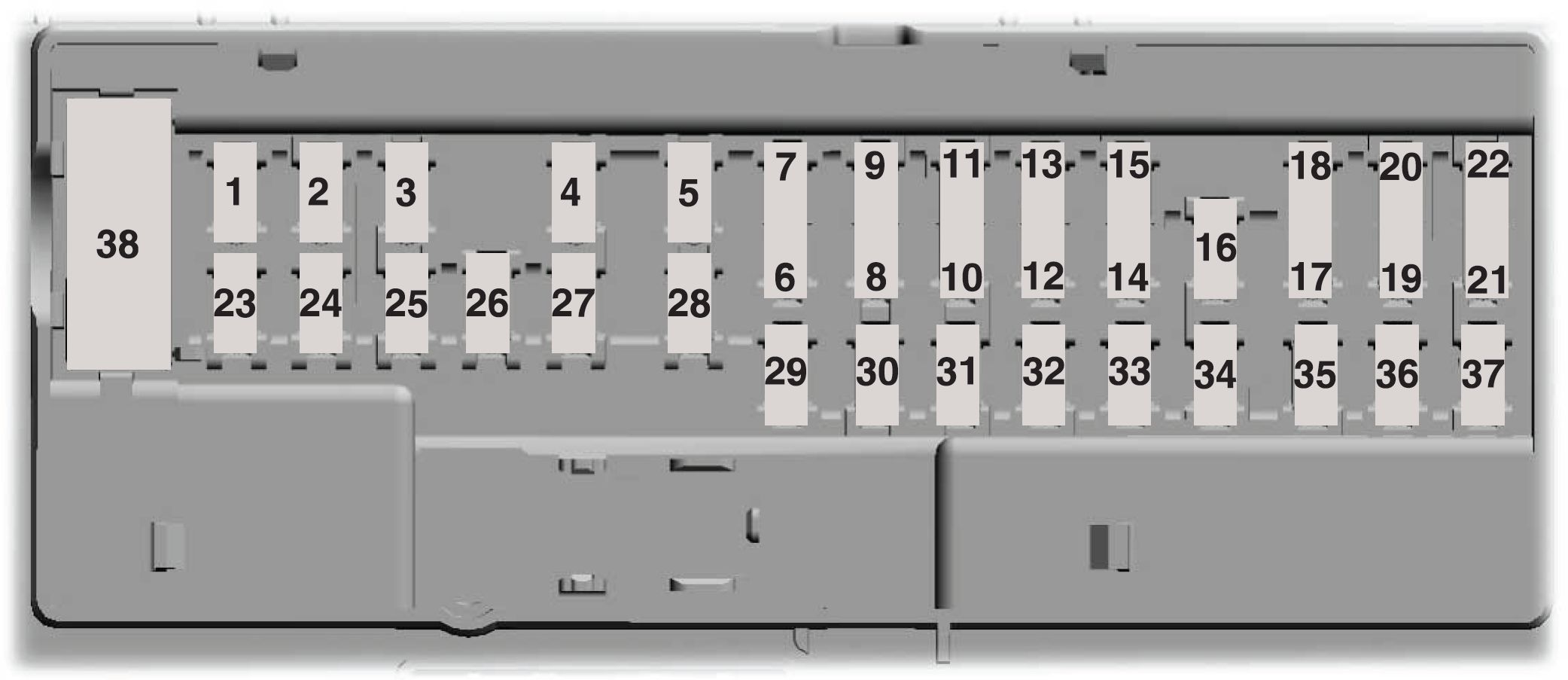

Ford F-150 - fuse and relay box diagram - body control module
Ford F-150 – fuse and relay box diagram – body control module



Assignment of the fuses in the body control module

Fuse location Fuse rating Protected component
1 Not used
2 10A Delayed accessory feed
3 7.5A Wireless charger
4 20A Not used
5 Not used
6 10A Driver power window switch
7 10A Gear shift module
8 5A Cell phone passport module
9 5A Combined sensor module
10 Not used
11 Not used
12 7.5A Enhanced central gateway, Climate control
13 7.5A Instrument cluster, Steering column control module
14 15A Not used (spare)
15 15A Integrated control panel, SYNC
16 Not used
17 7.5A Headlamp control module
18 7.5A Not used
19 5A Headlamp switch
20 5A Passive start, Ignition switch, Key inhibit solenoid
21 5A Trailer brake switch
22 5A Not used
23 30A Driver door control module
24 30A Moonroof
25 20A Not used
26 30A Passenger door control module
27 30A Not used
28 30A Amplifier
29 15A 12 inch display
Adjustable pedals
30 5A Not used
31 10A RF receiver, Driver monitor, Terrain management switch
32 20A Audio control module
33 Not used
34 30A Run/start relay
35 5A 400 watt inverter run/start
36 15A Auto-dimming interior mirror, Rear heat seat run/start, Adaptive front steering run/start, Heated wheel (vehicles without adaptive front steering)
37 20A Advanced driver-assistance systems
38 30A circuit breaker Rear power windows



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
