Saab 900 (1994 – 1998) – fuse box diagram

Year of production: 1994, 1995, 1996, 1997, 1998

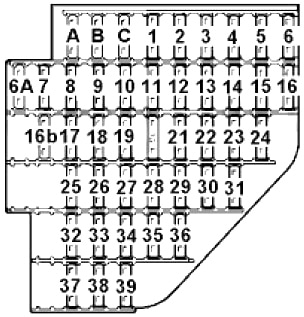

Passenger compartment fuse box

No.	A	Circuits
A	—	—
B	—	—
C	—	—
1	30	Heated Rear Window and Door Mirror
2	15	Direction Indicator
3	30	Ventilation Fan
4	7,5	Interior Lighting, Power Antenna
5	30	Power Seat (Right)
6	30	Cigarette Lighter
6B	—	—
7	30	5-Door Hatchback: Rear Power Windows
	7,5	Convertible: Door Window Motors
8	15	Rear Window Wiper
9	15	’94-’96: Radio
	15	’97-’98: Shift Interlock
10	30	Sensonic
11	7,5	’97-’98: Radio
12	15	Stop Lights
13	15	Radio: Data Link Connector
14	30	Front Power Windows
15	20	Daytime Driving Lights (DRL)
16	30	Power Front Seat (Left)
16B	30	Fuel Injection Relay
17	15	Instruments, Tronic SFI, Transmission Control Module (TCM), Anti-Theft Alarm, Sensonic
18	15	’94-’96: Instruments, Air Bag
	10	’97-’98: Air bags
19	15	ABS, A/C Relay, Air Pump Relay (’97-’98)
20	20	Heated Front Seats, Central Locking
21	10	A/C, Automatic Climate Control (ACC), ICE (Integrated Central Electronics)
22	15	Cruise Control System
23	20	Anti-Theft alarm, Telephone
24	10	’94-’94: APC
25	30	’94-’96: Central Locking, Amplifier
	15	’97-’98: Central Locking System (Boot Lid/Tailgate), Aplifier
26	7,5	’97-’98: Heated Rear Seats
27	15	Full & Dipped Beam, Automatic Climate Control (ACC)
28	30	Traction Control System (TCS), Tronic SFI, Motronic SFI, Fuel Injection
29	7,5	’94-’96: Right Parking Lights
	10	’97-’98: Right Parking Lights, License Plate, Dimmer Switch
30	10	Left Parking Lights
31	15	’94-’96: Reversing Lights, Windscreen Wipers
	20	’97-’98: Windscreen Wipers, Reversing Lights
32	15	’94-’96: Fuel pump
	20	’97-’98: Fuel pump
33	30	’94-’96: Direction Indicator
	15	’97-’98: Heated Rear Seats
34	10	Instruments, Saab Information Display (SID), Transmission Control Module (TCM)
35	10	ICE (Integrated Central Electronics)
36	10	Starter Motor
37	10	Rear Foglights
38	7,5	’94-’96: Heated Oxygen Sensor
	25	’97=’98: Heated Oxygen Sensor (Lambda)
39	—	—

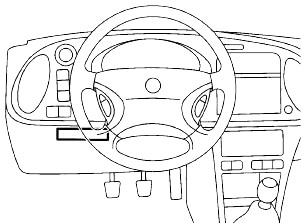

Passenger compartment relay box



No.	A	Circuits
A	—	Rear Fog Light
B	—	Back-Up Lights
C	—	Shift Lock
D	—	Rear Window Wiper
E	—	Ignition Switch
F	—	Overheated 3-Way Caralytic Converter EXH
G	—	Windscreen Wipers
H	—	Rear Window Defoger and Mirror
I	—	Fuel Pump
J	—	Washer Fluid Pump
K	—	Starter
L	—	Fuel Injection System
Auxiliary Holder
N	—	Heated Rear Seats

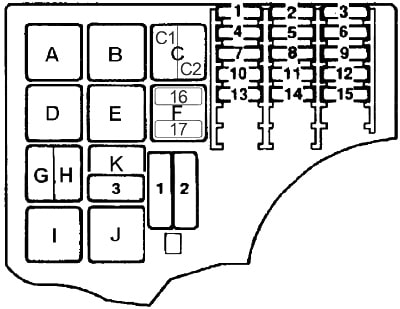

Engine compartment fuse box

No.	A	Circuits
1	10	Horn
2	15	Fog Lights
3	40	Radiator Fan (Low Speed)
4	10	Vacuum Pump
5	15	A/C Compressor Relay
6	15	’94-’96: Left Low Beam
	10	’97-’98: Left Low Beam
7	15	’94-’96: Right Low Bea
	10	’97-’98: Right Low Beam
8	15	’94-’96: Left High Beam
	10	’97-’98: Left High Beam
9	15	’94-’96: Right High Beam
	10	’97-’98: Right High Beam
10	7,5	Headlamp Wipers
11	10	’94-’96: Headlamp Beam Adjustment
12	10	Secondary Air Valve
13	7,5	’97-’98: APC
14	7,5	’97-’98: Spotlights
15	—	—
16	60	’97-’98: Heater Plates
17	30	’97-’98: Air Pump, Secondary Air Injection
1M	30	Radiator Fan (High Speed)
2M	60	’94-’96: ABS
	50	’97-’98: ABS
3M	30	’94-’96: Secondary Air Injection Pump
Relay
A	—	Lighting
	—	Low Beam
B	—	High & Low Beam
	—	High Beam
C	—	’94-’96: Secondary Air Injection Pump
C1	—	’97-’98: Secondary Air Injection Control Valve
C2	—	’97-’98: Vacuum Pump
D	—	Radiator Fan (Low Speed)
E	—	Build Check
F	—	Foglights
G	—	Horn
H	—	’94-’96: Secondary Air Injection Control Valve
	—	’97-’98: Fog Lights
I	—	Radiator Fan (High Speed)
J	—	A/C and Automatic Climate Control (ACC)
K	—	’97-’98 (Motronic): Secondary Air Injection Pump
	—	’97-’98 (Trionic): Heater Plates

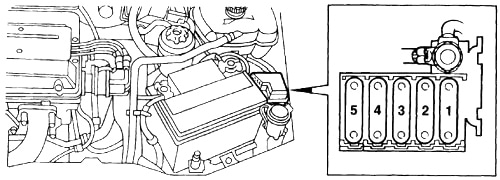

Fusible Link Block

No.	A	Circuits
1	60	Power Supply for Fuses: 1, 4, 11, 13, 17, 23, 24, 25, 26 & 34
2	60	Power Supply for Fuses: 2, 5, 10, 12, 16, 27, 28, 33 & 35
3	60	Power Supply for Ignition Switch Fuse 20
4	60	Power Supply for Ignition Switch Fuse 21
5	60	Power Supply for Cabriolet Hood Control System

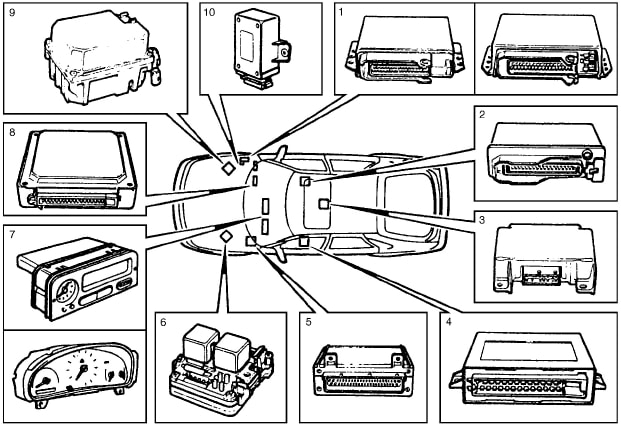

’94 –>

1. Engine Control Module (ECM)
2. Traction Control System (TCS) Control Module
3. Air Bag Control Module
4. Anti-Theft Control Module
5. Integrated Central Electronics (ICE) Control Module
6. ABS Control Module
7. Main Instrument Display & Saab Information Display (SID) Unit
8. Transmission Control Module (TCM)
9. Cruise Control Module
10. Central Lockin Control Module

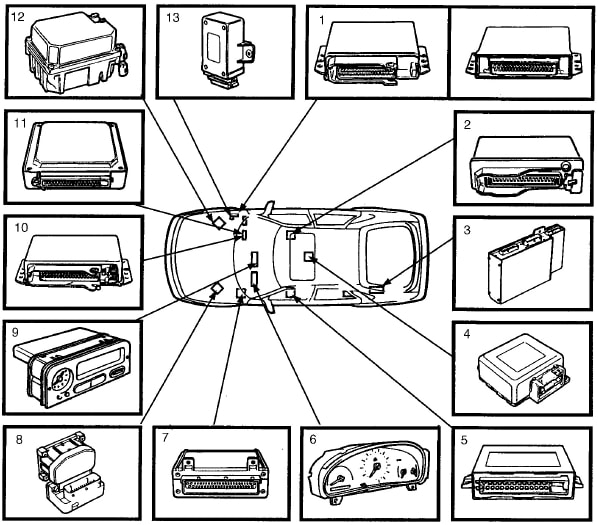

–> ’98

1. Engine Control Module (ECM)
2. Traction Control System (TCS) Control Module
3. TSAS Control Module
4. Air Bag Control Module
5. Anti-Theft Control Module
6. Main Instrument Display
7. Integrated Central Electronics (ICE) Control Module
8. ABS Control Module
9. Saab Information Display (SID) Unit
10. Sensonioc Control Module
11. Transmission Control Module (TCM)
12. Cruise Control Module
13. Central Lockin Control Module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
