Seat Ibiza (1993 – 2002) – fuse box diagram

Year of production: 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002

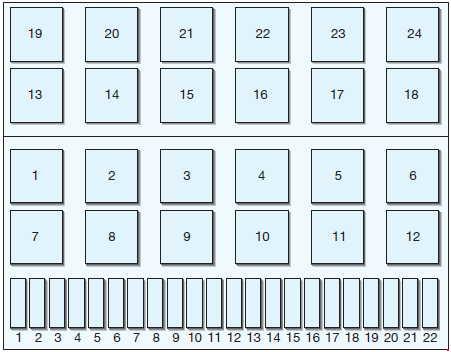

Layout of fuses

Number	Ampers	Fused function
1	10	LH dip beam and adjuster
2	10	RH dip beam and adjuster
3	10	Number plate light
4	15	Rear screen wiper
5	15	Windscreen wash/wipe
6	20	Fresh air fan, air conditioning
7	10	RH sidelight and rear light, engine compartment lighting
8	10	LH sidelight and rear light
9	20	Heated mirrors, rear window
10	15	Front, rear fog lamps
11	10	LH main beam, warning lights
12	10	RH main beam
13	10	Horn
14	10	Reversing lights, heated seats
15	10	Engine equipment
16	15	Instrument panel, clock, interior light, lights on buzzer
17	10	Indicators
18	20	Fuel pump, lambda probe, injectors
19	30	Coolant fan unit
20	10	Brake lights
21	15	Central locking, boot light, radio
22	10	Cigarette lighter
Relay
1	—
2	Rear window wash/wipe relay
3	Power supply relay
4	‘X’ contact relay
5	—
6	Hazard warning lights relay
7	Headlight wiper relay
8	Windscreen wash/wipe timer relay
9	Lights on warning buzzer relay
10	Fog lamps relay, or plug bridge
11	Twin tone horn relay, or plug bridge
12	Fuel pump or glow plug relay
13*	—
14*	Central locking, with remote control (160) or relay for 2nd speed of electric fan (80)
15*	Inlet manifold relay (1)
16*	Electric fan 2nd speed
15	Electronic terminal box relay for diesel engine control (144), turbodiesel (166)
16
17*	Diesel glow plug fuse or ABS relay (178)
18*	ABS relay (178) or relay for double light models (145)/(200)
19*	Central locking, with remote control (160)
20*	Electric windows fuse (53)
21*	Engine relay (31)/electric fan 2nd speed (53)
22*	Automatic transmission relay (150)
23*	Diesel glow plug relay or ABS fuse
24*	EDS relay (79) or Automatic transmission relay (150)
* –  these relay positions may vary

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
