Chery Kimo (2007 – 2015) – fuse and relay box diagram

Posted on by admin

Chery Kimo (2007 – 2015) – fuse and relay box diagram

Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

The instrument panel fuse panel

Fuse Box Location

The instrument fuse box is located within the left cover plate of the dashboard.



Fuse Box Diagram

Chery Kimo - fuse and relay box diagram - instrument panel
Chery Kimo – fuse and relay box diagram – instrument panel



Assignment of the fuses in the instrument panel

No.
 A
 Function/component
F1 10 Combined instruments
F2 10 Rear view mirror, brake switch, BCM
F3 10 ABS control
F4 10 Air Bag
F5 – Not used
F6 15 Washer, rear wiper power supply, sunroof control
F7 10 Steering power supply, A/C relay coil
F8 15 Front wiper
F9 15 Cigarette lighter
F10 10 Radio/player control
F11 – Not used
F12 25 Start
F13 10 Diagnosis Access
F14 10 Braking Lamp
F15 20 Audio device
F16 15 Horn, fog lamp
F17 – Not used
F18 10 Clearance lamp, ceiling lamp
F19 15 Alarm switch
F20 10 Lamp switch, instrument
F21 20 Sunroof power supply
F22 20 Rear defroster
Relay
R1 Blower Relay
R2 Steering relay
R3 Front wiper relay

Engine compartment fuse box

Fuse Box Location

The fuse box is located near the front compartment battery.



Fuse Box Diagram

Chery Kimo - fuse and relay box diagram - engine compartment
Chery Kimo – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

No.
 A
 Function/component
SF1 30 Fan. high speed
SF2 30 BCM
SF3 30 A/C
SF4 40 Instrument electric
SF5 30 ABS
SF6 30 ABS
EF1 20 Fan. low speed
EF2 15 Front fog lamp
EF3 10 ECU
EF4 15 Fuel pump
EF5 30 Primary relay
EF6 10 Compressor
EF7 15 Oxygen sensor
EF8 – Not used
EF9 15 Ignition coil
EF10 10 Backup lamp
EF11 10 Right position lamp
EF12 10 Left position lamp
EF13 10 Right high beam
EF14 10 Left high beam
EF15 10 Right low beam
EF16 10 Left low beam
EF17 10 Spare
EF18 10 Spare
EF19 10 Spare
EF20 10 Spare
Relay
R1 Front Fog Lamp Relay
R2 Fan High Speed Relay
R3 Fan Low Speed Relay
R4 Low Beam Relay
R5 Compressor
R6 High Beam Relay
R7 Main relay
R8 Electric Fuel Pump

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chery E3 (A19; 2013 – 2015) – fuse and relay box diagram

Posted on by admin

Chery E3 (A19; 2013 – 2015) – fuse and relay box diagram

Year of production: 2013, 2014, 2015



Passenger Compartment Fuse Panel

Fuse Box Location

Instrument panel fuse and relay box is located on the lower left side of instrument panel.

Chery E3 - fuse and relay box location - passenger compartment
Chery E3 – fuse and relay box location – passenger compartment



Fuse Box Diagram

Chery E3 - fuse and relay box diagram - passenger compartment
Chery E3 – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the instrument panel

№ Description
RF01 Instrument Cluster
RF02 Airbag
RF03 Diagnosis / Radar / A/C Control Panel / BCM
RF04 ECU
RF05 ABS
RF06 TCU (If equipped)
RF07 Front Wiper
RF08 Front Washer
RF09 Power Outside Rear View Mirror
RF10 –
RF11 –
RF12 –
RF14 –
RF15 –
RF16 Audio System / Sunroof Switch (If equipped)/ Blower Relay Coil / BCM
RF17 Cigarette Lighter
RF18 –
RF19 TCU (If equipped)
RF20 Sunroof (If equipped)
RF21 Key in Switch / Diagnosis / Stop Switch / lgnition Switch
RF22 Rear Fog Light
RF23 RF23
RF24 Position Switch (If equipped)
RF25 A/C Control Panel
RF26 Rear View Mirror Heating (If equipped)

BCM Fuse Box

It is located on lower side of instrument panel.

Chery E3 - fuse and relay box diagram - BCM fuse box
Chery E3 – fuse and relay box diagram – BCM fuse box



BCM fuse box

№ Description
1 Reserve
2 Rear Left Lifter / Rear Right Lifter
3 Reserve
4 High Pitched Horn / Low Pitched Horn
5 Dome Light / Front Left Map Light / Front Right Map Light / Key Light
6 Reserve
7 Trunk Lock / Door Lock Motor
8 Front Left Position Light / Rear Left Position Light
9 Front Right Position Light / Rear Right Position Light / Left License Plate Light / Right License Plate Light
10 Reserve
11 Reserve
12 Front Left Lifter / Front Right Lifter

Engine Compartment Fuse Box

Fuse Box Location

The fuse box is located on the left side of engine compartment and the rear side of front left combination light.

Chery E3 - fuse and relay box location - engine compartment
Chery E3 – fuse and relay box location – engine compartment



Fuse Box Diagram

Chery E3 - fuse and relay box diagram - engine compartment
Chery E3 – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Description
EF01 Left Headlight High Beam
EF02 Right Headlight High Beam
EF03 Left Headlight Low Beam
EF04 Right Headlight Low Beam
EF05 Instrument Panel Fuse and Relay Box
EF06 ABS Pump
EF07 Blower
EF08 Reserve
EF09 Ignition Switch
EF10 Reserve
EF12 BCM
EF13 Starter
EF14 Reserve
EF15 Upstream/Downstream Oxygen Sensor
EF16 Ignition Coil
EF17 ECU EMS
EF18 Canister / Fuel Pump / High-speed Fan Relay / Low-speed Fan Relay Coil
EF20 Injector
EF21 Fuel Pump
EF22 High-speed Fan
EF23 Low-speed Fan
EF24 A/C
EF25 Reserve
EF26 Reserve
EF28 Reserve
EF31 Front Fog Light
EF32 Reserve
EF33 Instrument Cluster / Audio System
EF34 Reserve
EF35 ECU

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chery Bonus 3 (A19; 2013 – 2015) – fuse and relay box diagram

Posted on by admin

Chery Bonus 3 (A19; 2013 – 2015) – fuse and relay box diagram

Year of production: 2013, 2014, 2015



Passenger Compartment Fuse Panel

Fuse Box Location

Instrument panel fuse and relay box is located on the lower left side of instrument panel.

Chery Bonus 3 - fuse and relay box location - passenger compartment
Chery Bonus 3 – fuse and relay box location – passenger compartment

Fuse Box Diagram

Chery Bonus 3 - fuse and relay box diagram - passenger compartment
Chery Bonus 3 – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the instrument panel

№ Description
RF01 Instrument Cluster
RF02 Airbag
RF03 Diagnosis / Radar / A/C Control Panel / BCM
RF04 ECU
RF05 ABS
RF06 TCU (If equipped)
RF07 Front Wiper
RF08 Front Washer
RF09 Power Outside Rear View Mirror
RF10 –
RF11 –
RF12 –
RF14 –
RF15 –
RF16 Audio System / Sunroof Switch (If equipped)/ Blower Relay Coil / BCM
RF17 Cigarette Lighter
RF18 –
RF19 TCU (If equipped)
RF20 Sunroof (If equipped)
RF21 Key in Switch / Diagnosis / Stop Switch / lgnition Switch
RF22 Rear Fog Light
RF23 RF23
RF24 Position Switch (If equipped)
RF25 A/C Control Panel
RF26 Rear View Mirror Heating (If equipped)

BCM Fuse Box

It is located on lower side of instrument panel.

Chery Bonus 3 - fuse and relay box diagram - BCM fuse box
Chery Bonus 3 – fuse and relay box diagram – BCM fuse box



BCM fuse box

№ Description
1 Reserve
2 Rear Left Lifter / Rear Right Lifter
3 Reserve
4 High Pitched Horn / Low Pitched Horn
5 Dome Light / Front Left Map Light / Front Right Map Light / Key Light
6 Reserve
7 Trunk Lock / Door Lock Motor
8 Front Left Position Light / Rear Left Position Light
9 Front Right Position Light / Rear Right Position Light / Left License Plate Light / Right License Plate Light
10 Reserve
11 Reserve
12 Front Left Lifter / Front Right Lifter

Engine Compartment Fuse Box

Fuse Box Location

The fuse box is located on the left side of engine compartment and the rear side of front left combination light.

Chery Bonus 3 - fuse and relay box location - engine compartment
Chery Bonus 3 – fuse and relay box location – engine compartment



Fuse Box Diagram

Chery Bonus 3 - fuse and relay box diagram - engine compartment
Chery Bonus 3 – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Description
EF01 Left Headlight High Beam
EF02 Right Headlight High Beam
EF03 Left Headlight Low Beam
EF04 Right Headlight Low Beam
EF05 Instrument Panel Fuse and Relay Box
EF06 ABS Pump
EF07 Blower
EF08 Reserve
EF09 Ignition Switch
EF10 Reserve
EF12 BCM
EF13 Starter
EF14 Reserve
EF15 Upstream/Downstream Oxygen Sensor
EF16 Ignition Coil
EF17 ECU EMS
EF18 Canister / Fuel Pump / High-speed Fan Relay / Low-speed Fan Relay Coil
EF20 Injector
EF21 Fuel Pump
EF22 High-speed Fan
EF23 Low-speed Fan
EF24 A/C
EF25 Reserve
EF26 Reserve
EF28 Reserve
EF31 Front Fog Light
EF32 Reserve
EF33 Instrument Cluster / Audio System
EF34 Reserve
EF35 ECU

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chery Tiggo 7 (T15; 2016 – 2020) – fuse and relay box diagram

Posted on by admin

Chery Tiggo 7 (T15; 2016 – 2020) – fuse and relay box diagram

Year of production: 2016, 2017, 2018, 2019, 2020



Passenger Compartment Fuse Panel

Fuse Box Location

Instrument panel fuse and relay box is located on the lower left side of instrument panel.

Chery Tiggo 7 - fuse and relay box location - passenger compartment
Chery Tiggo 7 – fuse and relay box location – passenger compartment



Fuse Box Diagram

Chery Tiggo 7 - fuse and relay box diagram - passenger compartment
Chery Tiggo 7 – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the instrument panel

№ Description
RF01 BCM
RF02 –
RF03 Steering Wheel Rotation Angle Sensor, EPS
RF04 Main Blind Spot Monitor Radar, Auxiliary Blind Spot Monitor Radar
RF05 Airbag Module
RF06 –
RF07 A/C Wire Harness Interface, Audio Head Unit, Automatic A/C Panel, Headlight Adjustment Switch, DCT Shift Mechanism
RF08 –
RF09 A/C Wire Harness Interface, Audio Head Unit, Audio Head Unit, Automatic A/C Panel
RF10 Instrument Cluster, Rain Sensor
RF11 –
RF12 –
RF13 –
RF14 –
RF15 Around View Monitor
RF16 –
RF17 –
RF18 A/C Panel, Left/Right Outside Rear View Mirror, A/C Wire Harness Interface
RF19 –
RF20 Power Supply of Blower Relay Output Terminal
RF21 –
RF22 –
RF23 –
RF24 Power Supply of Rear DEF Relay Output Terminal
RF25 –
RF26 Mirror Adjustment Switch, BCM, Sunroof
RF27 Cigarette Lighter
RF28 –

Engine Compartment Fuse Box

Fuse Box Location

The fuse box is located on the left side of engine compartment and the rear side of left headlight.

Chery Tiggo 7 - fuse and relay box location - engine compartment
Chery Tiggo 7 – fuse and relay box location – engine compartment



Fuse Box Diagram

Chery Tiggo 7 - fuse and relay box diagram - engine compartment
Chery Tiggo 7 – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Description
SB01 Reserve
SB02 ACC
SB03 Starter/drive chain
SB04 TCU/DCT
SB05 BCM 2
SB06 BCM 1
SB07 ESP/ABS
SB08 EPB
SB09 ACM/EPB
SB10 ESP/ABS
SB11 Seat adjustment SEAT
EF01 Vacuum pump
EF02 Oxygen sensor
EF03 Ignition coil 3
EF04 ECU solenoid valve
EF05 PPD& HVH
EF06 Reserve
EF07 Right headlight high beam
EF08 Left headlight low beam
EF09 Reserve
EF10 ECU & fan controller with hybrid system
EF11 PEPS
EF12 LT & PTC water pump
EF13 ECU & TCU brake switch 15+ Sreversing sensor & IPU with hybridsystem
EF14 Inner mirror & A/C pressure switch& reversing radar
EF15 PEPS & 4WD
EF16 Electronic oil pump
EF17 Reserve
EF18 Back-up light
EF19 Alternator excitation
EF20 Injector
EF21 Reserve
EF22 Water pump
EF23 POD & PPD & EAC
EF24 Horn
EF25 Left headlight high beam
EF26 Right headlight low beam
EF27 Front fog light
EF28 ESP & ABS & ACM
EF29 Fuel pump
EF30 BCM 6
EF31 IGN 1
EF32 Brake switch & PEPS & DOT 30+
EF33 ACM
EF34 BCM 5
EF35 BCM 3
EF36 Reserve
EF37 Spare power 2
EF38 ECU & TCU 30+
EF39 Wiper
EF40 4WD & IPU
EF41 Seat heating
EF42 Air conditioning compressor
EF43 Reserve
EF44 BCM 4
EF45 Sunroof
EF46 Marine insurance
EF51 –



Power fuses

Fuse Box Diagram

Chery Tiggo 7 - fuse and relay box diagram - engine compartment (power fuses)
Chery Tiggo 7 – fuse and relay box diagram – engine compartment (power fuses)



Assignment of the power fuses

№ Amps Description
1 – –
2 60A Instrument Panel Fuse and Relay Box
3 – –
4 80A EPS
5 40A Low-speed Cooling Fan
6 – –
7 150A Alternator
8 50A High-speed Cooling Fan
9 – –

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chery Tiggo 8 (T18; 2017 – 2020) – fuse and relay box diagram

Posted on by admin

Chery Tiggo 8 (T18; 2017 – 2020) – fuse and relay box diagram

Year of production: 2017, 2018, 2019, 2020



The Chery Tiggo 8 PRO, a mid-size crossover, has been available since 2020 and continues to be produced. In this guide, you’ll find fuse box diagrams for the 2020, 2021, 2022, and 2023 models. It also provides information on the location of the fuse panels inside the vehicle, along with details about the fuse assignments (fuse layout) and relays.



Passenger Compartment Fuse Panel

Fuse Box Location

The fuses are located on the lower left side of instrument panel.

Chery Tiggo 8 PRO (2020 - 2023) - fuse and relay box location - passenger compartment
Chery Tiggo 8 PRO (2020 – 2023) – fuse and relay box location – passenger compartment



Fuse Box Diagrams

Chery Tiggo 8 PRO (2020 - 2023) - fuse and relay box diagram - passenger compartment (T1D)
Chery Tiggo 8 PRO (2020 – 2023) – fuse and relay box diagram – passenger compartment (T1D)



Assignment of the fuses in the instrument panel

№ Description
RF01 BCM & Instrument Cluster & Gateway
RF02 –
RF03 EPS & Angle Sensor
RF04 Multi-View Camera System
RF05 Airbag Module
RF06 –
RF07 A/C Control Panel & Radio Control Module & Head Lamps Adjust Sw Power & TBOX & Shift Lever (DCT)
RF08 –
RF09 A/C Control Panel & Radio Contrl Module & TBOX & DCDC
RF10 Instrument Cluster
RF11 –
RF12 –
RF13 –
RF14 Tachograph
RF15 Defrost Relay & EPB & Panoramic Image Module & OBD Diagnostic Interface & Sub-instrumentation Switch & Kick Wire Sensor
RF16 –
RF17 –
RF18 A/C Control Panel & Defrost Work Feedback
RF19 –
RF20 Rry01 Blower RLY
RF21 –
RF22 –
RF23 –
RF24 Rry03 Defrost RLY
RF25 –
RF26 BCM & Radio & Power Rear View Mirror Switch
RF27 Cigarette Lighter
RF28 Spare Power

Engine Compartment Fuse Box

Fuse Box Location

The fuse box is located on the left side of engine compartment and the rear side of left headlight.

Chery Tiggo 8 (T18; 2017 - 2020) - fuse and relay box location - engine compartment
Chery Tiggo 8 (T18; 2017 – 2020) – fuse and relay box location – engine compartment



Fuse Box Diagram

Chery Tiggo 8 (T18; 2017 - 2020) - fuse and relay box diagram - engine compartment
Chery Tiggo 8 (T18; 2017 – 2020) – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Description
SB01 ISS 1
SB02 ACC
SB03 Start control
SB04 Rear Blower
SB05 BCM 2
SB06 BCM 1
SB07 ABS/EPS
SB08 ESP (EPB)
SB09 DCT
SB10 PLG
SB11 Seat adjustment
EF01 ERLY 01 vacuum pump RLY
EF02 Lambda sensor heating upstream & lambda sensor heating downstream
EF03 Ignition coil
EF04 ECU solenoid valve
EF05 –
EF06 AGS
EF07 –
EF08 Left Low beam power
EF09 –
EF10 ERLY 02 ECU RLY
EF11 PEPS
EF12 –
EF13 ECU & DCT & brake SW
EF14 AC & Sunroof & Reverse Radar Module
EF15 PEPS & DC-DC (ISS)
EF16 Rear Blower
EF17 –
EF18 –
EF19 –
EF20 Injector Cyl1.2.3.4
EF21 ISS 2
EF22 –
EF23 –
EF24 ERLY 20 High beam RLY
EF25 –
EF26 Right Low beam power
EF27 ERLY 12 horn RLY
EF28 ESP (EPB)
EF29 ERLY13 fuel pump RLY
EF30 BCM
EF31 IGN (a) & IGN (b)
EF32 PEPS & brake SW
EF33 PLG
EF34 BCM
EF35 BCM
EF36 –
EF37 Spare Power
EF38 ECU & DCT
EF39 Wiper RLY
EF40 –
EF41 Seat Heater
EF42 ERLY 19 AC clutch RLY
EF43 –
EF44 BCM
EF45 Sunroof
EF46 30IP (b) & DC-DC (ISS)
EF47 IP Fuse Box power
EF48 EPS power
EF49 ALT power
EF52 ERLY 17 Low Fan RLY
EF53 ERLY 18 High Fan RLY



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chery Tiggo 5 (T21; 2013 – 2015) – fuse and relay box diagram

Posted on by admin

Chery Tiggo 5 (T21; 2013 – 2015) – fuse and relay box diagram

Year of production: 2013, 2014, 2015



Passenger Compartment Fuse Panel

Fuse Box A

Fuse Box Location

Instrument panel fuse and relay box A is located on the lower left side of instrument panel.

Chery Tiggo 5 - fuse and relay box location - passenger compartment
Chery Tiggo 5 – fuse and relay box location – passenger compartment (Box A)

Fuse Box Diagram

Chery Tiggo 5 - fuse and relay box diagram - passenger compartment
Chery Tiggo 5 – fuse and relay box diagram – passenger compartment (box A)



Assignment of the fuses in the instrument panel fuse and relay box A

№ Description
RF01 Reversing Radar
RF02 SPORT Switch Backlight (for CVT Model) / Headlight Leveling Dial
RF03 Back-up Light Relay Coil (for CVT Model)
RF04 –
RF05 –
RF06 Yaw Sensor / Steering Angle Sensor / Instrument Cluster / Front Passenger Seat Belt Reminder Light / Diagnosis Connector / Engine Immobilizer / ESP Indication
RF07 BCM/EPS/PEPS
RF08 Airbag
RF09 Brake Switch
RF10 A/C Control Panel
RF11 –
RF12 –
RF13 Relay Coils of Rear Defroster, Blower, Seat Heater / Audio System / BCM
RF14 Cigarette Lighter
RF15 Outside Rear View Mirror Adjustment Switch / Sunroof Switch
RF16 –
RF17 –
RF18 –
RF19 –
RF20 –
RF21 Automatic A/C Control Panel
RF22 Audio System
RF23 Instrument Cluster / Diagnosis Connector
RF24 Key Switch
RF25 –
RF26 –

Fuse Box B

Fuse Box Location

Instrument panel fuse and relay box B is located on the lower right side of instrument panel.

Chery Tiggo 5 - fuse and relay box location - passenger compartment (box B)
Chery Tiggo 5 – fuse and relay box location – passenger compartment (box B)



Fuse Box Diagram

Chery Tiggo 5 - fuse and relay box diagram - passenger compartment (box B)
Chery Tiggo 5 – fuse and relay box diagram – passenger compartment (box B)



Assignment of the fuses in the instrument panel fuse and relay box B

№ Description
RF27 Spare
RF28 –
RF29 –
RF30 IP Fuse and Relay Box A
RF31 –
RF32 Power Seat Adjustment
RF33 Rear Defroster
RF34 Left Seat Heater
RF35 Brake Light Switch
RF36 Reserve
RF37 Right Seat Heater
RF38 –
RF39 –
RF40 Right Window Jam Protection
RF41 Left Window Jam Protection
RF42 Outside Rear View Mirror Heating / Defrosting Feedback Signal
RF43 –
RF44 –
RF45 Backup Power Supply
RF46 Ignition Switch
RF47 PEPS
RF48 –
RF49 Sunroof
RF50 –
RF51 –



Engine Compartment Fuse Panel

Fuse Box Location

Engine compartment fuse and relay box is located on the left side of engine compartment and the rear side of left headlight.

Chery Tiggo 5 - fuse and relay box location - engine compartment
Chery Tiggo 5 – fuse and relay box location – engine compartment



Fuse Box Diagram

Chery Tiggo 5 - fuse and relay box diagram - engine compartment
Chery Tiggo 5 – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Description
EF01 Right Headlight High Beam
EF02 Left Headlight High Beam
EF03 Right Headlight Low Beam
EF04 Left Headlight Low Beam
EF05 Front Fog Light
EF06 –
EF07 Ignition Coil
EF08 Injector / Camshaft Timing
EF09 –
EF10 A/C Compressor
EF11 –
EF12 –
EF13 –
EF14 –
EF15 IGN2
EF16 –
EF17 ECM/TCU (for CVT Model)
EF18 Spare
EF19 TCU (for CVT Model)/ECM
EF20 Spare
EF21 –
EF22 –
EF23 –
EF24 –
EF25 Horn
EF26 Spare
EF27 Air Flow Meter / Canister
EF28 Back-up Light Switch (for MT Model)
EF29 Alternator Excitation
EF30 Back-up Light / Reversing Radar (for CVT Model)
EF31 –
EF32 –
EF33 –
EF34 IGN Power Supply
EF35 Fuel Pump
EF36 ABS/ESP
EF37 Spare
EF38 Fuel Pump Relay Coil / Fan Relay Coil
EF39 Oxygen Sensor
EF40 ECM
EF41 Starter
EF42 –
EF43 IGN1
EF44 –
EF45 –
EF46 TCU (for CVT Model)
EF47 ABS/ESP
EF48 ACC
EF38 ECU & DCT 30+
EF39 Wiper RLY
EF40 –
EF41 Seat Heater
EF42 A/C clutch
EF43 –
EF44 BCM 4
EF45 Sunroof
EF46 Memory Fuse
EF47 IP Fuse Box power
EF48 EPS power
EF49 ALT power
EF50 Cooling Fan
EF52 FW Heater 2
EF53 FW Heater 1

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Enclave (2018 – 2021) – fuse and relay box diagram

Posted on by admin

Buick Enclave (2018 – 2021) – fuse and relay box diagram

Year of production: 2018, 2019, 2020, 2021



The Buick Enclave from model years 2018 to 2021 is part of the second generation of this midsize luxury SUV, which saw a significant redesign in 2018.

Passenger compartment

Fuse Box Location

Buick Enclave - fuse and relay box location - passenger compartment
Buick Enclave – fuse and relay box location – passenger compartment



Fuse Box Diagram

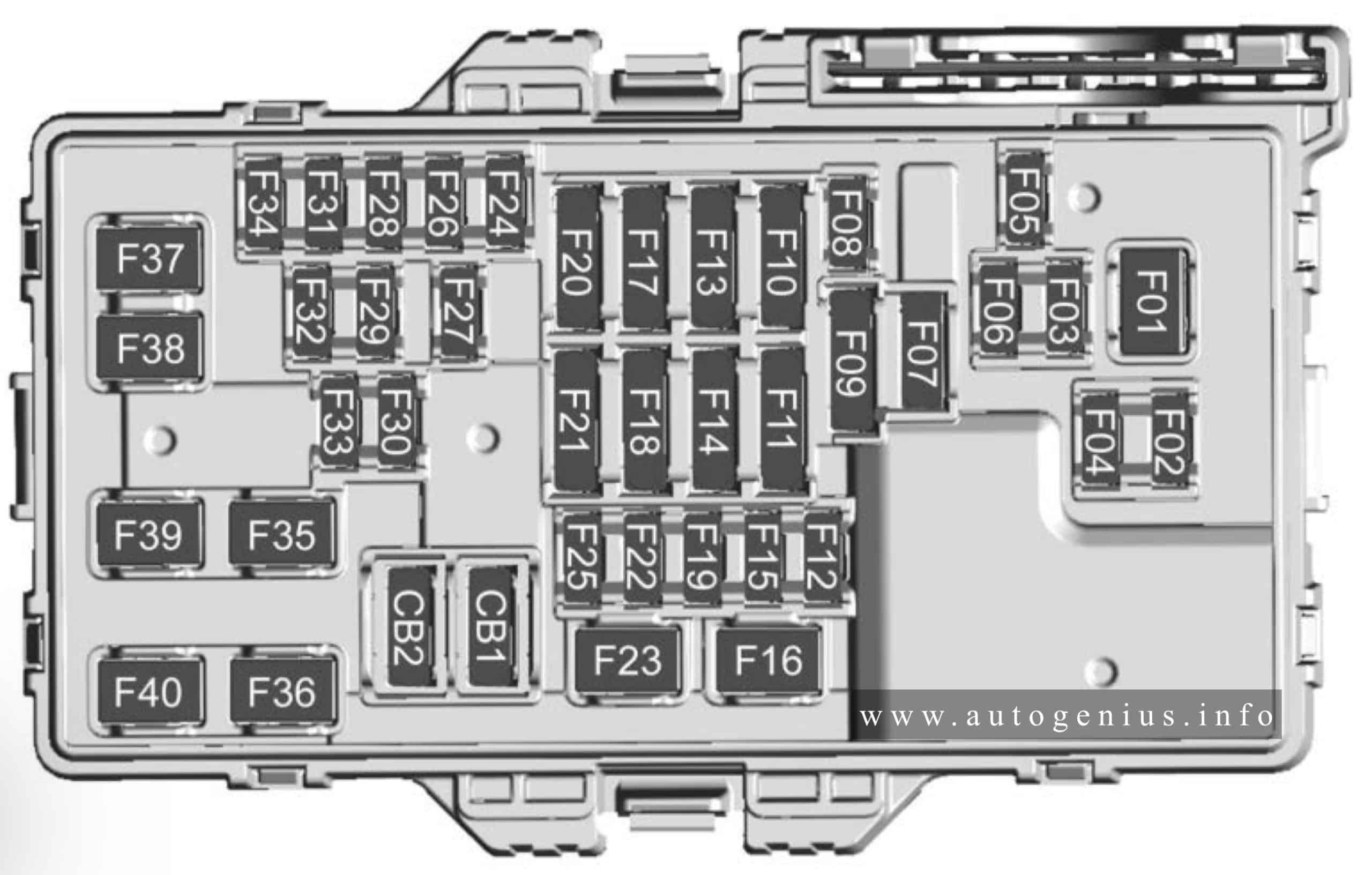

Buick Enclave - fuse and relay box diagram - passenger compartment
Buick Enclave – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment

№ Description
F1 Body control module 6
F2 Diagnostic link
F3 Electric steering column lock
F4 Rear USB port
F5 2021: Rear sunshade / Park/Reverse/Neutral/Drive/Low
F6 Heating, ventilation, and air conditioning
F7 Body control module 3
F8 2021: Adaptive front lighting system
F9 Right front heated seat
F10 Airbag
F11 2018-2020: Electronic precision shift
F12 Amplifier
F13 Body control module 7
F14 Left front heated seat
F15 Not Used
F16 Sunroof
F17 Communication gateway module
F18 2018-2020: Instrument cluster
2021: Instrument cluster / Head-up display
F19 Body control module 1
F20 Wireless charger module
F21 Body control module 4
F22 Infotainment
F23 Body control module 2
F24 2021: Park/Reverse/Neutral/Drive/Low
F25 2018-2020: Park assist
2021: Park assist/Shifter interface board
F26 Communications integration module
F27 Video
F28 Radio/Heating, ventilation, and air conditioning display
F29 Radio
F30 Steering wheel controls
F31 Front blower
F32 DC AC inverter
F33 Driver power seat
F34 Passenger power seat
F35 Feed/Body control module 4
F36 Electric power steering
F37 Power outlet/ Wireless charger/ Accessory
F38 Body control module 8
F39 Steering wheel controls backlighting
F40 Not Used (Circuit Breaker)
F41 Not Used (Circuit Breaker)
F42 Auxiliary power outlet / Lighter



Engine compartment

Fuse Box Location

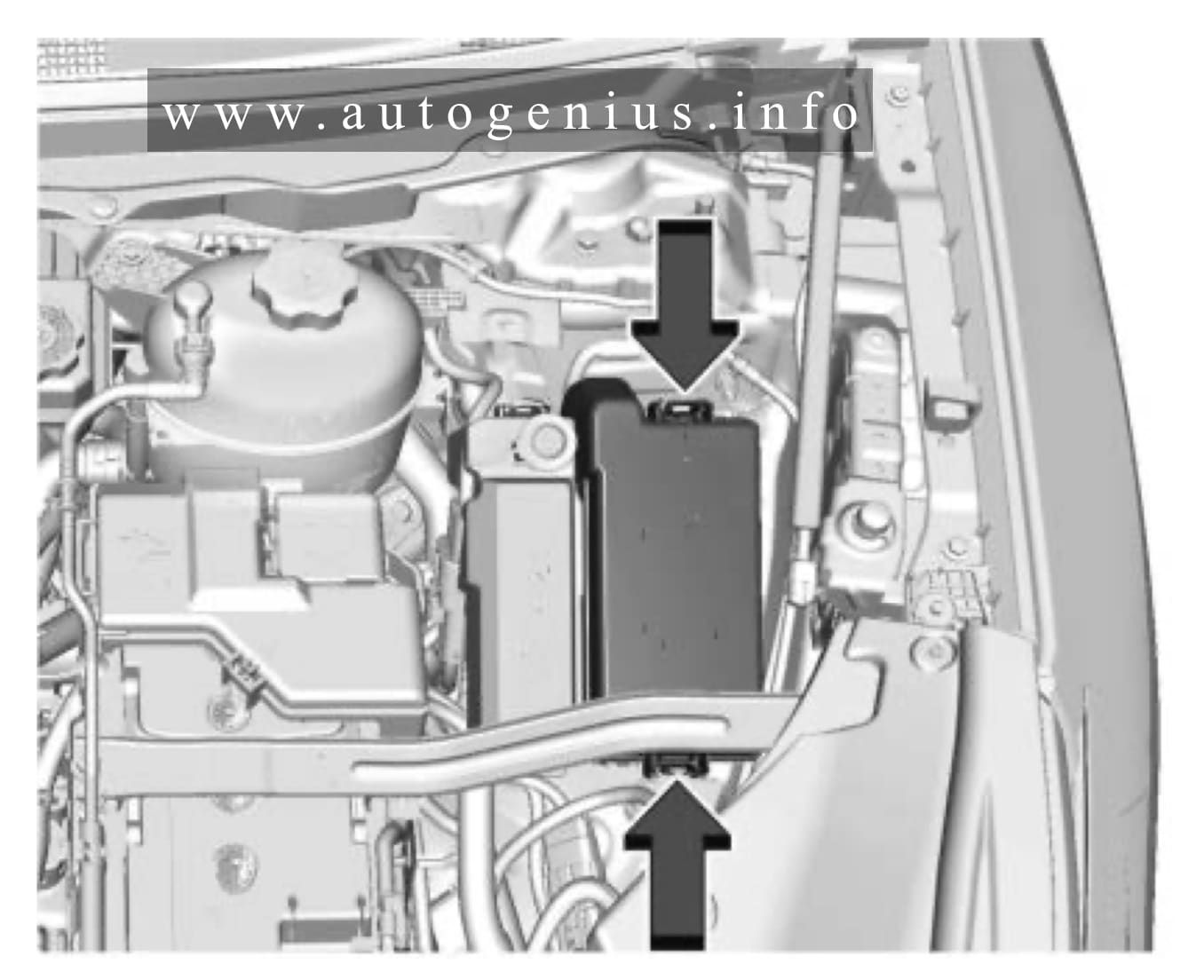

Buick Enclave - fuse and relay box location - engine compartment
Buick Enclave – fuse and relay box location – engine compartment



Fuse Box Diagram

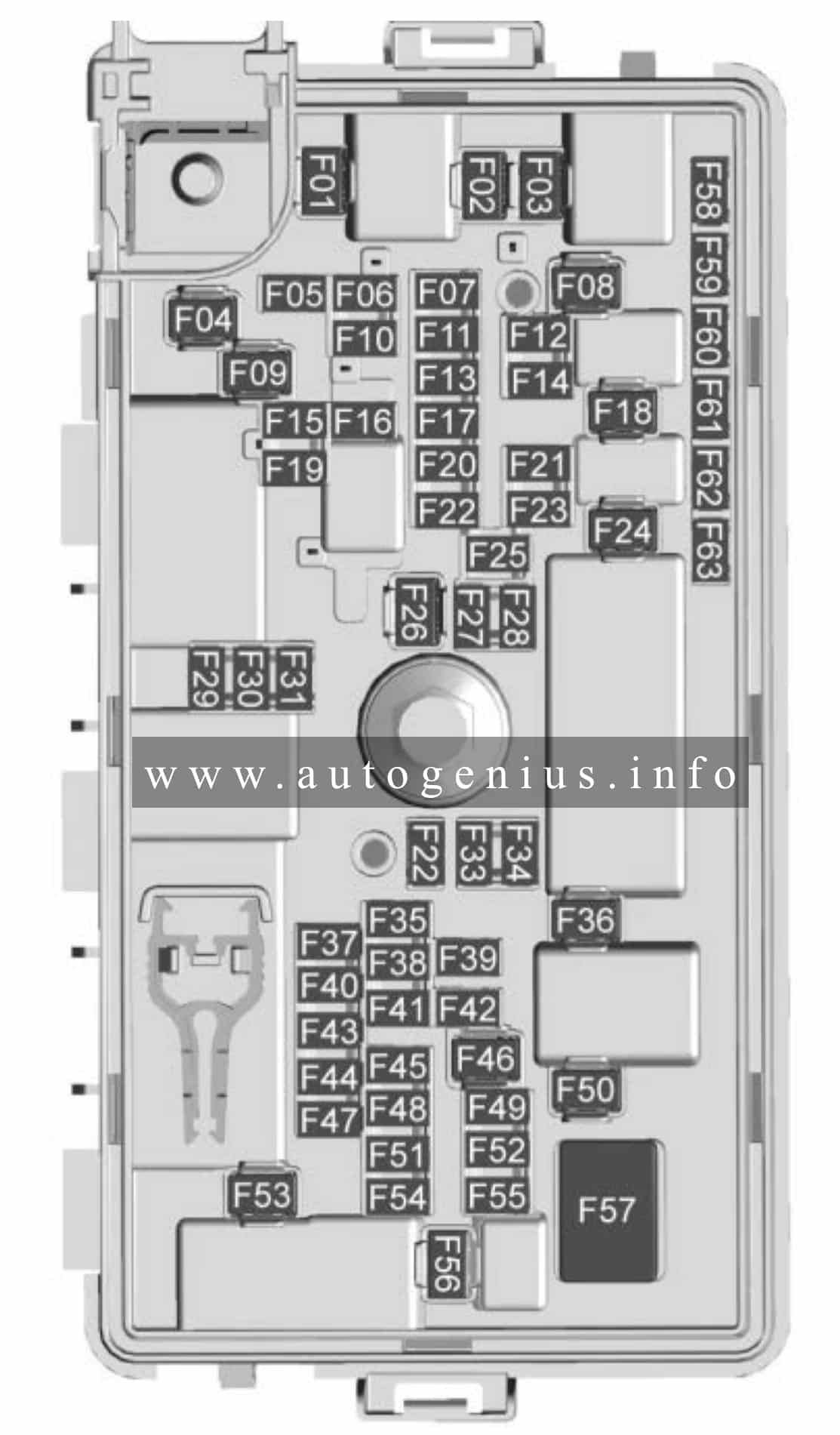

Buick Enclave - fuse and relay box diagram - engine compartment
Buick Enclave – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Description
F1 Antilock brake system pump
F2 Starter 1
F3 DC DC transformer 1
F4 Not Used
F5 DC DC transformer 2
F6 Not Used
F7 Not Used
F8 Not Used
F9 Vacuum pump
F10 Front wiper
F11 Not Used
F12 Not Used
F13 Starter 2
F14 Not Used
F15 Rear wiper
F20 Not Used
F21 Not Used
F22 Electronic brake control module
F23 Parking/Trailer lamps
F24 Right trailer stoplamp/Turn signal lamp
F25 Steering column lock
F26 Not Used
F27 Left trailer stoplamp/Turn signal lamp
F28 Not Used
F29 Not Used
F30 Washer pump
F31 Not Used
F32 Left low-beam headlamp
F33 Front fog lamps
F34 Horn
F35 Not Used
F36 Not Used
F37 Right low-beam headlamp
F38 Automatic headlamp leveling motor
F39 Transmission control module
F40 Left rear bus electrical center/ Ignition
F41 Instrument cluster
F42 Heating, ventilation, and air conditioning
F43 2018-2020: Head-up display
2021: Head-up display/ Reflective light auxiliary display
F44 Communication gateway module/ Run/Crank
F45 Not Used
F46 Not Used
F47 Not Used
F48 Not Used
F49 Interior rearview mirror
F50 2018-2020: Fuel system control module
2021: Fuel system control module / Shifter interface board / Run/Crank
F51 Heated steering wheel
F52 Folding seats switch
F53 2021: Coolant pump
F54 2018-2020: Coolant pump
F55 Air conditioning clutch
F56 2018-2020: Integrated chassis control module
F57 Engine control module/lgnition
F58 Transmission control module/ Ignition
F59 Engine control module battery
F60 Engine control module-even
F61 O2 sensor 1/MAF
F62 Not Used
F63 O2 sensor 2/ Canister/Engine oil/ Turbo
F64 Aeroshutter
F65 Engine control module powertrain 1
F66 Engine control module powertrain 2
F67 Engine control module-odd
F68 Not Used
F69 Not Used
F70 Not Used
F71 Not Used
F72 Not Used
F73 Not Used
F74 Not Used
F75 Not Used
F76 Not Used
F77 Not Used
Relays
K1 Starter 1
K2 Run/Crank
K3 Vacuum pump
K4 Not Used
K5 Air conditioning
K6 2018-2020: Coolant pump
K7 Engine control module
K8 Folding seats
K9 Not Used
K10 Starter 2

Luggage compartment

Fuse Box Location

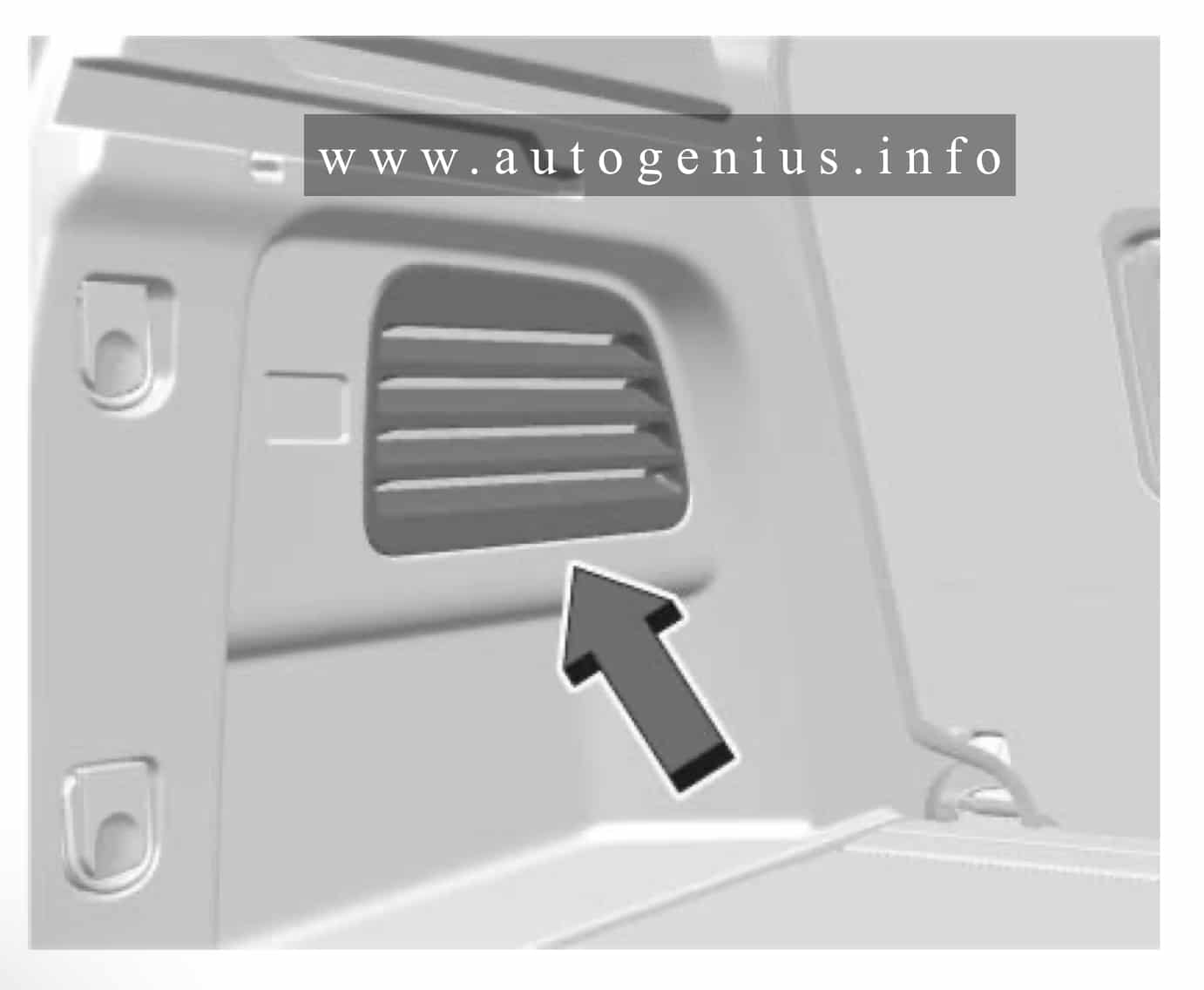

Buick Enclave - fuse and relay box location - luggage compartment
Buick Enclave – fuse and relay box location – luggage compartment



Fuse Box Diagram

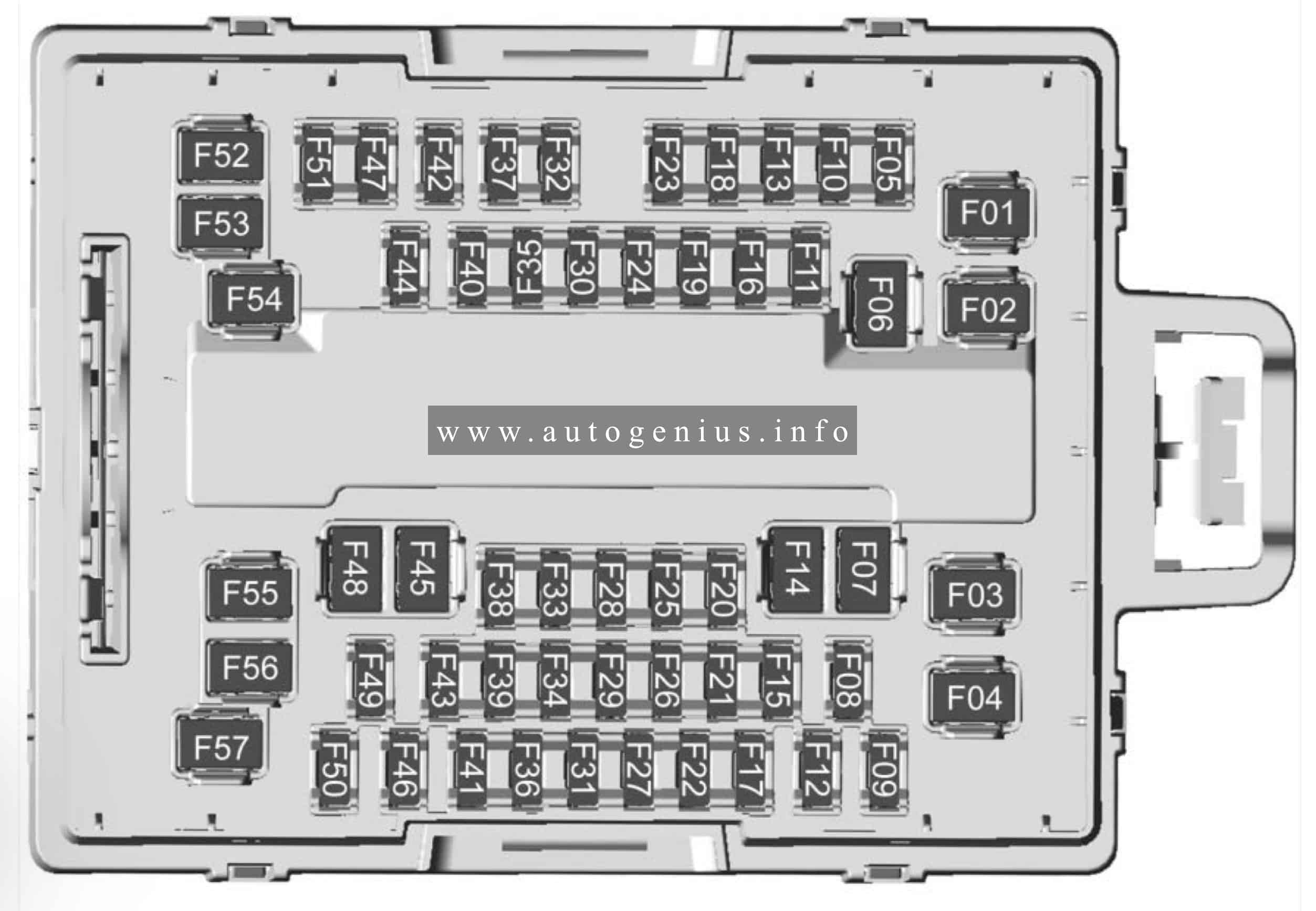

Buick Enclave - fuse and relay box diagram - luggage compartment
Buick Enclave – fuse and relay box diagram – luggage compartment



Assignment of the fuses in the luggage compartment

№ Description
F1 Not Used
F2 Trailer
F3 Folding seats
F4 Rear blower
F5 Rear drive control
F6 Not Used
F7 Right window
F8 Rear defogger
F9 Left window
F10 Not Used
F11 Trailer reverse
F12 USB port/Third row seats
F13 Not Used
F14 Not Used
F15 Not Used
F16 Not Used
F17 Camera
F18 Not Used
F19 2018-2019: Ventilated seats
2020-2021: Ventilated seats / Massage
F24 Lumbar
F25 Not Used
F26 Trailer brake lamps
F27 2018-2019: Not Used
2020-2021: Massage
F28 Passive entry/ Passive start
F29 Not Used
F30 Canister vent
F31 Not Used
F32 Heated mirrors
F33 USB port/Second row seats
F34 Liftgate module
F35 2018-2020: Fuel system control module
2021: Fuel system control module / Fuel tank zone module.
F36 Not Used
F37 Not Used
F38 Window module
F39 Rear closure
F40 Memory seat module
F41 Automatic occupancy sensor
F42 Not Used
F43 Not Used
F44 Not Used
F45 Liftgate motor
F46 Rear heated seats
F47 Not Used
F48 Not Used
F49 Not Used
F50 Not Used
F51 Not Used
F52 Semi-active dampening system module
F53 Not Used
F54 External object calculating remote system/Side blind zone alert
F56 Universal remote system/Overhead console
F57 Hands free closure release
CB1 Not Used (Circuit Breaker)
CB2 Not Used (Circuit Breaker)
CB3 Rear auxiliary power outlet (Circuit Breaker)
Relays
K1 Not Used
K2 Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Cadillac XT4 (2022) – fuse and relay box diagram

Posted on by admin

Cadillac XT4 (2022) – fuse and relay box diagram

Year of production: 2022



Passenger Compartment

Fuse box Location

The fuse box is located on the driver’s side of the instrument panel behind the cover.

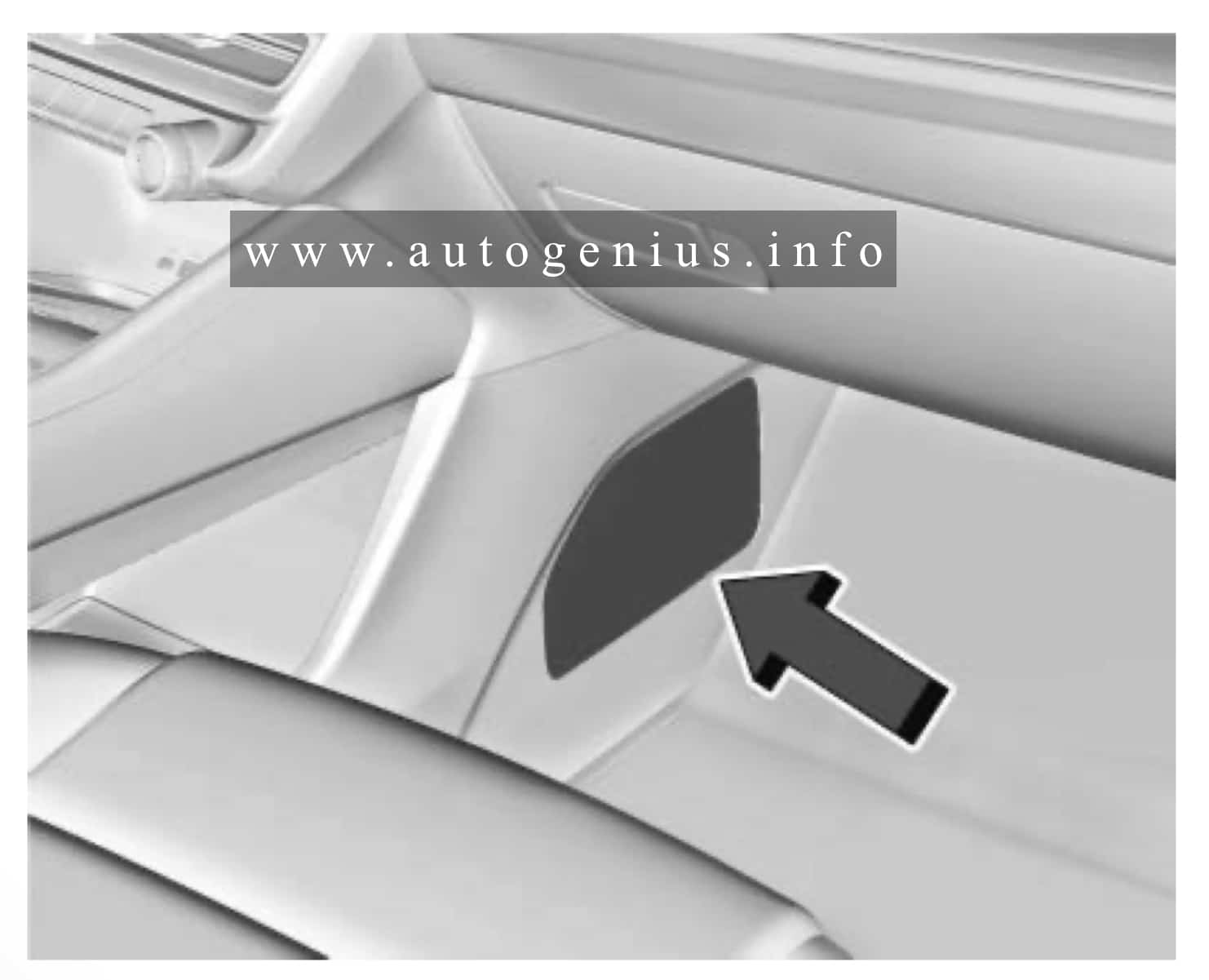

Cadillac XT4 - fuse and relay box location - passenger compartment
Cadillac XT4 – fuse and relay box location – passenger compartment



Fuse Box Diagram

Cadillac XT4 - fuse and relay box diagram - passenger compartment
Cadillac XT4 – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment

№ Usage
F1 Left Power Window
F2 Right Power Window
F3 —
F4 Direct Current to Direct Current Converter 2
F5 Auxiliary Power Outlet – Cargo
F6 Heated Seat Battery 1
F7 Heated Seat Battery 2
F8 Body Control Module 3 – LED Headlamp Low Beam Right Control Signal, Right Front Turn Lamp Control Signal, Left Front Side Marker and Auxiliary Park, Left Rear Tail/Side Marker Control Signal, Left Daytime Running Lamps Control Signal
F9 Electric Park Brake
F10 Body Control Module 2 (Stop/Start) – Interior Lamps Control Signal, Door Handle Puddle Lamp (LED), Left Cornering Lamp, Right Cornering Lamp, Interior Lamps Control Signal, Backup Lamp Supply Voltage, License Plate Lamp Control Signal, Rear Closure Cargo Lamp Control Signal, Center High Mounted Stop Lamp LED Lamp Control Signal
F11 —
F12 —
F13 —
F14 —
F15 Transmission Control Module (Stop/ Start)
F16 Amplifier
F17
F18 Video Processing Module
F19 Power Steering Column
F20 Body Control Module 6 – LED Backlight Control, Interior Lighting Inadvertent Load Control Signal, Fuel Door Lock Control Signal, LED Backlight Control Signal
F21 Body Control Module 4 – LED Headlamp Low Beam Left Control Signal, Right Front Side Marker and Auxiliary Park, Right Rear Tail/ Side Marker Control Signal, Left Rear Stop Lamp Control Signal, Left Rear Stop/Turn Lamp Control Signal, Right DRL Control Signal
F22 Body Control Module 7 – Right Rear Stop Lamp Control Signal, Right Rear Stop/ Turn Lamp Control Signal, Left Front Turn Lamp Control Signal, Right Rear Turn Control Signal
F23 —
F24 Airbag
F25 Data Link Connector
F26 —
F27 —
F28 —
F29 Body Control Module 8 – Internal Driver/Fuel Door Unlock Relay Control Signal, Internal Non-Driver Door Lock Relay Control Signal, Internal All Door Unlock Relay Control Signal
F30 Overhead Console
F31 Steering Wheel Controls
F32 —
F33 Heating Ventilation and Air Conditioning Control Module
F34 Central Gateway Module
F35 Heated Seat Switch/Hazard Switch
F36 Wireless Charger Module/USB Charge Port
F37 —
F38 OnStar
F39 Shifter Interface Board/Center Stack/Head Up Display/ Instrument Panel Cluster/HVAC Display
F40 Long Range Radar Sensor/ Ultrasonic Park Assist Module/Camera Module/External Object Calculating Module/ Side Blind Zone Alert Modules/Front Camera Module
F41 Body Control Module 1 (Stop/Start) – LED Indicator Lighting Control, Accessory LED Control, Run-Start LED Control, Ambient Lighting LED Control 2, Liftgate Latch Motor Control Signal, Rear Wiper Control Signal, High Beam Lamp Control (Direct Drive), Rear Fog LED Lamp Control Signal, Windshield Washer Pump Motor Control Signal, Run/Crank Relay Control Signal, ECM/TCM ACC Wakeup Control Signal, Left Rear Turn Control Signal, Rear Wiper Wash Pump Control Signal, Brake Pedal Apply Signal
F42 Radio
F43 Console Auxiliary Power Outlet (Circuit Breaker)
F44 Front Console Auxiliary Power Outlet
Relay
K1 —
K2 Retained Accessory Power
K3 —
K4 —
K5 —
K5 Not Used



Engine Compartment

Fuse Box Location

The instrument panel fuse block is in the center console between the driver and passenger seats.

Cadillac XT4 - fuse and relay box location - engine compartment
Cadillac XT4 – fuse and relay box location – engine compartment



Fuse Box Diagram

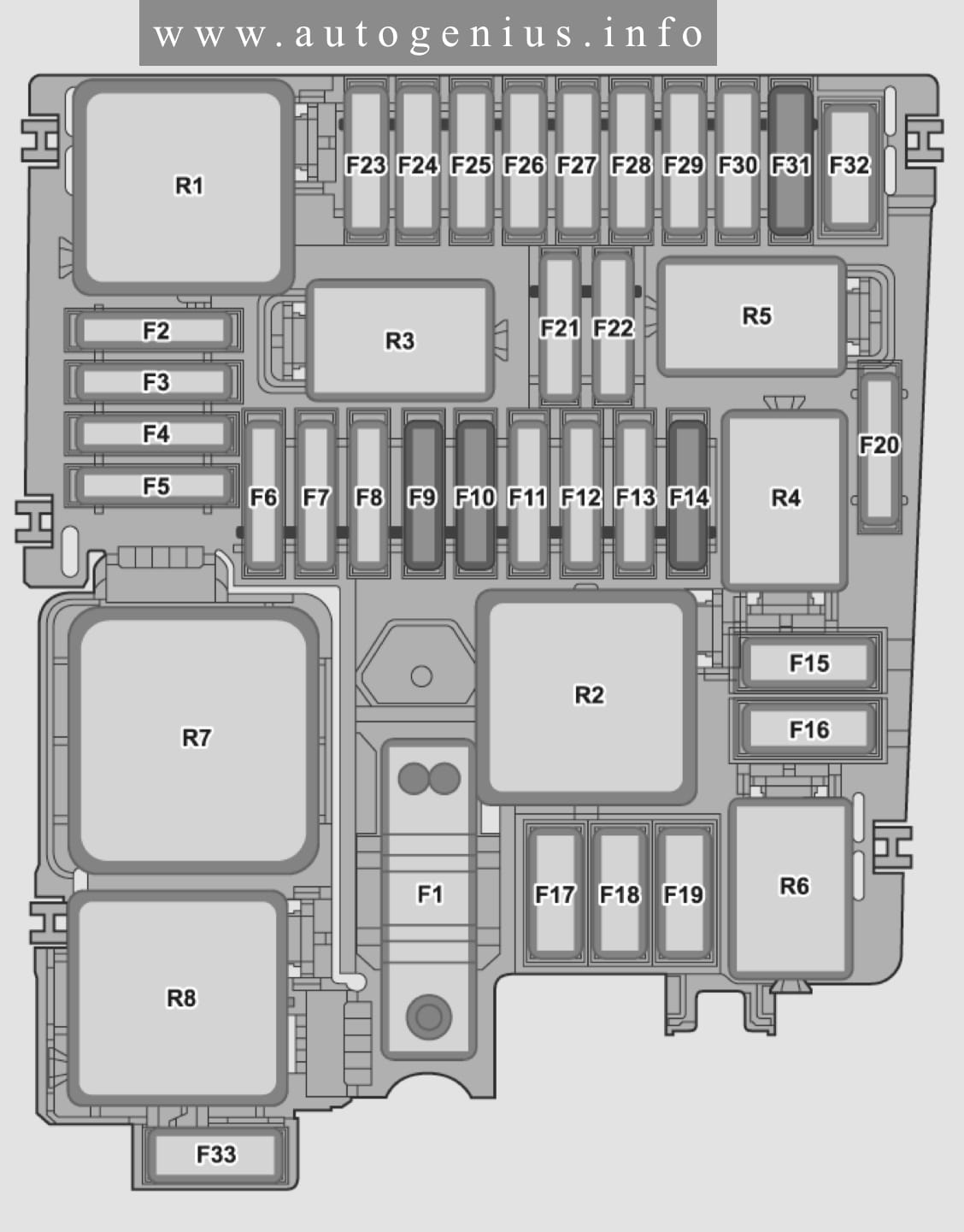

Cadillac XT4 - fuse and relay box diagram - engine compartment
Cadillac XT4 – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Usage
3 Electronic Brake Control Module
5 Not Used
6 Spare
7 Left Trailer Stop/Turn Lamp
8 Memory Seat Module, Driver and Passenger
9 —
10 Semi-active Damping System/Spare
11 Direct Current to Direct Current Converter 1
12 Rear Window Defogger
13 Outside Rear View Mirrors Defogger
14 —
15 Passive Entry Passive Start Module
16 Front Wiper
17 Passenger Power Seat
18 Power Liftgate
19 Driver Power Seat/ Memory Seat Module/ Driver Seat Massage Control
21 Power Sunroof
22 —
23 —
26 Transmission Control Module/Ignition
27 Inside Rear View Mirror, Shifter Interface Board Module Run/Crank, Central Gateway Module Run/Crank, Heating Ventilation and Air Conditioning Control Module Run/Crank ignition 3
28 Rear Wiper
29 —
30 Fuel Tank Zone Module Run/Crank, Direct Current to Direct Current Transformer Run/Crank, Electronic Brake Control Module Run/Crank, Instrument Panel Cluster Run/Crank
32 Rear Drive Control Module 1
33 Front Heated Seat Power 2
34 Liftgate Module / Front Window Switches
35 —
36 Fuel Tank Zone Module
39 Driver Seat Massage / Passenger Seat Massage
40 —
41 —
43 Heated Steering Wheel
44 Front Heated Seat Power Feed 1 / Front Vented Seats/ Rear Heated Seats
46 Engine Control Module Ignition
48 Rear Drive Control Module 2
49 Heating Ventilation and Air Conditioning Control Blower Motor
50 Spare
51 Spare
54 Spare
55 Spare
56 Starter Motor
57 —
58 —
59 High Beam Headlamps
60 —
61 Spare
62 Spare
63 Spare
65 Air Conditioning Clutch
67 Spare
68 Spare
69 —
70 Trailer Park Lamp
—
72 Starter Pinion
75 Engine Control Module Main
76 Powertrain Off Engine, Engine Control Module Power Train Ignition 1
78 Horn
79 Front and Rear Washer Pump
81 Engine Control Module Battery/Spare
82 —
83 Ignition Coils
84 Canister Purge Solenoid / Step Cam Exhaust Solenoid Cylinder 2 and 3 / Step Cam Intake Cylinder Solenoids / Turbo Bypass Solenoid / Oxygen Sensor (Pre) / O2 Heater / Oxygen Heated Sensor / Mass Airflow / Inlet Air Temperature / Throttle Inlet Absolute Pressure / Coolant Flow Control Valve
85 Shunt
86 Shunt
87 —
88 Aeroshutter
89 —
92 —
93 Canister Vent Solenoid
95 —
96 —
99 —
Relays
20 Rear Defogger / Outside Rear View Mirrors Defogger
25 Front Wiper Control
31 Run/ Crank
37 Front Wiper Speed
42 —
64 STRTR MTR,
66 Powertrain
71 Trailer Park Lamps
73 Air Conditioning Controls
80 Starter Pinion
90 —
94 —
98 —

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.



Cadillac XT4 (2019 – 2021) – fuse and relay box diagram

Posted on by admin

Cadillac XT4 (2019 – 2021) – fuse and relay box diagram

Year of production: 2019, 2020, 2021



Passenger Compartment

Fuse box Location

The fuse box is located on the driver’s side of the instrument panel behind the cover.

Cadillac XT4 - fuse and relay box location - passenger compartment
Cadillac XT4 – fuse and relay box location – passenger compartment



Fuse Box Diagram

Cadillac XT4 - fuse and relay box diagram - passenger compartment
Cadillac XT4 – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment

№ Usage
F1 Left power window
F2 Right power window
F3 Not Used
F4 DC DC battery 2/1
F5 Auxiliary power outlet – cargo
F6 Heated seat battery 1
F7 Heated seat battery 2
F8 Body control module 3
F9 Electric parking brake switch
F10 Body control module 2 (stop/start)
F11 Not Used
F12 Not Used
F13 Not Used
F14 Not Used
F15 Transmission control module (stop/start)
F16 Amplifier
F17 Not Used
F18 Video processing module
F19 Power steering column
F20 Body control module 6
F21 Body control module 4
F22 Body control module 7
F23 Electric steering column lock
F24 Airbag
F25 Data link connector
F26 Not Used
F27 Not Used
F28 Not Used
F29 Body control module 8
F30 Overhead console
F31 Steering wheel control
F32 Not Used
F33 Heating ventilation/Air conditioning
F34 Central gateway module (CGM)
F35 Heated switch
F36 Charger
F37 Auxiliary power outlet – front
F38 OnStar
F39 Display
F40 Obstacle detection
F41 Body control module 1 (stop/start)
F42 Radio
F43 Auxiliary power outlet – console (circuit breaker)
F44 Auxiliary power outlet – console
Relays
K1 Not Used
K2 Retained accessory power
K3 2021: Content theft
K4 Not Used
K5 Not Used



Engine Compartment

Fuse Box Location

The instrument panel fuse block is in the center console between the driver and passenger seats.

Cadillac XT4 - fuse and relay box location - engine compartment
Cadillac XT4 – fuse and relay box location – engine compartment



Fuse Box Diagram

Cadillac XT4 - fuse and relay box diagram - engine compartment
Cadillac XT4 – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Usage
3 2019-2020: Antilock brake system pump
2021: Electronic brake control module
5 2019: Not Used
2020-2021: Trailer brake
6 Rear closure
7 Trailer stop/Turn LH
8 Memory seat module
9 Pedestrian friendly alert function
10 Semi-active damping system
11 2019: DC-DC Battery 1
2020-2021: DC-DC Battery 1/2
12 Rear defogger
13 Heated mirror
14 Not Used
15 Passive entry passive start
16 Front wiper
17 Passenger power seat
18 Power liftgate module
19 Driver power seat
21 Sunroof
22 Rear wiper
23 2019: Auto headlamp leveling/Canister vent solenoid
2020-2021: Trailer interface module 2
26 Transmission control module/Ignition
27 Instrument panel body/Ignition
28 Rear wiper
29 2019: Seat ventilation
2020-2021: Trailer ignition
30 2019-2020: Malfunction indicator lamp
2021: Malfunction indicator lamp start/stop Trailer interface module ignition
32 Rear drive control module 1
33 2019-2020: Front heated seat
34 Handsfree/Window switch
35 2019: Not Used
2020-2021: Diesel exhaust fuel heater
36 Fuel module
39 Massage
40 Steering column lock
41 Not Used
43 Heated steering wheel
44 2019: Not Used
2020: Seat ventilation
2021: Seat ventilation / Front heated seat
46 Engine control module/Ignition
48 Rear drive control module 2
49 Heating ventilation/ Air conditioning blower motor
50 Not Used
51 Not Used
54 Not Used
55 Not Used
56 Starter motor
57 Not Used
58 Not Used
59 High-beam headlamps
60 2019: Not Used
2020-2021: Trailer interface module 1
61 Not Used
62 Not Used
63 Not Used
65 Air conditioning control
67 Not Used
68 Not Used
69 Not Used
70 Trailer park lamp
72 Starter pinion
75 Engine control module
76 Powertrain off engine
78 Horn
79 Washer pump
81 Transmission control module/Engine control module
82 2019: Not Used
2020-2021: Nitrogen oxide sensor
83 Ignition coil
84 Powertrain on engine
85 Shunt
86 Shunt
87 2019: Not Used
2020-2021: Diesel fuel heater 1
88 Aeroshutter
89 2019: Not Used
2020-2021: Selective catalytic reduction module
92 Trailer stop/Turn right
93 2019: Not Used
2020-2021: Automatic headlamp leveling/Canister vent solenoid
95 2019: Not Used
2020-2021: Smart sensors
96 2019: Not Used
2020-2021: Diesel fuel heater 2
99 Not Used
Relays
4 Not Used
20 Rear defogger
25 Front wiper control
31 Run/Crank
37 Front wiper speed
42 Not Used
64 Starter motor
66 Powertrain
71 Trailer park lamp
73 Air conditioning control
80 Starter pinion
90 2019: Not Used
2020-2021: Powertrain sensor
94 2019: Not Used
2020-2021: Diesel exhaust fuel heater
98 2019: Not Used
2020-2021: Diesel fuel heater

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.



Volvo V60 (2021) – fuse and relay box diagram

Posted on by admin

Volvo V60 (2021) – fuse and relay box diagram

Year of production: 2021



The Volvo V60 (2021) is a luxury midsize wagon that blends Scandinavian design, cutting-edge technology, and exceptional safety features. Known for its versatility and elegant style, the 2021 V60 offers a refined driving experience, practical cargo space, and a range of efficient powertrains, including plug-in hybrid options. As part of Volvo’s continued commitment to sustainability, the V60 is an eco-conscious choice that doesn’t sacrifice performance or luxury.



Engine compartment

Fuse box location and diagram

Volvo V60 - fuse and relay location and diagram - engine compartment
Volvo V60 – fuse and relay location and diagram – engine compartment



Assignment of fuses in the engine compartment (2021)

№ Ampere Function
1 – –
2 – –
3 15 Lambda sensors; Electric charge pressure module
4 15 Ignition coils (gasoline); spark plugs (gasoline) Exhaust sensor; Diesel particulate sensor
5 15 Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor, center (gasoline); heated oxygen sensor, rear (diesel); heated oxygen sensor, front (gasoline/diesel)
6 7.5 Vacuum regulator; Valve; Output pulse valve (diesel); Oil level/temperature sensor (gasoline/diesel); Glow plug (GCU) (diesel)
7 20 Engine control module; actuator; throttle unit; EGR valve (diesel); turbo position sensor (diesel); turbocharger valve (gasoline)
8 5 Engine control module
9 – –
10 10 Solenoids (gasoline); Fuel leakage control valve; Engine cooling system thermostat (gasoline); EGR vacuum valve (diesel); Glow control module (diesel); Supercharger clutch (gasoline); Crankshaft ventilation heater (diesel); Transmission oil cooler valve (diesel)
11 5 Spoiler damper control module; Cooler damper control module; Relay coils for output pulse (diesel); Coolant valve Fuel leakage detection (gasoline)
12 15 Coolant pump
13 20 Engine control module
14 40 Starter motor
15 Shunt Starter motor
16 30 Fuel filter heater (diesel)
17 – –
18 5 Calculation module
19 – –
20 – –
21 15 ECM camera
22 – –
23 7.5 Front USB port in tunnel console, rear
24 15 12 V outlet in tunnel console, front
25 – –
26 15 12 V outlet in trunk/cargo compartment
27 – –
28 15 Driver-side headlight, LED
29 15 Passenger-side headlight, LED
30 – –
31 – –
32 – –
33 25 Headlight washers
34 25 Washer fluid pump
35 15 Transmission control module; Electric gear selector
36 20 Horn
37 5 Alarm siren
38 40 Brake system control module (valves, parking brake)
38 30 Brake control with 48 V battery
39 30 Wipers
40 25 Rear window washer
41 – –
42 20 Parking heater
43 – –
44 – –
45 – –
46 5 Fed when ignition is on: engine control module, transmission components, electrical power steering, central electrical module, brake system control module
47 – –
48 15 Passenger-side headlight, LED
49 – –
50 10 Transmission control module
51 5 Battery connection control module
52 5 Airbags; Passenger weight sensor
53 15 Driver-side headlight, LED
54 5 Accelerator pedal sensor
54 5 Accelerator pedal sensor

Engine compartment (Recharge PHEV) – fuse box diagram

Volvo V60 - fuse and relay location and diagram - engine compartment (town engine)
Volvo V60 – fuse and relay location and diagram – engine compartment (town engine)



Assignment of fuses in the engine compartment (2021, Recharge PHEV)

№ Ampere Function
1 – –
2 – –
3 – –
4 5 Control module for actuator for engaging/changing gears, automatic transmission
5 5 High-voltage coolant heater control module
6 5 Control module for A/C; heat exchanger cut-off valve; cut-off valve for coolant through the climate system
7 5 Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500V-12V voltage converter
8 – –
9 10 Converter for controlling feed to rear axle electric motor
10 10 Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500V-12V voltage converter
11 5 Charge module
12 15 Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery
13 15 Coolant pump for electric drive system
14 25 Hybrid component cooling fan
15 – –
16 – –
17 – –
18 5 Calculation module
19 – –
20 – –
21 – –
22 – –
23 7.5 Front USB port in tunnel console, front
24 15 12 V outlet in tunnel console, front
25 – –
26 15 12 V outlet in trunk/cargo compartment
27 – –
28 15 Driver-side headlight, LED
29 15 Passenger-side headlight, LED
30 – –
31 – –
32 – –
33 25 Headlight washers
34 25 Windshield washer
35 – –
36 20 Horn
37 5 Alarm siren
38 30 Brake system control module (valves, parking brake)
39 30 Wipers
40 25 Rear window washer
41 – –
42 20 Parking heater
43 – –
44 – –
45 – –
46 5 Fed when ignition is on: Engine control module; transmission components, electrical power steering, central electrical module
47 5 Exterior vehicle sound (certain markets)
48 15 Passenger-side headlight, LED
49 – –
50 – –
51 – –
52 5 Airbags; Passenger weight sensor
53 15 Driver-side headlight, LED
54 5 Accelerator pedal sensor
55 15 Transmission control module; gear selector control module
56 5 Engine control module
57 – –
58 – –
59 – –
60 – –
61 20 Engine control module; actuator; throttle unit; turbo-charger valve
62 10 Solenoids, Fuel leakage control valve; Overpressure coupling
63 7.5 Vacuum regulator; Electric bypass valve: Ventilation valve
64 5 Spoiler damper control module; Cooler damper control module
Fuel leakage control pump
65 – –
66 15 Heated oxygen sensor front and rear
67 15 Oil pump solenoid; A/C magnetic coupling; Heated oxygen sensor front, center and rear
68 – –
69 20 Engine control module
70 15 Ignition coils; spark plugs
71 – –
72 – –
73 30 Transmission oil pump control module
74 – –
75 – –
76 – –
77 – –
78 – –
77 – Not Used
78 – Not Used



Passenger compartment

Fuse box location and diagram

Volvo V60 - fuse and relay location and diagram - passenger compartment
Volvo V60 – fuse and relay location and diagram – passenger compartment



Assignment of fuses under the glove compartment (2021)

№ Ampere Function
1 10 Medium voltage module (Vehicles with 48 V support battery only)
2 – –
3 – –
4 5 Movement sensor
5 – –
6 5 Instrument panel
7 5 Center console buttons
8 5 Sun sensor
9 – –
10 – –
11 5 Steering wheel module
12 5 Module for start knob and parking brake controls
13 15 Heated steering wheel module
14 – –
15 – –
16 – –
17 – –
18 10 Climate system control module
19 – –
20 10 Data link connector OBD-II
21 5 Center display
22 40 Climate system blower module (front)
23 5 USB HUB
24 7.5 Instrument lighting; Interior lighting; Rearview mirror auto-dim function; Rain and light sensors; Rear tunnel console keypad, rear seat; Power front seats; Rear door control panels; Climate system blower module left/right
25 5 Control module for driver support functions
26 20 Panoramic roof with sun curtain
27 5 Head-up display
28 5 Passenger compartment lighting
29 5 Wireless charging pad
30 5 Ceiling console display (seat belt reminder/front passenger side airbag indicator)
31 – –
32 – –
33 – –
34 10 Fuses in the trunk/cargo compartment
35 5 Control module for Internet-connected vehicle; Control module for Volvo On Call
36 20 Door module in left-side rear door
37 40 Infotainment control module (amplifier)
38 – –
39 5 Multi-band antenna module
40 5 Front seat massage function
41 – –
42 15 Rear window wiper
43 15 Fuel pump control module
44 5 Relay coil for transmission oil pump
Converter medium voltage; Integrated starter motor
45 5 Opening trunk/tailgate with foot movement
46 15 Driver’s seat heating
47 15 Front passenger’s seat heating
48 7.5 Coolant pump
49 – –
50 20 Door module in left-side front door
Recharge PHEV: Power driver’s seat
51 20 Active chassis control module
52 – –
53 10 Sensus control module
54 – –
55 – –
56 20 Door module in right-side front door
Recharge PHEV: Power front passenger seat
57 – –
58 5 TV (certain markets only)
59 15 Primary fuse for fuses 52, 53, 57 and 58

Cargo compartment

Fuse box location and diagram

Volvo V60 - fuse and relay location and diagram - cargo compartment
Volvo V60 – fuse and relay location and diagram – cargo compartment



Assignment of fuses in the trunk (2021)

№ Ampere Function
1 – –
2 40 Recharge PHEV: Central electrical module
3 40 Pneumatic suspension compressor
4 – –
5 – –
6 – –
7 20 Door module right side, rear
8 – –
9 25 Power tailgate
10 20 Power front passenger seat
Door module right side, front
11 40 Towbar control module
12 40 Seat belt tensioner module (right side)
13 5 Internal relay windings
14 – –
15 20 Door module left side, rear
16 5 USB hub/accessory port
17 – –
18 25 Towbar control module
18 40 Accessory module
19 20 Power driver seat
Door module left side, front
20 40 Seat belt tensioner module (left side)
21 5 Park Assist Camera
22 – –
23 – –
24 – –
25 10 Recharge PHEV: Feed when ignition is on
26 – –
27 – –
28 15 Heated rear seat (left side)
29 – –
30 5 Blind Spot Information (BUS)
Exterior reverse signal control module
31 – –
32 5 Seat belt tensioner module, right
33 5 Emissions system actuator (gasoline, certain engine variants)
34 – –
35 15 All Wheel Drive (AWD) control module
36 15 Heated rear seat (right side)
37 – –

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
