Chevrolet Blazer (1992 – 1994) – fuse box diagram

Posted on by admin

Chevrolet Blazer (1992 – 1994) – fuse box diagram

Year of production: 1992, 1993, 1994

Fuse Box diagram

Chevrolet Blazer - fuse box diagram
Chevrolet Blazer – fuse box diagram
No.
 A
 Circuit Protected
1 20 Cruise Control, Rear Window Defogger Timer, 4-Wheel Drive Display Illumination, Auxiliary Battery Relay, Seat Belt Reminder, Cluster Ignition Feed
2 15 Back-Up Lights, Turn Signals
3 –  –
4 30 Circuit breaker: Power Windows
5 5 Discreet Crank
6 10 Torque Converter Clutch, Air Injection Reactor Diverter, Electronic Spark Control, EGR, Electronic Control Module, Anti-Lock Switch
7 25 4-Wheel Drive (4WD)
15 Speedometer
8 10 Throttle Body Injectors
9 15 Anti-Lock Brakes, Cluster Speedometer
10 25 HVAC, 4-Wheel Drive, Auxiliary Battery
11 20 Courtesy Lights, Glove Box Light, Radio
12 20 Horn Relay, Horn Feed, Cigarette Lighter, Parking Lights
13 5 Switch Illumination, Headlight ON Warning, Radio Illumination, Heater & A/C Illumination, Rear Window Defogger
20 Switch Illumination, Headlight ON Warning, Radio Illumination, Heater & A/C Illumination, Rear Window Defogger
14 30 Circuit breaker: Door Locks, Rear Window Defogger
15 15 Hazard Flasher, Seat Belt Reminder, Stoplights, Rear Anti-lock Memory
16 25 Windshield Washer/Wiper
17 –  –
18 10 Radio Feed
19 15 Daytime Running Light

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet K1500 (1992 – 1994) – fuse box diagram

Posted on by admin

Chevrolet K1500 (1992 – 1994) – fuse box diagram

Year of production: 1992, 1993, 1994

Fuse Box diagram

Chevrolet K1500 - fuse box diagram
Chevrolet K1500 – fuse box diagram
No.
 A
 Circuit Protected
1 20 Cruise Control, Rear Window Defogger Timer, 4-Wheel Drive Display Illumination, Auxiliary Battery Relay, Seat Belt Reminder, Cluster Ignition Feed
2 15 Back-Up Lights, Turn Signals
3 –  –
4 30 Circuit breaker: Power Windows
5 5 Discreet Crank
6 10 Torque Converter Clutch, Air Injection Reactor Diverter, Electronic Spark Control, EGR, Electronic Control Module, Anti-Lock Switch
7 25 4-Wheel Drive (4WD)
15 Speedometer
8 10 Throttle Body Injectors
9 15 Anti-Lock Brakes, Cluster Speedometer
10 25 HVAC, 4-Wheel Drive, Auxiliary Battery
11 20 Courtesy Lights, Glove Box Light, Radio
12 20 Horn Relay, Horn Feed, Cigarette Lighter, Parking Lights
13 5 Switch Illumination, Headlight ON Warning, Radio Illumination, Heater & A/C Illumination, Rear Window Defogger
20 Switch Illumination, Headlight ON Warning, Radio Illumination, Heater & A/C Illumination, Rear Window Defogger
14 30 Circuit breaker: Door Locks, Rear Window Defogger
15 15 Hazard Flasher, Seat Belt Reminder, Stoplights, Rear Anti-lock Memory
16 25 Windshield Washer/Wiper
17 –  –
18 10 Radio Feed
19 15 Daytime Running Light

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Blazer (1995 – 2005) – fuse box diagram

Posted on by admin

Chevrolet Blazer (1995 – 2005) – fuse box diagram

Year of production: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

Passenger Compartment Fuse Box

Chevrolet Blazer - fuse box diagram - passenger compartment

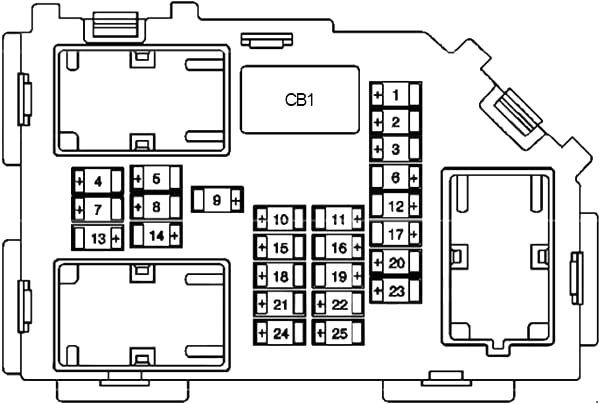

Chevrolet Blazer – fuse box diagram – passenger compartment
No.
 A
 Protected Component
1 20 ’95-’97: Stoplights, Hazard Warning Lights, Chime Module
10 ’98: Headlamp Switch
2 20 ’95-’97: Dome Light, Glove Box Light, Lighted Visor Mirror, Horn, I/P Courtesy Light, Cigar Lighter, Liftgate Glass Release, Power Mirror, Endgate Lock Switch, Keyless Entry, Cargo Lamp, Driver’s Information Display Center, Interior Lamps Control Module, Inside Rear View Mirror
15 ’98-’05: Cigar Lighter, Data Link Connector (DLC)
3 20 ’95-’97: Electric Shift Transfer Case Module, Parking Lights, License Plate Light, Rear Windshield Washer Pump, Underhood Lamp
10 ’98-’05: Body Control Module (BCM), Cruise Control Module (CCM), Multifunction Switch (Cruise Control Switch), Seat Lumbar Switch – Driver/Front Passenger
4 20 ’95: Auto Transmission, Alternator Field, Variable Throttle Control, A/C Compressor, Cluster, Chime Module, 4WD Indicator Light, Heated O2 Sensor, Daytime Running Lights Module, Rear Window Defog Switch, Keyless Entry
10 ’96-’97: A/C Compressor Relay, Daytime Running Lamps Control Module, Daytime Running Lamps Relay, Four Wheel Drive Indicator Switch, Front Axle Switch, Fuel Level Buffer Module, Inflatable Restraint Diagnostic Energy’ Reserve Module, Instrument Ouster, Interior Lamps Control Module, Rear Window Defogger Switch, Remote Control Door Lock Receiver, Seat Belts Lamp Alarm, Ignition Key Lamp Alarm, Transfer Case Select Switch, Transfer Case Shift Control Module
10 ’98-’05: Body Control Module (BCM), Instrument Panel Cluster (IPC)
5 20 ’95-’97: Linear EGR Valve, Evaporative Emissions Canister Purge Solenoid, Evaporative Emission Canister Vent Solenoid Valve, Heated O2 Sensors, Camshaft Position Sensor, Vehicle Control Module, Powertrain Control Module, Mass Air Flow Sensor
10 ’98: Radio, Heater Controller (except A/C), Heater and A/C Controller (with A/C), Fog Lamp Switch, IP Module Switch, Truck Body Control Module (TBC), Transfer Case Select Switch, Instrument Cluster
10 ’99-’05: Body Control Module (BCM), Outside Rear View Mirror Switch, Door Lock and Side Window Switch – Driver/Front Passenger, Side Window Lockout Switch, Rear Seat Audio Control, IP Ashtray Lamp
6 25 ’95: Heater and A/C Select Switch, Air Temperature Valve Electric Actuator
20 ’96-’97: Air Temperature Valve Electric Actuator, Heater and A/C Controller, Heater Controller
2 ’99-’05: Redundant Steering Wheel Controls
7 25 ’95-’97: Power Auxiliary Outlets, Data Link Connector
5 ’98: Outside Rear View Mirror Switch, Door Lock Switch Assembly, Side Window Switch Assembly
10 ’99-’05: Headlamp Switch
8 30 ’95-’97: Rear Window Defog Switch
10 ’98-’05: Courtesy Lamps – Left/Right Console, Inadvertent Power Relay, Transfer Case Shift Control Module (NP1)
9 15 ’95: Powertrain Control Module (Battery), ABS Battery, Fuel Pump Relay
20 ’96-’97: Powertrain Control Module (Battery), Fuel Pump Relay, Fuel Pump Switch and Engine Oil Pressure Gauge Sensor
20 ’98-’05: Heater and A/C Control Module (with A/C), Heater Controller (except A/C)
10 10 ’95: Powertrain Control Module (Ignition), Injectors, Engine Sensors
20 ’96-’97: Crankshaft Position Sensor, Electronic Ignition Control Module, Fuel Injectors, Powertrain Control Module
20 ’98-’05: Multifunction Switch (Hazard Switch)
11 20 ’95-’97: Radio, Inside Rearview Mirror Map Lights, Rear Window Wiper/Washer, Driver Information Display Control Module, Map/Dome Lamp Relay
10 ’98-’05: Instrument Panel Cluster (IPC), Automatic Transmission Shift Lock Actuator, Automatic Transmission, Powertrain Control Module
12 10 ’96-’97: Cruise Control Module, Cruise Control Switch (Multi-Function Switch), Electronic Brake Control Module (ABS), TCC/Brake And Cruise Control Release Switch
10 ’98: IP Ashtray Lamp, Truck Body Control Module (TBC), Outside Rear View Mirror Switch, Door Lock Switch Assembly, Side Window Switch Assembly
10 ’99-’05: Radio, Heater and A/C Control Module, Fog Lamp Switch, Rear Wiper/Washer and Endgate/Liftgate Window Release Switch, Driver Information Center (DIC), Automatic Transmission Shift Lever Position Indicator, Body Control Module (BCM), Transfer Case Select Switch, Instrument Panel Cluster (IPC), Headlamp Leveling Switch
13 15 ’95: Clock, Radio Battery, CD Player
10 ’96-’97: Radio
20 ’98-’05: Accessory Power Outlet – Left/Right, Accessory Power Outlet – Floor Console, Accessory Power Outlet – Rear
14 5 ’95: Cluster Illumination, Ash Tray Lamp, Radio Illumination, Heater Lamp, 4WD Illumination, Chime Module, Fog Lamp Sw. Illumination, Daytime Running Lights
10 ’96-’97: A/C Compressor Relay
15 ’98-’05: Door Lock Relay, Door Unlock Relay, Door Unlock Relay – Driver (Power Door Locks)
15 10 ’95: Daytime Running Lights Relay
20 ’96-’97: Fog Lamp Relay, Daytime Running Lights Relay
10 ’98-’05: Powertrain Control Module (PCM), Transfer Case Shift Control Module, Transfer Case Shift Control Switch (NP1, NP8), Front Axle Vacuum Solenoid (NP1, NP8), Front Axle Indicator Switch (NP1, NP8)
16 15 ’95-’97: Turn Signal Lights, Back-Up Lights, Backup Lamp Switch (Manual Transmission), Transmission Range Switch (Park/Neutral Position and Backup Lamp Switch)
15 ’98-’05: Inflatable Restraint Sensing and Diagnostic Module (SDM)
17 25 Windshield Wiper Motor, Multifunction Switch (Wiper Switch)
18 15 ’95: Speedometer, ABS System, Cruise Control
2 ’99-’05: Redundant Steering Wheel Controls
19 20 ’95-’97: Transfer Case Control Module (Four-Wheel Drive)
15 ’98-’05: Radio, Instrument Panel Cluster (IPC), Heater and A/C Control Module, Vehicle Interface Unit (VIU)
20 10 ’95: Diagnostic Energy Reserve Module (DERM)
10 ’96-’97: Clutch Pedal Position and Cruise Control Shutoff Switch, Inflatable Restraint Diagnostic Energy Reserve Module, Transfer Case Shift Control Module, Transmission Range Switch (Park/Neutral Position And Backup Lamp Switch)
25 ’98-’05: Audio Amplifier
21 20 ’95: Fog Lamps Relay
10 ’98-’05: Air Temperature Actuator, Heater and A/C Control Module, Inside Rear View Mirror (Automatic Day – Night Mirror), Air Temperature Sensor Assembly – Inside, Vacuum Control Assembly
22 10 ’95-’97: Air Bag Diagnostic Energy Reserve Module (DERM), Arming Sensor
10 ’98-’05: Stop Lamp Switch, ABS – Electronic Brake Control Module (EBCM)
23 10 ’95-’97: Automatic Transmission Position Indicator Lamp, Driver’s Information Display Center, Endgate Window Release Switch, Fog Lamp Switch, Four Wheel Drive Indicator Switch, Heater and A/C Controller Heater Controller, Instrument Cluster, Liftgate Window Release Switch, Radio, Rear Window Defogger Switch, Rear Window Wiper and Washer Switch, Seat Belts Lamp Alarm, Ignition Key Lamp Alarm
15 ’98-’05: Rear Wiper/Washer Switch, Endgate/Liftgate Window Release Switch
24 10 ’95-’97: Instrument Cluster, Automatic Transmission, Park Pawl Actuator (Brake Transmission Shift Interlock Solenoid)
10 ’98-’05: Radio, Driver Information Center (DIC), Rear Seat Audio (RSA) Module, Vehicle Interface Unit (VIU), Outside Rear View Mirror Switch
Circuit Breaker
A 20 ’95-’97: Power Door Locks
B 30 ’95-’97: Power Windows, Sunroof



Engine Compartment Fuse Box (’98-’05)

Chevrolet Blazer - fuse box diagram - engine compartment

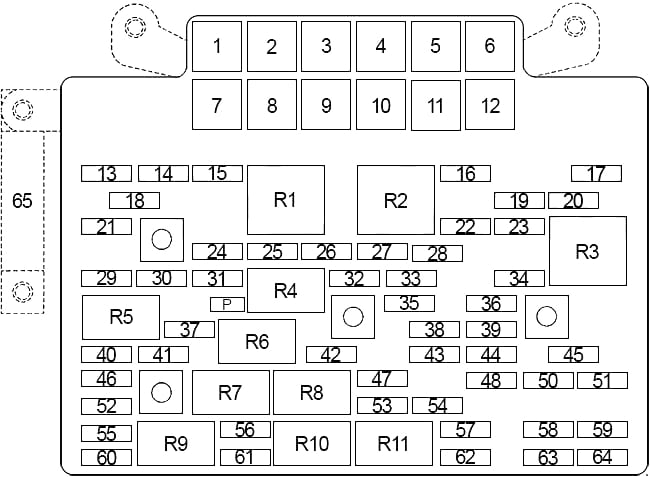

Chevrolet Blazer – fuse box diagram – engine compartment
No.
 A
 Protected Component
1 50 except Envoy: Fuses (Passenger Compartment): “2”, “7”, “8”, “13”, “14”, “19”
60 Envoy: Fuses (Passenger Compartment): “2”, “7”, “8”, “13”, “14”, “19”
2 60 ABS – Electronic Brake Control Module (EBCM)
3 –  –
4 –  –
5 50 Ignition Switch
6 50 Retained Accessory Power (RAP) Relay, “POWER SEATS” Circuit Breaker
7 40 Starter Relay, Ignition and Start Switch
8 30 Trailer Wiring Provision (Power Aux)
9 10 Trailer Wiring Provision (LP – Stop, T/Sig – LH)
10 10 Trailer Wiring Provision (LP – Stop, T/Sig – RH)
11 10 Trailer wiring Provision (LP-B/U)
12 15 Backup Lamp – Right/Left, Inside Rear View Mirror (Automatic Day – Night Mirror)
13 10 Park/Turn Signal Lamp – RH, Marker Lamp, Repeater Lamps
14 10 Park/Turn Signal Lamp – LH, Marker Lamp, Repeater Lamp
15 10 Park/Turn Signal Lamp – LR, Turn Signal Lamp – LR
16 10 Park/Turn Signal Lamp – RR, Turn Signal Lamp – RR
17 10 Park/Turn Signal Lamps – RR (Domestic), Tail/Stop Lamp – RH, License Plate Light
18 10 Park/Turn Signal Lamp – LH/RH (Domestic), Marker Lamp, Headlamp Washer Pump Relay
19 10 License Lamps, and Trailer Wiring Provisions (LP Park)
20 10 ’98: Headlamp Low Beam (LH), Daytime Running Lamp (DRL) Relay
15 ’99-’05: Left Headlamp, Daytime Running Lamps (DRL) Relay
20 Envoy (’99-’01): Left Low Beam (HID)
21 10 ’98: Right Headlamp
15 ’99-’05: Right Headlamp
20 Envoy (’99-’01): Right High Beam (HID)
22 10 Evaporative Emission (EVAP) Canister Purge Solenoid, Evaporative Emission (EVAP) Canister Vent Solenoid, Mass Air Flow (MAF) Sensor, Camshaft Position (CMP) Sensor
23 20 Fuel Pump Relay, Powertrain Control Module (PCM), Fuel Pump and Engine Oil Pressure Gauge Sensor
24 15 Envoy (’98): Left High Beam (HID)
10 Envoy (’99-’01): Left High Beam (HID)
25 10 ’99-’05: Headlamp Washer Fluid Pump Relay
15 Envoy (’98): Right High Beam (HID)
10 Envoy (’99-’01): Right High Beam (HID)
26 15 Horn
27 15 Ignition Control Module (ICM), Fuel Injectors, Powertrain Control Module (PCM), Ignition Coil, Crankshaft Position Sensor
28 10 ’99-’05: A/C Compressor Relay
15 Envoy (’98): Daytime Running Lamps
29 10 Stop Lamp Switch, Transfer Case Shift Control Module, Automatic Transmission Shift Lock Actuator
30 25 Backup Lamp Switch, Park Neutral Position (PNP)
31 10 ’98: A/C Compressor Clutch Relay
32 10 A/C Compressor Relay, Secondary Air Injection (AIR) Relay (California Emissions), Rear Defogger Relay, Headlamp Leveling Switch, Headlamp Leveling Actuator Motor (LH/RH), Automatic Level Control (ALC) Sensor and Compressor
33 15 Fog Lamp Relay, Daytime Running Lamps (DRL) Relay, Headlamp Ground Relay
34 20 Heated Oxygen Sensor (HO2S) Bank 1, Sensor 1, Heated Oxygen Sensor (HO2S) Bank 1, Sensor 3, Heated Oxygen Sensor (HO2S) Bank 2, Sensor 1
35 10 Park/Turn Signal Lamps – LR (Domestic) and Tail/Stop Lamp – LH, License Lamp
36 20 Ignition Switch
37 20 Seat Heater Module (LH/RH), Lumbar Switch (RH, LH)
38 20 Park Lamp Relay, Headlamp Grounding Relay, Headlamp Switch
39 20 ’98: Transfer Case Control Module
20 Envoy: High Beam Relay
40 30 Rear Window Defogger Grid
41 30 Blower Motor Relay (without Electronic Climate Control), Blower Motor Control Module (Electronic Climate Control)
42 10 Trailer Wiring Provision (LP – High MT Stop)
43 10 ’99-’05: Body Control Module (BCM), Remote Control Door Lock Receiver (RCDLR), Multifunction Switch (Flash to Pass)
44 10 Transfer Case Shift Control Module, Clutch Pedal Position (CPP) Switch (M/T Only), Park/Neutral Position (PNP), Backup Lamp Switch, Manual Transmission Clutch Start Switch
45 –  –
46 20 HID Headlamps
47 20 Multifunction Switch (Hazard)
48 10 Center High Mounted Stop Lamp (CHMSL), Center High Mounted Stop Lamp (CHMSL) Resistor, Cruise Control Module (CCM), Tail/Stop Lamp – LH/RH, Dome Lamp
49 10 Heated Mirrors
50 20 Stop Lamp Switch, High Mounted Stop Lamp Relay
51 10 ’98: Truck Body Control Module (TBC), RFA Module Assembly (Remote Keyless Entry)
15 ’99-’05: Rear Window Wiper Motor
61 15 Headlamp Washer
62 3 Outside Rear View Mirror Switch, Door Lock and Side Window Switch – Left/Right, Lift Glass Relay, Liftgate or Endgate Lock Cylinder Switch
63 25 Load Leveling Pump, Load Leveling Timer Relay
64 20 Transfer Case Shift Control Module, Transfer Case Encoder Motor (NP1)
Relay
52 Daytime Running Lamps (DRL)
53 Fuel Pump
54 Horn
55 Air Conditioner
56 Fog Lamp
57 Headlamp (Low Beam Headlamps)
58 Starter
59 Rear Window Defogger
65 ’98: Headlamps
Liftgate/Endgate Window Release Actuator
66 ’98: Center High Mounted Stop Lamp (CHMSL)

Relay Box

Chevrolet Blazer - fuse box diagram - relay box

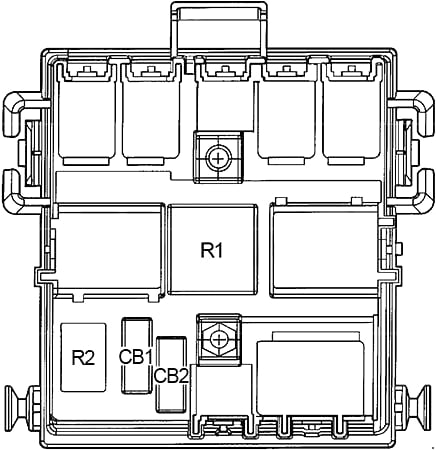

Chevrolet Blazer – fuse box diagram – relay box
No.
 Relay
R1 Park Lamp
R2 Courtesy Lamp
R3 Retained Accessory Power (RAP)
R6 Inadvertent Power
R7 Door Lock
R8 except Envoy: Headlamp Ground
Envoy: High Beam
R9 Driver Door Unlock
R10 Door Unlock
Circuit Breaker
R4 Power Seats
R5 Power Windows

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Corsica (1987 – 1996) – fuse box diagram

Posted on by admin

Chevrolet Corsica (1987 – 1996) – fuse box diagram

Year of production: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

Fuse Box diagram

Chevrolet Corsica - fuse box diagram
Chevrolet Corsica – fuse box diagram
No.
 A
 Protected Component
1 15 ‘87-’93, ’96: Computer Command Control, Fuel Injector
2 20 ’89-’96: Stoplights, Hazard Lights
3 15 ’87-’88: Radio
10 ’91-’96: Air Bag, Ignition
4 20 ’87-’88: Stoplights, Hazard Lights
5 ’89-’92: Alternator, Anti-Lock Brakes (’92)
10 ’93-’96: Alternator, Anti-Lock Brakes (’93-’95), LGO Heater Pipe (’93-’94), Daytime Running Light (’95-’96), Multiport Fuel Injection (’96)
5 20 ’87-’95: Back-Up Lights, Turn Signal Lights
15 ’96: Back-Up Lights, Turn Signal Lights
6 20 ’89-’96: Trunk Release, Cigarette Lighter (’89-’95), Interior Lights (’96)
7 20 Parking & Side Marker Lights, License Lights, Daytime Running Light (’96)
8 25 Heater & Air Conditioner
9 20 Gauges/Warning Indicator, Audible Warning System, Rear Window Defogger, Air Conditioner, Computer Command Control (’87-’90) Cruise Control (’95-’96), Daytime Running Light (’95-’96),ABS (’96), Automatic Door Locks (’96), Automatic Seat Belts (’96), Multiport Fuel Injection (’96), Supplemental Inflatable Restraint (’96)
10 25 Windshield Wiper/Washer
11 20 ’87-’93: Courtesy Lights, Clock, Door Locks (’87-’93), Horn (’87-’93), Cigar Lighter (’87-’90), Radio-CD (’91-93), Trunk Release (’87-’88), Audible Warning System, ABS Passive Belts
15 ’94-’96: Courtesy Lights (’94-’95), Clock (’94-’95), Radio-CD (’94-’95), Audible Warning System, ABS Passive Belts
12 35 Circuit Breaker (’87-’91): Power Windows
30 Circuit Breaker (’92-’96): Power Windows
13 5 ’87-’91: Instrument Panel Lights, Headlight Reminder (’87-’90)
3 ’92-’96: Instrument Panel Lights, Interior Lights Dimming (’96), Radio/Audio Systems (’96), Wiper/Washer (’96)
14 15 Radio, Cruise Control (’97-’95), Clock (’87-’88)
15 35 Circuit Breaker (’87-’91): Power Door Locks, Rear Window Defogger
30 Circuit Breaker (’92-’96): Power Door Locks, Rear Window Defogger
16 10 ’89: MAF Sensor (V6)
5 ’91: Daytime Running Light
3 ’92-’93: Daytime Running Light
20 ’94-’96: Fuel Pump/Injectors
17 3 ’91-’93: Air Bag
10 ’94-’96: Automatic Door Unlock (Remove to Disable)



AdAditional Fuses (’94-’95)

There are 2 fuses under the steering column

No.
 A
 Protected Component
1 3 Air Bag
2 20 Fog Lamps, Door Lock, Horn

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Beretta (1987 – 1996) – fuse box diagram

Posted on by admin

Chevrolet Beretta (1987 – 1996) – fuse box diagram

Year of production: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

Fuse Box diagram

Chevrolet Beretta - fuse box diagram
Chevrolet Beretta – fuse box diagram
No.
 A
 Protected Component
1 15 ‘87-’93, ’96: Computer Command Control, Fuel Injector
2 20 ’89-’96: Stoplights, Hazard Lights
3 15 ’87-’88: Radio
10 ’91-’96: Air Bag, Ignition
4 20 ’87-’88: Stoplights, Hazard Lights
5 ’89-’92: Alternator, Anti-Lock Brakes (’92)
10 ’93-’96: Alternator, Anti-Lock Brakes (’93-’95), LGO Heater Pipe (’93-’94), Daytime Running Light (’95-’96), Multiport Fuel Injection (’96)
5 20 ’87-’95: Back-Up Lights, Turn Signal Lights
15 ’96: Back-Up Lights, Turn Signal Lights
6 20 ’89-’96: Trunk Release, Cigarette Lighter (’89-’95), Interior Lights (’96)
7 20 Parking & Side Marker Lights, License Lights, Daytime Running Light (’96)
8 25 Heater & Air Conditioner
9 20 Gauges/Warning Indicator, Audible Warning System, Rear Window Defogger, Air Conditioner, Computer Command Control (’87-’90) Cruise Control (’95-’96), Daytime Running Light (’95-’96),ABS (’96), Automatic Door Locks (’96), Automatic Seat Belts (’96), Multiport Fuel Injection (’96), Supplemental Inflatable Restraint (’96)
10 25 Windshield Wiper/Washer
11 20 ’87-’93: Courtesy Lights, Clock, Door Locks (’87-’93), Horn (’87-’93), Cigar Lighter (’87-’90), Radio-CD (’91-93), Trunk Release (’87-’88), Audible Warning System, ABS Passive Belts
15 ’94-’96: Courtesy Lights (’94-’95), Clock (’94-’95), Radio-CD (’94-’95), Audible Warning System, ABS Passive Belts
12 35 Circuit Breaker (’87-’91): Power Windows
30 Circuit Breaker (’92-’96): Power Windows
13 5 ’87-’91: Instrument Panel Lights, Headlight Reminder (’87-’90)
3 ’92-’96: Instrument Panel Lights, Interior Lights Dimming (’96), Radio/Audio Systems (’96), Wiper/Washer (’96)
14 15 Radio, Cruise Control (’97-’95), Clock (’87-’88)
15 35 Circuit Breaker (’87-’91): Power Door Locks, Rear Window Defogger
30 Circuit Breaker (’92-’96): Power Door Locks, Rear Window Defogger
16 10 ’89: MAF Sensor (V6)
5 ’91: Daytime Running Light
3 ’92-’93: Daytime Running Light
20 ’94-’96: Fuel Pump/Injectors
17 3 ’91-’93: Air Bag
10 ’94-’96: Automatic Door Unlock (Remove to Disable)



AdAditional Fuses (’94-’95)

There are 2 fuses under the steering column

No.
 A
 Protected Component
1 3 Air Bag
2 20 Fog Lamps, Door Lock, Horn

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Celebrity (1982 – 1990) – fuse box diagram

Posted on by admin

Chevrolet Celebrity (1982 – 1990) – fuse box diagram

Year of production: 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990

Fuse Box diagram

Chevrolet Celebrity - fuse box diagram
Chevrolet Celebrity – fuse box diagram
No.
 A
 Protected Component
1 10 ’82-’86: Diese Engine Glow Plugs (’82-’85), Electronic Fuel Injection
10 ’87-’89: Computer Command Control, ECM Ignition, Fuel Injection
15 ’90: ECM Injectors, Direct Ignition System
2 10 ’82-’89: Fuel Pump Relay, Crank Signal (’87-’89)
3 20 ’82-’89: Stoplights, Hazard Lights, Audible Warning System (’87-’89)
10 ’90: A/C Relay, EGR Solenoid, Canister Purge Solenoid
4 20 ’82-’89: Choke Heater (’82-’87), Coolant Fan, Warning Indicators (’82-’86)
10 ’90: Electric Fan, Heater Resistor, Generator, Daytime Running Lights
5 15 Turn Flasher, Back-Up Lights, Trunk & Tailgate Release (with Automatic Transmission (’87-’90))
6 10 ’82-’89: Crank Signal to ECM, Cold Start Injector (’87)
7 20 Front Parking, Side Marker, Taillights License Plate, Stoplights, Turn Signal Lights, Radio/Digital Clock (’82-’86)
8 25 Heater & Air Conditioner
9 10 Gauges, Warning Indicator, Audible Warning System, Computer Command Control, Rear Window Defogger, Brake Warning Indicator, Torque Converter Clutch, Trunk Release, Air Conditioning Relay (’87-’90), Vehicle Speed Sensor (’87-’90)
10 25 ’82-’89: Windshield Wiper/Washer Motor
20 ’90: Stoplights, Hazard Flasher
11 20 Courtesy Lights, Audible Warning System (’82-’86), Cigarette Lighter, Engine Compartment Light, Horn, Interior Lights, Power Door Locks (’82-’83), Instrument Panel Lights (’87-’90), Trunk Light (’87-’90), Ashtray Door Locks (’87-’90), Horn & Passive Restraint (’90)
12 30 Circuit Breaker: Power Window, Rear Washer/Wiper (’85-’90), Power Tailgate Release (’87-’90), Trunk Release (witch Manual Transmission (’87-’90))
13 5 ’82-’89: Instrument Panel Lights, Audible Warning System (’82-’86), Rear Window Defogger (’82-’86), Radio Lights (’82-’83)   Instrument Panel Lights
5 ’90: Radio, Pod Lights, Heater & A/C Defogger Switch, Headlight, Ashtray
14 10 Radio, Cruise Control (’87-’90)
15 30 Circuit Breaker: Power Accessory (’82-’83), Rear Window Defogger, Power Door Locks, Power Seats, Rear Washer/Wiper (’85-’90), Tailgate Release (’85-’86)
16 25 ’90: Windshield Wiper/Washer
17 10 ’82-’89: ECM-Computer Command Control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet TrailBlazer (2002 – 2009) – fuse box diagram

Posted on by admin

Chevrolet TrailBlazer (2002 – 2009) – fuse box diagram

Year of production: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009

Passenger Compartment Fuse Box

The rear under-seat fuse block is located on the driver’s side of the vehicle, under the second-row seat. Pull the seat cushion forward to access the fuse block.

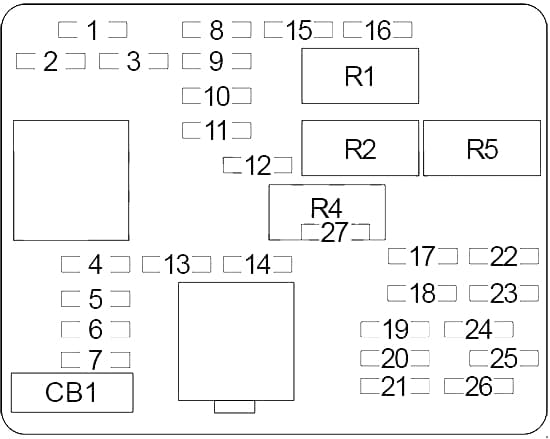

Chevrolet Trailblazer - fuse box diagram - passenger compartment
Chevrolet Trailblazer – fuse box diagram – passenger compartment
No. A Protected Component
1 –  –
2 –  –
3 –  –
4 –  –
5 –  –
6 –  –
7 3 except for Saab: Body Control Module (BCM)
10 Saab: Body Control Module (BCM)
8 10 Electronic Brake Control Module (EBCM)
9 3 except for Saab: Body Control Module (BCM)
10 Saab: Park/Turn Signal Lamp – LF
10 3 Saab: Body Control Module (BCM)
11 15 Transfer Case Shift Control Switch, Automatic Level Control (ALC) Compressor, Front Axle Actuator
12 10 Transmission, Automatic Transmission Shift Lock Actuator, Engine Control Module (ECM), Powertrain Control Module (PCM), Theft Deterrent Control Module, 1-2 Shift Solenoid (1-2 SS) Valve, 2-3 Shift Solenoid (2-3 SS) Valve, 3-2 Shift Solenoid (3-2 SS) Valve, Torque Converter Clutch (TCC) Solenoid Valve
13 20 except for Saab: Auxiliary Power Outlet (Front), Auxiliary Power Outlet (Console), Auxiliary Power Outlet (Rear (’05-’09))
14 30 except for Saab: HVAC Control Module
15 10 Instrument Panel Cluster, Front Passenger Door Module (FPDM), Tail Lamp Assembly (Right), Marker Lamp (Right), Park/Tum Signal Lamp
16 10 Trailer Connector (Park Lamps)
17 15 Radio, Digital Radio Receiver
18 10 except for Saab: Body Control Module (BCM)
10 Saab: Park/Turn Signal Lamp – RF
19 10 HVAC Control Module, Turn Signal/Multifunction Switch, Air Temperature Actuators, Defrost Actuator, Recirculation Actuator, Mode Actuator, Console Mode Actuator, Traction Control Switch, Electronic Brake Control Module (EBCM), HVAC Control Module (Auxiliary), Steering Wheel Speed/Position Sensor
20 10 Instrument Panel Cluster, Driver Door Module (DDM), Tail Lamp Assembly (Left), Marker Lamp (Left), Park/Tum Signal Lamp
21 10 Turn Signal/Multifunction Switch, Marker Lamps, Front Park and Turn Signal
22 10 HVAC Control Module, HVAC Control Module (Auxiliary)
23 10 Transmission Control Module (TCM)
24 15 Tail Lamps, Powertrain Control Module (PCM), Throttle Actuator Control (TAC), Module Engine Control Module (ECM), Trailer Brake Wiring, Transmission Control Module (TCM)
25 25 Windshield Wiper Motor
26 10 ’03-’06 (except Saab): Body Control Module (BCM)
20 ’06-’09 (except Saab): Sunroof Motor
10 Saab: Body Control Module (BCM)
27 3 except for Saab: Body Control Module (BCM)
28 10 ’03-’06 (except Saab): Outside Moisture Sensor, Digital Video Disc (DVD) Player
29 20 Saab: Sunroof Motor
30 10 Garage Door Opener, Voice Recorder, Digital Video Disc (DVD) Player, Vehicle Communication Interface Module (CIM)
31 20 EXT (’03-’06): Sunroof Module
32 –  –
33 –  –
34 10 Power Door Lock (“LOCK” Relay and “UNLOCK” Relay)
35 20 ’03-’06 (except Saab): Sunroof Module
20 EXT (’03-’06): Quarter Glass Switches and Actuators, Sunroof Module
36 10 ’05-’09: Cobra Intrusion Sensor Module, Inclination Sensor, Liftgate Module (LGM), Memory Seat Module – Driver
37 10 Right Tail Lamp Assembly, Clearance Lamps
38 10 Center High-Mounted Stop Lamp (CHMSL)
39 10 License Lamps and Left Tail Lamp
40 30 ’03-’06 (except Saab): Blower Motor (Auxiliary), Blower Motor Control Processor (Auxiliary)
41 20 ’03-’04 (except Saab): Auxiliary Power Outlet (Rear)
42 20 Audio Amplifier
43 10 Front Passenger Door Module (FPDM)
44 15 Rear Window Wiper Motor
45 10 Driver Door Module (DDM)
46 10 ’03-’04 (except Saab): Memory Seat Module (Driver), Memory Seat Module (Front Passenger), Cobra Intrusion Sensor and Inclination Sensor
47 10 Rear Fog Lamp
48 10 Body Control Module (BCM)
49 30 Liftgate Module
50 10 Body Control Module (BCM)
51 20 Saab: Auxiliary Power Outlet – Front/Rear
52 2 Saab: Body Control Module (BCM)
Circuit Breaker
51 30 Power Seat, Memory Seat Module (Driver), Memory Seat Module (Front Passenger)
52 25 Power Window (Driver Door Module (DDM), Left Rear Window Switch)
53 25 Power Window (Front Passenger Door Module (FPDM), Right Rear Window Switch)
Relay
R1 except for Saab: Rear Fog Lamp
R2 Park Lamps, Tail Lamps (Fuse: “16”, “21”, “37”, “39”)
R3 Power Door Unlock (Rear Door Lock Actuators)
R4 Power Door Lock (Rear Door Lock Actuators)
R5 EXT (’03-’06): Quarter Glass Switches and Actuators, Sunroof Module
R6 Saab: Ignition (Fuse: “8:, “11”, “19”)
R7 Saab: Accessory (Fuse: “25”, “23”)
R8 Saab: Ignition (Fuse: “12”)

Engine Compartment Fuse Box

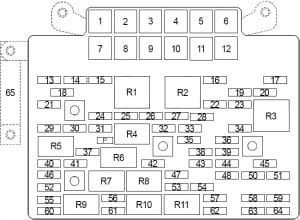

Chevrolet Trailblazer - fuse box diagram - engine compartment
Chevrolet Trailblazer – fuse box diagram – engine compartment
No. A Protected Component
1 10 Evaporative Emission (EVAP) Canister Vent Solenoid, Transmission Control Module (TCM)
2 10 ’05-’09 (5.3L, 6.0L): Body Control Module (BCM), Theft-Deterrent Alarm, Theft Deterrent Control Module
3 15 Windshield Washer Fluid Pump
4 10 High Beam Headlamps, High Beam Relay
5 10 ’05-’09 (5.3L, 6.0L): Heated Oxygen Sensor
6 10 4.2L: Air Conditioner Relay
10 ’05-’09 (5.3L, 6.0L): Heated Oxygen Sensor
7 –  –
8 25 ’03: Transfer Case Shift Control Module, Transfer Case Encoder Motor
30 ’04-’09: Transfer Case Encoder Motor, Transfer Case Shift Control Module
9 20 ’05-’09 (5.3L, 6.0L): Fuel Injectors, Ignition Coils (Right Side)
15 ’03-’04 (5.3L): Fuel Injectors, Ignition Coils (Right Side)
10 ’06-’09 (4.2L): Heated Oxygen Sensor
10 15 ’03-’04 (5.3L): Fuel Injectors, Ignition Coils (Left Side)
15 Evaporative Emission (EVAP) Canister Purge Solenoid, Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor, Valve Lifter Oil Manifold (VLOM) Assembly
11 15 5.3L, 6.0L: Throttle Actuator Control (TAC) Module – Powertrain Control Module (PCM) / Engine Control Module (ECM)
12 10 ’03-’04: Body Control Module (BCM), Theft-Deterrent Alarm, Theft Deterrent Control Module
20 ’05-’09 (5.3L, 6.0L): Fuel Injectors, Ignition Coils (Left Side)
10 ’05-’09 (4.2L): Body Control Module (BCM), Theft-Deterrent Alarm, Theft Deterrent Control Module
13 10 Trailer Connector (Right Turn Signal)
14 30 Automatic Level Control Compressor
15 10 Trailer Connector (Back-Up Lamps)
16 10 Trailer Connector (Left Turn Signal)
17 5 Saab: Ignition Switch
18 25 Stoplamp Switch
19 20 Cigar Lighter, Data Link Connector (DLC)
20 10 5.3L, 6.0L: Air Conditioner Relay
21 20 Fuel Pump Relay, Powertrain Control Module (PCM)
22 15 Electronic Adjustable Pedals (EAP) Relay
23 10 Right High-Beam Headlamp
24 10 Left High-Beam Headlamp
25 10 Powertrain Control Module (PCM) / Engine Control Module (ECM)
26 10 Stop Lamp Switch, A/T Shift Lock Actuator
27 10 Right Low-Beam Headlamp
28 10 Left Low-Beam Headlamp
29 15 Headlamp Driver Module (HDM) Relay
30 25 Turn Signal/Hazard Flasher Module
31 10 Body Control Module (BCM)
32 10 Inflatable Restraint Front Passenger Pressure System (PPS) Module, Inflatable Restraint Sensing and Diagnostic Module (SDM), Rollover Sensor
33 10 ’03-’08: Engine Cooling Fan (Fan Driver Module)
34 10 Ignition Relay No.1, Air Conditioner Relay, Park/Neutral Position (PNP) Switch, Headlamp Leveling Actuators, Inverting Driver Module, Stop Lamp Switch, Traction Control Switch, Headlamp Leveling Switch, Instrument Panel Cluster, Turn Signal/Multifunction Switch, Inside Rearview Mirror
35 10 ’03: EVAP Canister Purge Solenoid, EVAP Canister Vent Solenoid
15 ’04-’09: Electronic Adjustable Pedals (EAP) Relay, Back-Up Lamps (Park/Neutral Position (PNP) Switch)
36 15 4.2L: Powertrain Control Module (PCM) / Engine Control Module (ECM), Fuel Injectors, Ignition Coils
15 5.3L, 6.0L: Engine Control Module (ECM)
37 15 ’04-’08 (4.2L): Secondary Air Injection (AIR) Pump Relay, Secondary Air Injection (AIR) Pump, Secondary Air Injection (AIR) Solenoid
38 10 4.2L: Powertrain Control Module (PCM), Throttle Actuator Control (TAC) Module
15 ’03-’04 (5.3L): Heated Oxygen Sensors
15 ’09: Secondary Air Injection (AIR) Pump Relay
39 15 ’03: Back-Up Lamps (Park/Neutral Position (PNP) Switch)
10 ’04-’05: EVAP Canister Purge Solenoid, EVAP Canister Vent Solenoid
40 10 ’03-’05 (4.2L): Heated Oxygen Sensors
15 ’03-’04 (5.3L): Heated Oxygen Sensors
15 ’05-’09 (5.3L, 6.0L): 1-2 Shift Solenoid (1-2 SS) Valve, 2-3 Shift Solenoid (2-3 SS) Valve, 3-2 Shift Solenoid (2-3 SS) Valve, Torque Converter Clutch (TCC) Solenoid Valve, Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve, Transmission Control Module (TCM)
41 20 Headlamp Washer Relay, Rear Window Wiper Motor Relay
42 15 Front Fog Lamp Relay
43 30 Trailer Brake Wiring
44 15 Horn Relay
45 10 Instrument Panel Cluster (IPC)
46 10 ’05-’09 (5.3L, 6.0L): Engine Control Module (ECM)
47 15 ’05-’09: Regulated Voltage Control
48 15 ’09: Engine Control Module (ECM)
49 30 Trailer Connector
50 60 ABS – Electronic Brake Control Module (EBCM)
51 60 4.2L: Secondary Air Injection (AIR) Pump Relay
52 60 ’06-’09: Vehicle Stability Enhancement System (VSES) – Electronic Brake Control Module (EBCM)
53 –  –
54 –  –
55 40 ’06-’09: Blower Motor Control Module, Blower Motor Resistor Assembly
56 40 Starter Relay, Ignition Switch
57 –  –
58 40 ’03-’05: Blower Motor Resistor Assembly (HVAC Manual), Blower Motor Control Processor (HVAC Auto)
59 40 Ignition Switch
60 –  –
61 –  –
62 125 Fuse Block (Passenger Compartment)
63 15 ’09: Evaporative Emission (EVAP) Canister Purge Solenoid, Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor, Valve Lifter Oil Manifold (VLOM) Assembly
64 15 ’09 (Saab): Evaporative Emission (EVAP) Canister Purge Solenoid, Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
Relay
R1 Windshield Washer Fluid Pump
R2 High Beam Headlamps
R3 ’03-’04 (5.3L): Ignition (Fuse: “5”, “10”, “11”)
’05-’09: Powertrain Control Module (PCM) / Engine Control Module (ECM)
R4 4.2L: Air Conditioner
’09: Secondary Air Injection (AIR) Pump
R5  –
R6 Starter
R7 5.3L, 6.0L: Air Conditioner
R8 Fuel Pump
R9 Electronic Adjustable Pedals (EAP)
R10 Engine Cooling Fan
R11 Headlamp Driver Module (Low Beam Headlamps)
R12  –
R13 Headlamp Washer System
R14 Rear Window Washer Fluid Pump
R15 Front Fog Lamp
R16 Horn
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Cavalier (1995 – 2005) – fuse box diagram

Posted on by admin

Chevrolet Cavalier (1995 – 2005) – fuse box diagram

Year of production: 195, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

Passenger Compartment Fuse Box (’00-’05)

Chevrolet Cavalier - fuse box diagram - passenger compartment
Chevrolet Cavalier – fuse box diagram – passenger compartment
No. A Circuit Protected
1 20 Ignition Module
2 20 ’02-’05: Accessory Power Outlet
3 15 Right Headlamp
4 15 Horn
5 10 Powertrain Control Module (PCM)
6 10 Anti-lock Brake Solenoids
7 10 Radio, Interior Lamps, OnStar
8 10 Daytime Running Lamps: Fog Lamps
9 10 Body Control Module, Instrument Panel Cluster
10 10 Cruise Control
11 15 Left Headlamp
12 20 Cigarette Lighter, Interior Lamps, Exterior Lamps
13 20 Stop Lamps, Hazard Lamps, Anti-lock Brakes, Cruise Control
14 10 Brake Transaxle Shift Interlock (BTSI), Cruise Control, HVAC Compressor Control, Multi-Port Injection
15 15 Air Bag
16 10 Power Mirror, Data Link Connector
17 20 Park Lamps, Side Marker Lamps, Instrument Panel Lamps
18 15 Power Door Locks, Convertible Top
19 10 Anti-lock Brake, Coolant Fan, HVAC: Compressor Control
20 10 Body Control Module
21 10 Cavalier: Amplifier
20 Sunfire: Amplifier
22 10 Backup Lamps, Turn Signal Lamps
23 15 Fuel Pump, Fuel Injectors
24 15 ’01-’05: Remote Keyless Entry System
10 ’00: Remote Keyless Entry System
25 10 Instrument Panel Cluster, Electronic Brake Control Module
26 30 Rear Window Defogger
27 10 O2 Sensor Heater
28 25 Wiper/Washer
Relay
29 25 Power Windows, Power Sunroof
30 Convertible: Power Windows, Convertible Top
Relay
R1 ’05: Headlamps
R2 Daytime Running Lamps

Passenger Compartment Fuse Box (’95-’99)

Chevrolet Cavalier - fuse box diagram - passenger compartment
Chevrolet Cavalier – fuse box diagram – passenger compartment
No. A Protected Component
1 20 Engine Ignition, Multiport Fuel Injection
2 –  –
3 10 Headlamp
15 Right Headlamp
4 – –
5 10 Powertrain Control Module (PCM)
6 –  –
7 10 Alarm Module, Warning Chimes, Illuminated Entry, Trunk Lamp, Overhead Lamps, Map/Reading Lamps, Glove Box Lamp, Radio Power Mirrors
8 10 Daytime Running Lights, Fog Lamps
9 10 Alarm Module, Warning Chimes, Illuminated Entry
10 10 Cruise Control
11 20 Headlights (Flash to Pass)
15 Left Headlamp
12 15 Cigarette Lighter, Horn, Diagnostic Connector, Asynchronous Receiver/Transmitter (UART) Link
13 10 Instrument Panel Lamps
14 20 Stop Lamps, Hazard Lamps, ABS, Cruise Control, Exterior Lights
15 10 Automatic Transaxle, Brake Transaxle Shift Interlock (BTSI), Cruise Control, HVAC: Compressor Control, EGR (2.2L), Canister Purge Valve, A/C High Pressure Switch (2.3L)
16 15 Air Bag-DERM (Diagnostic Energy Reserve Module) Power
17 –  –
18 20 Park Lamps, Side Marker Lamps, Instrument Panel Lamps
19 –  –
20 20 Power Door Locks, Convertible Top
21 10 Heater-A/C Control, Crankcase Vent Heater (2.3L), Rear Window Defogger, Antilock Brake System, Engine Cooling Fan (2.2L)
22 10 Radio/Audio Systems
23 –  –
24 20 Turn Signals, Back-Up Lights
25 20 Fuel Pump, Fuel Injectors
26 10 Air Bag-DERM (Diagnostic Energy Reserve Module) Crank Signal
27 10 Instrument Panel, Antilock Brake Control Module
28 10 Instrument Panel, Powertrain Control Module (PCM), Asynchronous Receiver/Transmitter (UART) Link
29 30 Rear Window Defogger
30 10 Rear Oxygen Sensor Heater (2.3L Cal. Auto)
31 25 Wiper/Washer
Relay
32 20 Headlight, Daytime Running Lights
33 –  –
33 25 Power Windows, Sunroof
30 Convertible: Power Windows, Convertible Top

Engine Compartment Fuse Box

Chevrolet Cavalier - fuse box diagram - engine compartment
Chevrolet Cavalier – fuse box diagram – engine compartment
No. A Protected Component
1 10 ’95-’99: Starter and Charging System: Generator Voltage Sense
2 10 HVAC Compressor Control
3 10 PCM, Multiport Fuel Injection
4 30 HVAC Blower Control, HVAC Compressor Control
5 15 ’95-’99: ABS
6 10 ’02-’05: Starter Relay Control
7 –  –
8 10 ’95-’96: Tach
9 50 ’00-’05: Blower Relay Control, Multiport Fuel Injection
10 30 Cooling Fan
11 50 ’00-’05: ABS, Power Distribution
40 ’95-’99: ABS
12 40 Power Distribution (Lighting)
13 40 Power Distribution (Power ACC/Stop Lamp)
14 50 Power Distribution, Starter, Ignition, Charging System
Relay
R1 Blower Motor
R2 ’95-’99: ABS and Electronic Variable Orifice Steering
R3 Cooling Fan
R4 ’02-’05: Starter
R5 Fuel Pump
R6 Air Conditioner
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Caprice (1994 – 1996) – fuse box diagram

Posted on by admin

Chevrolet Caprice (1994 – 1996) – fuse box diagram

Year of production: 1994, 1995, 1996

Passenger Compartment Fuse Box

Chevrolet Caprice - fuse box diagram - passenger compartment
Chevrolet Caprice – fuse box diagram – passenger compartment
No. A Circuit Protected
1 –  –
2 –  –
3 –  –
4 –  –
5 –  –
6 15 ’94: Turn Signal Lamp Flasher, Park Neutral Position Switch
7 10 ’94: Anti-Lock Brake (ABS) Control Module
10 ’95 (Police): HUD Projector, Night Vision Control Unit, Auxiliary Display
8 15 Tailgate Switch Module
9 10 ’94: Radio
15 ’95: Radio
10 25 Windshield Wiper Motor Module
11 10 Rear Defog Relay, Air Bag, I/P Cluster, Headlamp Switch
12 10 ’94 (Wagon): Auto Level Control
15 ’95: Turn Signals, Back-up Lamp, PRNDL Position Sensor
13 10 Automatic Inside Rearview Mirror, Chime Module, TCC Cruise Brake Switch, Twilight Sentinel, Daytime Running Lights Canada), Keyless Entry System
14 10 Pass-Key II
15 15 Air Bag
16 10 Cruise Control
17 20 Heater & A/C Control
18 10 ’95: Seat Heater, Power Steering Control Module
19 –  –
20 10 Instrument Cluster, Daytime Running Lights (Canada)
21 15 ’95 (Police): RH Spot Lamp
22 15 ’95 (Police): LH Spot Lamp
23 –  –
24 10 Air Bag, Theft Deterrent Relay
25 –  –
26 20 ’94: Power Antenna
10 ’95 (Police): Night Vision Roof Unit
27 10 ’94: Heat Sensor, Trunk Lamp
10 ’95: Automatic Level Control, Trunk Lamp
28 20 Cigarette Lighter
29 20 Keyless Entry System, Trunk Release, Rear Glass Release Liftgate Wiper Latch Switch (Wagon)
30 15 Radio
31 20 Headlamp Switch, Twilight Sentinel, Daytime Running Lights (Canada)
32 25 Horn
33 10 Chime Module, Heater and A/C, Glove Box Light, Instrument Cluster
34 10 Pass-Key II
35 15 Dome Lamp, Front Reading Lights, Rear Reading Lights, Automatic Inside Rearview Mirror, Illuminated Visor Vanity Mirror, Power Door Locks, Front Door Courtesy Lights, Rear Door Courtesy Lights, Power Mirror Sw. Instrument Panel Courtesy Lights
36 15 Wagon: Rear Wiper
37 20 Hazard Warning Flasher, Stop Lights
38 30 ’95: Blower Motor Control
39 20 ’95: Power Door Lock Relay
40 20 ’95: Heated Seats
41 10 Cornering Lamps, Side Marker Lamp, Turn-Park Lamp
42 10 Instrument Cluster, Radio, Brightness Control, Headlamp and Instrument Panel Lamp Dimmer Switch, Panel Lamps Dimming Module
43 10 License Lights, Taillights, Tail/Stop/Turn Lights, Markerlamps
44 10 Heater Power Mirrors
45 10 ’95 (Police): HUD Projector
Circuit Breaker
46 20 ’95: Power Seat Recline, Lumbar Support, Power Antenna Relay
47 30 Power Window, Power Window Lockout Switch
48 30 ’94: Door Locks, Power Seat Switch, Passenger Seat Lumbar Controls
25 ’95: Door Locks, Power Seat Switch
49 30 Rear Window Defogger
50 –  –

Engine Compartment Fuse Box

Chevrolet Caprice - fuse box diagram - engine compartment
Chevrolet Caprice – fuse box diagram – engine compartment
No. A Protected Component
1 10 Fuel Injector (2, 3, 5, 8)
2 10 Fuel Injector (1, 4, 6, 7)
3 20 ’94: Primary Air Pump Relay, Underhood Lamp
25 ’95: Primary Air Pump Relay, Underhood Lamp
4 10 ’94: Secondary Engine Coolant Fan, Generator
15 ’95: Automatic Transmission, Mass Air Flow Sensor (MAF), Secondary Air Pump Relay, EGR Control Valve Relay, Evaporative Emission Canister Purge Valve Solenoid, LH Heated Oxygen Sensor, RH Heated Oxygen Sensor
5 10 Control Module (PCM), Ignition Coil Electronic Brake Control Module
6 15 Fuel Pump Relay, Fuel Pump and Engine Oil Pressure Switch Powertrain Control Module (PCM)
7 10 Primary Engine Coolant Fan, A/C Compressor Relay
8 10 Automatic Transmission, Mass Air Flow Sensor (MAF), Secondary Air Pump Relay, EGR Control Valve Relay, Evaporative Emission Canister Purge Valve Solenoid, LH Heated Oxygen Sensor, RH Heated Oxygen Sensor
9 25 Automatic Level Control Air Compressor (ALC)
10 40 Secondary Engine Coolant Fan
11 40 Primary Engine Coolant Fan
12 60 Fuse Block
13 60 Main
80 Main
Relay
R1 Coolant Fan
R2 Coolant Fan
R3 Air Pump
R4 A/C Compressor
R5 Fuel Pump
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Caprice (1991 – 1993) – fuse box diagram

Posted on by admin

Chevrolet Caprice (1991 – 1993) – fuse box diagram

Year of production: 1991, 1992, 1993

Fuse box diagram

Chevrolet Caprice - fuse box diagram
Chevrolet Caprice – fuse box diagram
No. A Circuit Protected
1 15 Underhood Light, Power Antenna, Keyless Entry, Courtesy Lights, Compass/Lighted Mirror, Horn, Lighted Visor, Door Locks, Power Mirrors, Rear Glass Release, Audible Warning System
2 15 Audible Warning System, Cigarette Lighter, Rear Wiper, Glove Box Light, Radio, Trunk Light, Rear Gate Ajar Light, Trunk Release
3 10 ’91: Anti-Lock Brake System
10 ’92-’93: Bose Amplifier
4 25 ’91: Bose Radio Amplifier
10 ’92: Electronic A/C
10 ’93 (Sedan): Electronic Level Control
25 ’93 (Wagon): Electronic Level Control
5 7.5 Instrument Panel Lights
6 20 Keyless Entry, Alternator, Heater, Air Conditioner, Daytime Running Lights
7 30 ’91: Electronic A/C Blower Motor
8 15 Wagon: Rear Wiper/Washer
9 10 Radio
10 25 Windshield Wiper/Washer, Washer Fluid Level
11 7.5 Fuel Injectors
12 10 Supplemental Inflatable Restraint
13 10 Speed Signal Module, ECM, EGR Solenoid, Air Control ESC Module, Canister Purge, Cluster Electronics/Warning Indicator
14 15 Twilight Sentinel, Parking, Side Marker & License Lights, Daytime Running Lights
15 30 Rear Window Defogger
16 7.5 Heated Mirrors
17 15 Audible Warning System, TCC Brake Switch, Compass Mirror, Supplemental Inflatable Restraint, Gauges/Warning Indicator, Headlight Switch Illumination, Rear Window Defogger, Fluid Warning, Anti-Lock Brake System, Twilight Sentinel, Daytime Running Lights, Low Oil Module, Park/Neutral Relay, Height Sensor, Power Vent Switch (’91)
18 15 Turn Signal Lights, Back-Up Lights Cruise Control
19 20 Stoplights, Hazard Lights
20 5 ECM, Supplemental Inflatable Restraint

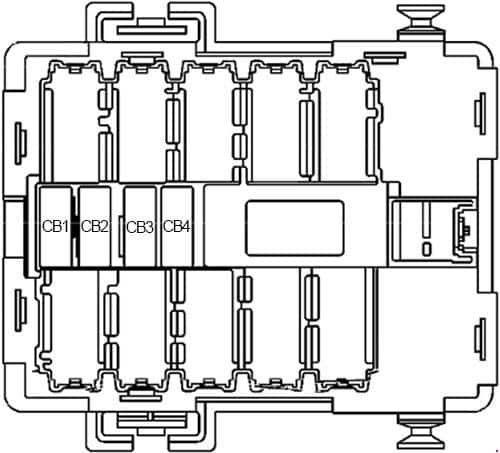

Circuit Breaker
21 30 Keyless Entry, Power Door Locks, Power Seats, Tailgate Lock Relay, Power Vent Motor (’91)
22 –  –
23 30 Power Windows
24 –  –
25 –  –

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
