Opel Movano B (2016) – fuse box diagram

Posted on 24 January 201627 July 2018 by admin

Opel Movano B (2016) – fuse box diagram

Years: 2016

Engine compartment fuse box

Located below the coolant expansion tank. Some circuits may be protected by several fuses

Symbol	Circuit
	Right side lights
	Left side lights
	Right low beam
	Left low beam
	Front fog light
	Left high beam
	Right high beam
	ABS
	Windscreen wiper
	Heating and ventilation system / Air conditioning
	Heated windscreen

Instrument panel fuse box

Located behind the trim panel on the left-hand side of the instrument panel. Pull upper part of trim panel to remove. Do not store any objects behind this panel.

Some circuits may be protected by several fuses.

Symbol	Circuit
	Infotainment system / Seat heating / Vehicle display screen / Audio connec‐ tions / Alarm
	Power outlet
	Cigarette lighter
	Instrument panel
	Central locking
	Interior lights
	Turn signals / Rear fog lights / Body control module
	Diagnostic connector
	ABS / Electronic Stability Program
	Interior lights / Brake lights
	Body control module
	Brake light
	Body control module / Power windows / Heating and ventilation system / Air conditioning
	Left heated rear window
	Right heated rear window
	Windscreen washer
	Electronic immobiliser
	Heated seats
	Cornering light
	Hands-free connection
	Tachograph
	Power take-off
	Horn
	Preheating / Diesel fuel filter
	Climate control fan
	Heated exterior mirrors
	Left-hand side light
	Right-hand side light
	Pneumatic suspension
	Navigation system
	Additional adaptations
	Power windows / Body control module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Opel Movano B (2012 – 2015) – fuse box diagram

Posted on 24 January 201627 July 2018 by admin

Opel Movano B (2012 – 2015) – fuse box diagram

Years: 2012, 2013, 2014, 2015

Engine compartment fuse box

Located below the coolant expansion tank. Some circuits may be protected by several fuses.

Symbol	Circuit
	Right side lights
	Left side lights
	Right low beam
	Left low beam
	Front fog light
	Left high beam
	Right high beam
	ABS
	Windscreen wiper
	Air conditioning
	Heated windscreen

Instrument panel fuse box

Located behind the trim panel on the left-hand side of the instrument panel. Pull upper part of trim panel to remove. Do not store any objects behind this panel. Some circuits may be protected by several fuses.

Symbol	Circuit
	Infotainment system, seat heating, vehicle display screen, audio connections, alarm
	Power outlet
	Cigarette lighter
	Instrument panel
	Central locking
	Turn signals, rear fog lights, body control module
	Diagnostic connector
	ABS, Electronic stability program
	Interior lights, brake lights
	Body control module
	Brake light
	Body control module, power windows, air conditioning
	Left heated rear window
	Right heated rear window
	Windscreen washer
	Electronic immobiliser
	Heated seats
	Cornering light
	Hands-free connection
	Tachograph
	Power take-off
	Horn
	Preheating, diesel fuel filter
	Climate control fan
	Additional adaptations
	Power windows, body control module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Opel Movano B (2010 – 2011) – fuse box diagram

Posted on 24 January 201627 July 2018 by admin

Opel Movano B (2010 – 2011) – fuse box diagram

Years: 2010, 2011

Engine compartment fuse box

Located next to the coolant expansion tank.

Symbol	Circuit
	Right side lights
	Left side lights
	Right low beam
	Left low beam
	Front fog light
	Left high beam
	Right high beam
	ABS
	Windscreen wiper
	Air conditioning
	Heated windscreen

Instrument panel fuse box

Located behind the trim panel on the driver’s side of the instrument panel. Pull upper part of trim panel to remove. Do not store any objects behind this panel.

Some circuits may be protected by several fuses.

Symbol	Circuit
	Infotainment system, seat heating, vehicle display screen, audio connections, alarm
	Power outlet
	Cigarette lighter
	Instrument panel
	Central locking
	Turn signals, rear fog lights, body control module
	Diagnostic connector
	ABS, Electronic Stability Program
	Interior lights, brake lights
	Body control module
	Brake light
	Body control module, power windows, air conditioning
	Left heated rear window
	Right heated rear window
	Windscreen washer
	Electronic immobiliser
	Heated seats
	Cornering light
	Hands-free connection
	Tachograph
	Climate control fan
	Additional adaptations
	Power windows, body control module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Opel Mokka (2016) – fuse box diagram

Posted on 23 January 201627 July 2018 by admin

Opel Mokka (2016) – fuse box diagram

Years: 2016

Engine compartment fuse box

Opel Mokka - bezpieczniki - komora silnika — Opel Mokka – fuse box – engine compartment

The fuse box is in the engine compartment. Disengage the cover, lift it upwards and remove.

Mini Fuses

Number	Circuit
1	Sunroof
2	Exterior mirrors
3	—
4	—
5	Electrical brake control module
6	Intelligent battery sensor
7	—
8	Transmission control module
9	—
10	Headlight levelling
11	Rear window wiper
12	Heated rear window
13	Headlight actuator (left hand)
14	Heated exterior mirrors
15	—
16	Seat heating
17	Transmission control module
18	Engine control module
19	Fuel pump
20	—
21	Cooling fan
22	—
23	Ignition coil, Engine control module
24	Washer pump
25	Headlamp actuator (right hand)
26	Engine control module
27	—
28	Ignition
29	Ignition
30	Exhaust system
31	Left-hand high beam
32	Right-hand high beam
33	Engine control module
34	Horn
35	Air conditioning system
36	Front fog lamp

J-cases Fuses

Number	Circuit
1	Electrical brake control module
2	Front wiper
3	Power module
4	Power terminal of instrument panel fuse box
5	—
6	Fuel heater
7	—
8	Cooling fan
9	Cooling fan
10	Engine control module, Glow plug
11	Starter

Instrument panel fuse box

Opel Mokka - bezpieczniki - deska rozdzielcza — Opel Mokka – fuse box – instrument panel

Interior fuse block is located on the underside of the driver’s side instrument panel. To access the fuses, remove the storage. To remove the storage, open and pull it.

Mini Fuses

Number	Circuit
1	Body control module
2	Body control module
3	Body control module
4	Body control module
5	Body control module
6	Body control module
7	Body control module
8	Body control module
9	Ignition switch
10	Safety diagnosis module
11	Data link connector
12	Climate control
13	Tailgate
14	Park assist
15	Lane departure warning/Interior mirror
16	Adaptive forward lighting
17	Power window driver
18	Rain sensor
19	Body control module/Regulated voltage control
20	Steering wheel
21	AC accessory power outlet/ Automatic transmission
22	Cigarette lighter/DC accessory power outlet
23	Spare
24	Spare
25	Spare
26	Spare
27	Instrument panel cluster/Auxil‐ iary heater/Clutch switch
28	Adaptive forward lighting/ Voltage converter/Headlamp switch
29	Spare
30	Spare
31	Instrument panel cluster
32	Infotainment system/Chime
33	Display, Infotainment system
34	Onstar UHP/DAB

S/B Fuses

Number	Circuit
01	Spare
02	Spare
03	Power windows front
04	Power windows rear
05	Logistic mode
06	Spare
07	Spare
08	Spare

Load compartment fuse box

Opel Mokka - bezpieczniki - bagaznik — Opel Mokka – fuse box – load compartment

It is located in the left side of rear compartment. To access the fuses, remove the cover.

Mini Fuses

Number	Circuit
1	Seat, lumbar support, driver
2	Seat, lumbar support, passenger
3	Amplifier
4	Trailer socket
5	All-wheel drive
6	Spare
7	LPG system
8	Spare
9	Spare
10	Spare
11	Trailer control module
12	Spare
13	Heated steering wheel
14	Trailer socket
15	Spare
16	Water in fuel sensor
17	Interior mirror/Rear view camera
18	LPG system

S/B Fuses

Number	Circuit
01	Power seat driver
02	Power seat passengera
03	Trailer control module
04	Voltage converter
05	Battery
06	Headlight washer
07	Spare
08	Spare
09	Spare

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Opel Mokka (2013 – 2015) – fuse box diagram

Posted on 22 January 201627 July 2018 by admin

Opel Mokka (2013 – 2015) – fuse box diagram

Years: 2013, 2014, 2015

Engine compartment fuse box

The fuse box is in the engine compartment. Disengage the cover, lift it upwards and remove.

Mini Fuses

Number	Circuit
1	Sunroof
2	Exterior mirrors
3	—
4	—
5	Electrical brake control module
6	Intelligent battery sensor
7	—
8	Transmission control module
9	Body control module
10	Headlight levelling
11	Rear window wiper
12	Heated rear window
13	Headlight actuator (left hand)
14	Heated exterior mirrors
15	—
16	Seat heating
17	Transmission control module
18	Engine control module
19	Fuel pump
20	—
21	Cooling fan
22	—
23	Ignition coil, Engine control module
24	Washer pump
25	Headlamp actuator (right hand)
26	Engine control module
27	—
28	Engine control module
29	Engine control module
30	Exhaust system
31	Left-hand high beam
32	Right-hand high beam
33	Engine control module
34	Horn
35	Climate control, air conditioning system
36	Front fog lamp

J-cases Fuses

Number	Circuit
1	Electrical brake control module
2	Front wiper
3	Engine control module
4	Engine control module
5	—
6	Fuel heater
7	—
8	Cooling fan
9	Cooling fan
10	Engine control module, Glow plug
11	Starter

Instrument panel fuse box

Interior fuse block is located on the underside of the driver’s side instrument panel. To access the fuses, remove the storage. To remove the storage, open and pull it.

Mini Fuses

Number	Circuit
1	Body control module
2	Body control module
3	Body control module
4	Body control module
5	Body control module
6	Body control module
7	Body control module
8	Body control module
9	Door locks
10	Safety diagnosis module
11	Door locks
12	Climate control
13	Tailgate
14	Park assist
15	Lane departure warning, Interior mirror
16	Adaptive forward lighting
17	Power window driver
18	Rain sensor
19	Spare
20	Steering wheel
21	Transmission control module
22	Cigarette lighter
23	Spare
24	Spare
25	Spare
26	Safety diagnosis module
27	Instrument panel cluster
28	Adaptive forward lighting
29	Spare
30	Spare
31	Instrument panel cluster
32	Infotainment, auxiliary, power outlet
33	Display, Infotainment system
34	Onstar UHP/DAB

S/B Fuses

Number	Circuit
01	Spare
02	Spare
03	Power windows front
04	Power windows rear
05	Logistic mode
06	Spare
07	Spare
08	Spare

Load compartment fuse box

It is located in the left side of rear compartment. To access the fuses, remove the cover.

Mini Fuses

Number	Circuit
1	Seat, lumbar support, driver
2	Seat, lumbar support, passenger
3	Amplifier
4	Trailer socket
5	All-wheel drive
6	Display
7	Spare
8	Trailer
9	Spare
10	Spare
11	Trailer
12	Navigation
13	Heated steering wheel
14	Trailer socket
15	Steering wheel
16	Water in fuel sensor
17	Interior mirror
18	Spare

S/B Fuses

Number	Circuit
01	Power seat driver
02	Power seat passengera
03	Trailer
04	Voltage converter
05	Battery
06	Headlight washer
07	Spare
08	Spare
09	Spare

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Opel Meriva B (2012 – 2016) – fuse box diagram

Posted on 22 January 201627 July 2018 by admin

Opel Meriva B (2012 – 2016) – fuse box diagram

Years: 2012, 2013, 2014, 2015, 2016

Engine compartment fuse box

Opel meriva bezpieczniki - komora silnika — Opel Meriva B – fuse box – engine compartment

Opel Meriva - bezpieczniki - komora silnika (dół) — Opel Meriva B – fuse box – engine compartment

The fuse box is in the front left of the engine compartment.

Number	Circuit
1	Starter
2	—
3	Fuel filter, cooling
4	Horn
5	Terminal 30
6	Engine control module, transmission control unit
7	Fog light
8	Engine cooling
9	Engine cooling
10	Vacuum pump
11	Ignition, preheating
12	Headlamp levelling
13	Air conditioning system, terminal 15
14	Transmission control unit
15	High beam right
16	High beam left
17	Engine control module
18	Engine control module, terminal 15
19	Airbag
20	Engine control module
21	Engine control module, terminal 87
22	Electrical parking brake
23	Tyre repair kit
24	Fuel pump
25	ABS
26	Heated rear window
27	ABS
28	Interior fan
29	Cigarette lighter
30	Air conditioning system
31	Front power window, left
32	Front power window, right
33	Mirror heating
34	ABS
35	Airbag

Instrument panel fuse box

Opel Meriva - bezpieczniki - deska rozdzielcza — Opel Meriva B – fuse box – intrument panel

The fuse box is behind the storage compartment in the instrument panel. Open compartment, compress the locking tabs, fold compartment down and remove.

In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox, pull cover upwards and remove.

Number	Circuit
1	Radio
2	Display, instrument, telephone
3	Radio
4	Ignition switch, immobiliser
5	Windscreen washer, rear screen washer
6	Central locking system, tailgate
7	Central locking system
8	Display, instrument, telephone
9	Heated steering wheel
10	Rear left door unlocking
11	Rear right door unlocking
12	Courtesy light
13	Rain sensor, interior mirror, outside mirrors
14	—

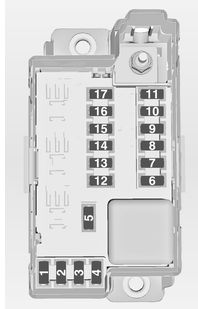

Load compartment fuse box

Opel Meriva - bezpieczniki - bagażnik — Opel Meriva B – fuse box – load compartment

The fuse box is on the left side of the load compartment behind a cover. Remove the cover.

Disengage the four retaining lugs and remove the cover.

Number	Circuit
1	Adaptive forward lighting
2	—
3	—
4	—
5	—
6	Rear power window, right
7	Adaptive forward lighting
8	Trailer module, Trailer socket
9	Seat, lumbar support, left
10	Rear power window, left
11	Park assist
12	Electrical sunblind
13	—
14	Heated front seats
15	Trailer module
16	Seat, lumbar support, right
17	—

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Opel Meriva B (2010 – 2011) – fuse box diagram

Posted on 20 January 201627 July 2018 by admin

Opel Meriva B (2010 – 2011) – fuse box diagram

Years: 2010, 2011

Engine compartment fuse box

The fuse box is in the front left of the engine compartment.

Number	Circuit
1	Starter
2	—
3	Fuel filter, cooling
4	Horn
5	Terminal 30
6	Engine control module, transmission control unit
7	Fog light
8	Engine cooling
9	Engine cooling
10	Vacuum pump
11	Ignition, preheating
12	Headlamp levelling
13	Air conditioning system, terminal 15
14	Transmission control unit
15	High beam right
16	High beam left
17	Engine control module
18	Engine control module, terminal 15
19	Airbag
20	Engine control module
21	Engine control module, terminal 87
22	Electrical parking brake
23	Tyre repair kit
24	Fuel pump
25	ABS
26	Heated rear window
27	ABS
28	Interior fan
29	Cigarette lighter
30	Air conditioning system
31	Front power window, left
32	Front power window, right
33	Mirror heating
34	ABS
35	Airbag

Instrument panel fuse box

The fuse box is behind the storage compartment in the instrument panel. Open compartment, compress the locking tabs, fold compartment down and remove.

In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox, pull cover upwards and remove.

Number	Circuit
1	Rear left door unlocking
2	Display, instrument, telephone
3	Radio
4	Ignition switch, immobiliser
5	Windscreen washer, rear screen washer
6	Central locking system, tailgate
7	Central locking system
8	Rear right door unlocking
9	Courtesy light
10	Heated steering wheel
11	—
12	—
13	Rain sensor, interior mirror, outside mirrors
14	—

Load compartment fuse box

The fuse box is on the left side of the load compartment behind a cover. Remove the cover.

Disengage the four retaining lugs and remove the cover.

Number	Circuit
1	Adaptive forward lighting
2	—
3	—
4	—
5	—
6	Rear power window, right
7	Adaptive forward lighting
8	Trailer module, Trailer socket
9	Seat, lumbar support, left
10	Rear power window, left
11	Park assist
12	Electrical sunblind
13	—
14	Heated front seats
15	Trailer module
16	Seat, lumbar support, right
17	—

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Opel Meriva A (2002 – 2010) – fuse box diagram

Posted on 20 January 201631 July 2018 by admin

Opel Meriva A (2002 – 2010) – fuse box diagram

Years: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

Fuse box in passenger compartment

Opel Meriva A - fuse box - passenger compartment — Opel Meriva A – fuse box – passenger compartment

Number	Circuit
1	Central control unit
2	Immobiliser, hazard warning lamps, exterior lighting
3	Headlamp washer system
4	Infotainment system, diesel engine
5	—
6	—
7	Starter, diesel engine: engine controller
8	Horn
9	Fuel injection system, fuel pump, stationary heater
10	Turn signal lamps
11	Infotainment system, Information display, Infotainment system
12	Heated rear window, exterior mirrors
13	Central locking, anti-theft alarm system
14	Engine control Petrol engine: Diesel engine:
15	Engine control unit, Z 17 DTH engine
16	Accessory socket, cigarette lighter
17	—
18	Adaptive Forward Lighting
19	Central locking system
20	Interior lighting, reading lamp
21	Windscreen washer system
22	Rear electric window
23	Tilt/slide sun roof, skylight roof
24	Anti-theft alarm system
25	Rear window wiper
26	Ignition system, engine electronics
27	Engine control, airbag, ESP – Plus
28	Air conditioning system
29	Front left electric window
30	—
31	Engine control, Z 17 DTH engine
32	Front right electric window
33	Central control module, immobiliser, control indicators
34	Windscreen wipers
35	Interior lighting, interior mirror, information display
36	Brake light, ABS, ESP -Plus
37	Cigarette lighter, auxiliary heater
38	Seat heater (left)
39	Seat heater (right)
40	Adaptive Forward Lighting, automatic headlamp range adjustment
41	Reversing lamps
42	Engine cooling, lighting
43	Left parking lamp
44	Right parking lamp
45	Fog tail lamp
46	Fog lamps
47	Towing equipment, accessory socket
48	Diesel filter heater
49	—
50	Diesel filter heater
51	Left dipped beam: Xenon headlamp Halogen headlamp
52	Right dipped beam: Xenon headlamp Halogen headlamp
53	Sun roof, electric windows, radio
54	Main beam (left)
55	Main beam (right)
56	—

Fuse box in engine compartment

Opel Meriva A - fuse box - engine compartment — Opel Meriva A – fuse box – engine compartment

The fuse box is at the front left of the engine compartment.

Number	Circuit
1	Interior fan
2	Power steering
3	ABS
4	Easytronic diesel preheating system
5	Heated rear window
6	Engine cooling
7	Starter
8	Engine cooling

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Opel KARL – fuse box diagram

Posted on 19 January 201627 July 2018 by admin

Opel KARL (from 2015)- fuse box diagram

Years: 2015, 2016

Engine compartment fuse block

Opel KARL - bezpieczniki - komora silnika — Opel KARL – fuse box – engine compartment

The fuse box is in the front left of the engine compartment. Disengage the cover, lift it upwards and remove.

Number	Circuit
1	Tailgate latch
2	—
3	Rear demist
4	Outside rear-view mirror heater
5	Sunroof
6	Continuously Variable transmission control module
7	Mass air flow sensor
8	Auxiliary heater pump
9	Anti-lock brake system valve
10	Regulated voltage control
11	Rear view camera
12	—
13	—
14	Engine control module/ Transmission control module
15	Fuel injection control module/Starter
16	Fuel pump moto
17	Engine control module 1
18	Engine control module 2
19	Injector, Ignition
20	Air conditioning system
21	Intelligent battery sensor
22	Electric steering column lock
23	Cooling fan low
24	–
25	Outside rear-view mirror switch
26	Engine control module/ Automated manual gearbox module
27	Canister vent solenoid
28	Brake pedal switch
29	Auxiliary occupant sensing
30	Headlight levelling motor
31	Horn
32	Front fog lamp
33	Main beam left
34	Main beam right
35	—
36	Rear wiper motor
37	Cornering lamp left
38	Washer pump motor
39	Cornering lamp right
40	—
41	—
42	Starter 2
43	In-panel bussed electric centre
44	Automated manual gearbox
45	Starter 1
46	Anti-lock brake system pump
47	Cooling fan hi
48	Front wiper motor
49	In-panel bussed electric centre accessory/RAP power

Instrument panel fuse block

Opel KARL - bezpieczniki - deska rozdzielcza — Opel KARL – fuse box – instrument panel

In left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel.

Open compartment, compress the locking tabs, fold compartment down and remove.

Number	Circuit
1	Onstar
2	HVAC module
3	Instrument panel cluster
4	Continuously Variable transmission control module
5	Radio
6	Body control module 1 (CVT Stop & Start)
7	Side blind spot alert/Rear parking assist
8	Data link connection
9	Electric steering column lock
10	Sensing and Diagnostic module
11	DC-DC converter
12	—
13	Electronic toll collection system
14	Linear power module
15	Passive entry & passive start
16	Discrete logic ignition switch (Non CVT stop&start)
17	Front collision avoidance
18	Instrument panel cluster
19	Reflected LED Alert Display
20	Headlight levelling switch
21	Front power window
22	Rear power window
23	—
24	Automated manual gearbox module
25	Auxiliary power socket
26	Sunroof
27	—
28	Body control module 8
29	Body control module 7
30	Body control module 6
31	Body control module 5
32	Body control module 4
33	Body control module 3
34	Body control module 2 (Non CVT Stop & Start)
35	Body control module 1 (Non CVT Stop & Start)
36	Discrete logic ignition switch (CVT stop&start)
37	Steering wheel controls backlighting
38	—
39	Logistic/DC-DC converter
40	Driver express power window
41	Blower motor
42	Front heated seat
43	HVAC module
44	Heated steering whee
45	Body control module 2 (CVT Stop & Start)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Opel Insignia (2016) – fuse box diagram

Posted on 19 January 201627 July 2018 by admin

Opel Insignia (2016) – fuse box diagram

Years: 2016

Engine compartment fuse box

Opel Insignia - bezpieczniki - komora silnika — Opel Insignia – fuse box – engine compartment

The fuse box is in the front left of the engine compartment. Disengage the cover, lift it upwards and remove.

Number	Circuit
1	Transmission control module
2	Engine control module
3	—
4	—
5	Ignition, Transmission control module, Engine control module
6	Windscreen wiper
7	—
8	Fuel injection, ignition system
9	Fuel injection, ignition system
10	Engine control module
11	Lambda probe
12	Starter
13	Sensor throttle heating
14	Lighting
15	Rear window wiper
16	Vacuum pump, mass air flow meter, water in fuel sensor, DC transformer
17	—
18	Adaptive forward lighting
19	Adaptive forward lighting
20	Fuel pump
21	Rear power windows
22	ABS
23	Variable effort steering
24	Front power windows
25	Power outlets
26	ABS
27	Electrical parking brake
28	Heated rear window
29	Left power seat
30	Right power seat
31	Air conditioning system
32	Body control module
33	Heated front seats
34	Sunroof
35	Infotainment system
36	—
37	Right high beam
38	Left high beam
39	—
40	—
41	Vacuum pump
42	Radiator fan
43	Battery, DC transformer (only on vehicles with stop-start system)
44	Headlamp washer system
45	Radiator fan
46	Terminal 87, main relay
47	Lambda probe
48	Fog lights
49	Right low beam
50	Left low beam
51	Horn
52	Ignition
53	Ignition, ventilated front seats
54	Ignition
55	Power windows, mirror folding
56	Windscreen washer
57	—
58	—
59	Diesel fuel heating, emission control system
60	Mirror heating
61	Mirror heating
62	—
63	Rear window sensor
64	Adaptive forward lighting
65	Auxiliary pump (only on vehicles with stop-start system)
66	Rear window washer system
67	Fuel system control module
68	—
69	Vehicle battery sensor
70	Rain sensor
71	Vehicle battery sensor

Instrument panel fuse box

Opel Insignia - bezpieczniki - deska rozdzielcza — Opel Insignia – fuse box – intrument panel

In left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel. Open compartment, compress the locking tabs, fold compartment down and remove.

In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover.

Number	Circuit
1	Infotainment system, Info display
2	Body control unit
3	Body control unit
4	Infotainment system, Info display
5	Infotainment system, Info display
6	Cigarette lighter
7	Power outlet
8	Body control unit
9	Body control unit
10	Body control unit
11	Interior fan
12	—
13	—
14	Diagnostic connector
15	Airbag
16	Central locking system, tailgate
17	Air conditioning system
18	Transportation fuse
19	Memory
20	—
21	Instrument
22	Ignition
23	Body control unit
24	Body control unit
25	—
26	Power outlet load compartment

Load compartment fuse box

Opel Insignia - bezpieczniki - bagażnik — Opel Insignia – fuse box – load compartment

The fuse box is on the left side of the load compartment behind a cover. Remove the cover.

Number	Circuit
1	Central locking system, Power tailgate
2	Trailer module
3	—
4	—
5	Trailer socket
6	Steering wheel heating
7	Selective catalytic reduction system
8	Trailer socket
9	Sunroof
10	Central locking system, tailgate
11	—
12	Selective catalytic reduction system
13	—
14	—
15	Power tailgate lock
16	Air conditioning system
17	Selective catalytic reduction system
18	Selective catalytic reduction system
19	Side obstacle detector
20	Side obstacle detector, venti‐ lated front seats
21	Active damping system/High beam assist/Cruise control/ Traffic sign assistant/Lane departure warning/Trailer module
22	Anti-theft alarm system
23	All-wheel drive, anti-theft alarm system
24	—
25	—
26	—
27	—
28	—
29	Trailer module, transportation fuse
30	Side obstacle detector
31	—
32	—
33	—
34	Sunroof
35	—
36	—
37	—

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market..
