Nissan Sentra (2000 – 2006) – fuse box diagram

Posted on by admin

Nissan Sentra (2000 – 2006) – fuse box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006

Passenger Compartment

Nissan Sentra - fuse box diagram - passenger compartment - location
Nissan Sentra – fuse box diagram – passenger compartment – location
  1. Fuse box
  2. Time Control Unit/Smart Entrance Control Unit
  3. Combination Flasher Unit
  4. Engine Control Module Relay/Throttle Control Motor Relay
  5. Air Bag Diagnosis Sensor Unit
  6. —
  7. Immobilizer Control Unit
  8. Daytime Ligh Control Unit
  9. Rear Window Defogger Relay
  10. Fuel Pump Relay

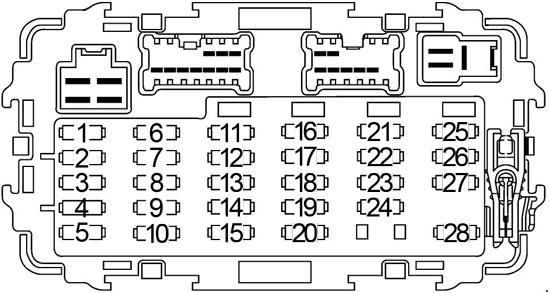

Passenger Compartment Fuse Box

Nissan Sentra - fuse box diagram - passenger compartment fuse box
Nissan Sentra – fuse box diagram – passenger compartment fuse box
No.
 A
 Circuit Protected
1 10 Audio, Door Mirror Remote Control Switch, Power Socket Relay, Smart Entrance Control Unit (SECU), Satellite Radio Tuner (’04-’06), CD Changer (’05-’06)
2 10 Stop Lamp Switch, Stop lamp, High-Mounted Stop Lamp
3 15 Power Socket Relay
4 20 Rear Window Defogger Relay
5 15 Remote Keyless Entry Relay, Hazard Switch
6 10 Trunk Lid Opener Relay, Trunk Lid Opener Actuator
7 20 Rear Window Defogger Relay
8 15 Heated Oxygen Sensor, Air Flow Ratio Sensor
9 10 ’00-’03: EVAP Canister Vent Control Valve, Vacuum Cut Valve Bypass Valve
10 10 Daytime Light Control Unit, Time Control Unit, Smart Entrance Control Unit (SECU), Power Window Relay, Sunroof Switch, Stop Lamp Switch (QR), Rear Window Defogger Relay, Data Link Connector, ASCD Brake Switch (’02-’06), A/T Device (’00-’03), Trunk Lid Opener Relay 2 (’00), ASCD Control Unit (’00-’02)
11 10 Transmission Control Module (TCM), Revolution Sensor, Turbine Revolution Sensor (QR)
12 10 Key Switch, Combination Meter, Security Indicator Light, Transmission Control Module (TCM), Data Link Connector
13 10 Time Control Unit, Heated Mirror Relay, Trunk Room Lamp, Interior Lamp
14 15 Blower Motor
15 10 Air Control, Air Conditioning Relay (’02-’06), Thermo Control Amplifier (’00-’02)
16 15 Blower Motor
17 10 Injector, Engine Control Module, Fuel Pump Relay
18 10 Air Bag Diagnosis Sensor Unit
19 –  –
20 10 Park and Neutral Position Switch (Automatic Transmission), Immobilizer Control Unit (QR), Clutch Interlock Relay (Manual Transmission), Cooling Fan Relay 1, Cooling Fan Relay 2, Cooling Fan Relay 3 (QR), Throttle Control Motor Relay (’00-’02), EVAP Canister Purge Volume Control Solenoid Valve (’00-’03), Intake Valve Timing Control Solenoid Valve (’00-’02), Swirl Control Valve Control Solenoid Valve (’00-’01), VIAS Control Solenoid Valve (’02-’03)
21 10 Daytime Light Control Unit, ECM (’00-’03)
22 15 Cigaret Lighter
23 –  –
24 –  –
25 20 Front Wiper Motor, Front Washer Motor, Front Wiper Swicth
26 10 Hazard Switch
27 –  –
28 –  –
29 15 Fuel Pump Relay
30 10 Combination Meter, Back-Up Lamp Switch (Manual Transmission), Park and Neutral Position Switch (Automatic Transmission)
31 10 Anti-lock Brake System
32 – Spare
33 – Spare
34 – Spare

Nissan Sentra - fuse box diagram - passenger compartment fuse box

Nissan Sentra – fuse box diagram – passenger compartment fuse box

No.
 Relay
R1 Circut Breaker (Smart Entrance Control Unit (SECU), Power Window Relay, Sunroof)
R2 Heated Mirror
R3 Power Socket
R4 Trunk Lid Opener
R5 Power Window
R6 Remote Keyless Entry
Nissan Sentra - fuse box diagram - passenger compartment fuse box
Nissan Sentra – fuse box diagram – passenger compartment fuse box
No.
 Relay
R1 Ignition
R2 Blower Motor
R3 Accesssory

Engine Compartment

Nissan Sentra - fuse box diagram - engine compartment fuse box
Nissan Sentra – fuse box diagram – engine compartment fuse box
  1. Fuse Box
  2. Relay Box
  3. ABS Actuator and Control Unit
  4. Engine Control Unit
  5. Front Wiper Motor

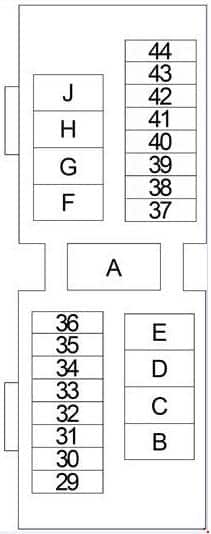

Engine Compartment Fuse Box

Nissan Sentra - fuse box diagram - engine compartment fuse box
Nissan Sentra – fuse box diagram – engine compartment fuse box
No.
 A
 Circuit Protected
32 15 Audio, Subwoofer, Satellite Radio Tuner (’04-’06), CD Changer (’00-’03)
33 10 Generator, Horn Relay
34 15 Engine Control Module Relay
35 10 Theft Warning Horn Relay (’00), Theft Warning Lamp Relay
36 10 ’00-’01, ’04-’06: Engine Control Module (ECM), ECM Relay, Immobilizer Control Unit
10 QG (’02-’03): Engine Control Module (ECM), ECM Relay
15 QR (’02-’03): Engine Control Module (ECM), ECM Relay, Immobilizer Control Unit
37 10 Smart Entrance Control Unit (SECU)
38 10 Lighting Switch (Combination Lamps), Smart Entrance Control Unit (SECU), Time Control Unit, Illumination lamps, License Plate Lamp
39 15 Headlamp, Lighting Switch, Daytime Light Control Unit, Theft Warning Lamp Relay
40 15 Headlamp, Lighting Switch, Daytime Light Control Unit, Theft Warning Lamp Relay
41 15 ’02-’06: Throttle Control Motor Relay
42 20 ’02-’06: Audio Amplifier
43 15 Front Fog Lamp Relay
A 100 QG, SR: Generator, Ignition Relay (Fuse: “25”, “26”, “29, “30”, “31”), Fuse: “D”, “H”, “I”, “2”, “3”, “4”, “5”, “6”, “7”, “39”, “40”, “41”, “42”, “43”
120 QR: Generator, Ignition Relay (Fuse: “25”, “26”, “29, “30”, “31”), Fuse: “D”, “H”, “I”, “2”, “3”, “4”, “5”, “6”, “7”, “39”, “40”, “41”, “42”, “43”
B 80 Accessory Relay (Fuse “22”), Ignition Relay (Fuse: “8”, “9”, 10″, “11”) Blower Relay (Fuse “14”, “16”), Fuse “12”, “13”
C 40 Ignition Switch
D 30 Circut Breaker (Smart Entrance Control Unit (SECU), Power Window Relay, Sunroof)
E –  –
F 40 Anti-lock Brake System
G 40 Anti-lock Brake System
H 40 Cooling Fan Relay 1, Cooling Fan Relay 3 (QR)
I 40 Cooling Fan Relay 1, Cooling Fan Relay 2
  • QG – 1.8 L QG18DE
  • SR – 2.0 L SR20DE
  • QR – 2.5 L QR25DE

Engine Compartment Relay Box

Nissan Sentra - fuse box diagram - engine compartment relay box
Nissan Sentra – fuse box diagram – engine compartment relay box
No.
 Relay
R1 Theft Warning Lamp Relay
R2 QR: Cooling Fan Relay 3
R3 Front Fog Lamp
R4 Clutch Interlock (Manual Transmission)
R5 Cooling Fan Relay 1
R6 Horn
R7 Air Conditioning
R8 Park and Neutral Position (Automatic Transmission)
R9 Cooling Fan Relay 2
R10 ’00: Theft Warning Horn

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Subaru Impreza (1999 – 2001) – fuse box diagram

Posted on by admin

Subaru Impreza (1999 – 2001) – fuse box diagram

Year of production: 1999, 2000, 2001

Passenger Compartment Fuse Box

Subaru Impreza - fuse box diagram - passenger compartment
Subaru Impreza – fuse box diagram – passenger compartment
No. A Circuits Protected
1 15 Heater fan
2 15 Heater fan
3 15 Spare
4 20 Front accessory power socket, Cigarette lighter, Remote controlled rear view mirrors
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Fog light
8 20 ABS solenoid
9 15 Radio, Clock
10 15 Spare
11 15 Engine ignition system, SRS airbag
12 10 Illumination brightness control
13 15 Spare
14 15 AT shift lock unit, ABS control, Cruise control
15 20 Windshield wiper and washer, Rear window wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Turn light, SRS airbag system warning light
19 20 Rear accessory power socket, Seat heater

Engine Compartment Fuse Box

Subaru Impreza - fuse box diagram - engine compartment
Subaru Impreza – fuse box diagram – engine compartment
No. A Circuits Protected
20 20 Radiator cooling fan (Main)
21 20 Radiator cooling fan (Sub)
22 20 Rear window defogger
23 15 Hazard warning flasher, Horn
24 15 Power door lock
25 10 Automatic transmission control unit
26 10 Alternator
27 15 Headlight (right side)
28 15 Headlight (left side)
29 20 Lighting switch
30 15 Clock, Interior light

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Subaru Impreza (1992 – 1998) – fuse box diagram

Posted on by admin

Subaru Impreza (1992 – 1998) – fuse box diagram

Year of production: 1992, 1993, 1994, 1995, 1996, 1997, 1998

Passenger Compartment Fuse Box

Subaru Impreza - fuse box diagram - passenger compartment
Subaru Impreza – fuse box diagram – passenger compartment
No. A Circuits Protected
1 15 Back-Up Light, Back-Up Light Switch (M/T), Inhibitor Switch (A/T), Hazard Switch
2 20 Front Wiper Motor, Front Washer Motor, Combination Switch, Rear Wiper Relay, Rear Washer Motor
3 15 ’92-’96: Cigarette Lighter, Power Mirror
20 ’97-’98: Cigarette Lighter, Main Fan Relay 1, Power Mirror
4 15 ’92-’96: Front Fog Light Relay
10 ’97-’98: Rear Combination Light, Trailer Connector, License Plate Light
5 10 Front Clearance Light, Rear Combination Light, Trailer Connector, License Plate Light, Parking Switch
6 – ’92-’96:  –
15 ’97-’98: Front Fog Light Relay
7 20 Rear Defogger
8 10 ’92-’96: ABS
15 ’97-’98: Airbag Control Module
9 10 Combination Meter, Illumination Control Unit, Cruise Control Main Switch, Bright Switch, Front Fog Light Relay, Rear Fog Light Relay, Illumination Light: Headlight Washer Switch, Front Fog Light Switch, Hazard Switch, Air Conditioner/Blower Control Panel, Headlight Leveling Switch, A/T Selector Lever, Rear Fog Light Switch, Radio, Cigarette Lighter, CD, Rear Defogger Switch
10 –  –
11 20 Power Locks, Door Lock Timer
12 20 Stop Light Switch (Stop and Brake Light Switch), Horn Relay
13 20 Main Fan Relay 2
14 10 Engine Control Module, A/T Control Module
15 10 Blower Motor Relay, Fresh/Recirculation Actuator, Air Conditioner/Blower Control Panel, Check Connector, Combination Meter, Vehicle Speed Sensor, Headlight Leveling Switch, Headlight Leveler LH/RH, Headlight Washer Switch, Power Window and Sunroof Relay, Rear Fog Light Switch, Rear Fog Light Relay (without front fog light)
16 15 Diode, Fuel Pump Relay, Engine Control Module, Ignition Coil, Immobiliser Control Module, Airbag Control Module
17 15 Radio, Clock
18 15 ’92-’96: ABS G-Sensor (AWD-M/T), ABS Control Module (AWD-M/T), Cruise Control Main Switch, Cruise Control Module
10 ’97-’98: ABS
19 20 ABS
20 15 Blower Motor Relay
21 15 Blower Motor Relay
Relay
R1 Rear Window Defogger
R2 Tail and Illumination
R3 Main Electric Cooling Fan

Engine Compartment Fuse Box

Subaru Impreza - fuse box diagram - engine compartment
Subaru Impreza – fuse box diagram – engine compartment
No. A Circuits Protected
22 15 Turn Signal and Hazard, Hazard Switch
23 20 Rear Fog Light Relay, Parking Switch
24 15 Headlight LH
25 10 Stop Light, Combination Meter, Room Light, Luggage Room Light, Trailer Connector, Clock, Radio, Door Lock Timer, Spot Light
26 15 Headlight RH, Combination Meter (Hi-Beam), Rear Fog Light Relay (without front fog light)
27 —  —
28 —  —
29 —  —
30 20 Air Conditioning Fan
31 10 Air Conditioning
32 30 Headlight Washer Module, Power Window and Sunroof Circuit Breaker
33 30 Main Relay, Fuel Punp Relay, Engine Control Module, Immobiliser Control Module, Fuse: “11”
34 45 Fuse: “4”, “12”, “19”, “20”, “21”, “25”
35 45 Ignition Switch
36 45 Fuse: “7”, “13”, “14”
37 —  —
38 45 ABS
39 — Generator, ABS, Fuse: “30”, “34”
Relay
R1 Headlight LH
R2 Headlight RH
R3 Air Conditioning
R4 Air Conditioning Fan
R5 Electric Cooling Fan
R6 Air Conditioning Fan

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Toyota Corolla (2013 – 2018) – fuse box diagram

Posted on by admin

Toyota Corolla (2013 – 2018) – fuse box diagram

Year of production: 2013, 2014, 2015, 2016, 2017, 2018

Passenger Compartment

LHD

Toyota Corolla - fuse box diagram - passenger (LHD) - location
Toyota Corolla – fuse box diagram – passenger (LHD) – location

RHD

Toyota Corolla - fuse box diagram - passenger (RHD) - location
Toyota Corolla – fuse box diagram – passenger (RHD) – location
  1. Steering Lock Actuator
  2. Fuse Box / Main Body ECU
  3. Headlight Swivel ECU
  4. Power Steering ECU
  5. Relay Box
  6. LHD: Cruise Control ECU
  7. Transmission Control Module
  8. Network Gateway Computer
  9. Windshield Wiper Relay
  10. Engine Stop and Start ECU
  11. Clearance Warning ECU
  12. LHD (Corolla): Telephone Transceiver
  13. Shift Lock Control Unit
  14. Airbag Sensor
  15. A/C Amplifier
  16. RHD: Double Lock Door Control Relay
  17. Hatchback, Wagon: Stereo Component Amplifier

Passenger Compartment Fuse Box

Instrument panel

Toyota Corolla - fuse box diagram - passenger compartment - instrument panel
Toyota Corolla – fuse box diagram – passenger compartment – instrument panel
No.
 Fuse
 A
 Circuit
1 P/OUTLET 15 Power outlet
2 OBD 7.5 On-board diagnosis system
3 STOP 7.5 Stop lights, multiport fuel injection system/sequential multiport fuel injection system, high mounted stoplight, ABS, VSC, shift lock control system
4 FOG RR 7.5 Rear fog light, gauge and meters
5 D/L NO.3 20 Power door lock system
6 S/ROOF 20 Panoramic roof shade
7 FOG FR 7.5 Front fog lights, gauge and meters
8 AM1 5 “IG1 RLY”, “ACC RLY”
9 D/L NO. 2 10 Back door lock system
10 DOOR NO. 2 20 Power windows
11 DOOR R/R 20 Power windows
12 DOOR R/L 20 Power windows
13 WASHER 15 Windshield washer
14 WIPER NO.2 25 Front wiper and washer (with auto wiper system), charging, power source (except 1WW)
15 WIPER RR 15 Rear window wiper
16 WIPER NO. 1 25 Windshield wipers
17 CIG 15 Cigarette Lighter
18 ACC 7.5 Outside rear view mirrors, main body ECU, clock, Audio system
19 SFT LOCK-ACC 5 Shift lock control system
20 TAIL 10 Front position lights, tail lights, license plate lights, front fog lights
21 PANEL 7.5 Switch illumination, instrument cluster lights, glove box light, main body ECU
22 WIPER-S 5 Charging system
23 ECU-IG NO.1 7.5 Electric cooling fan, AFS, charging system, ABS, VSC
24 ECU-IG NO.2 7.5 Tail lights, multiport fuel injection system/sequential multiport fuel injection system, AFS
25 ECU-IG NO.3 7.5 Multiport fuel injection system/sequential multiport fuel injection system, inside rear view mirror, panoramic roof shade, shift lock control system, headlight cleaner, AFS
26 HTR-IG 7.5 Air conditioning system, rear window defogger
27 ECU-IG NO.4 7.5 Main body ECU, front passenger seat belt reminder light, outside rear view mirrors
28 ECU-IG NO.5 5 Electric power steering
29 IGN 7.5 Smart entry & start system, multiport fuel injection system/sequential multiport fuel injection system, steering lock system
30 S/HTR 15 Seat heaters
31 METER 5 Gauge and meters
32 A/BAG 7.5 SRS airbag system

Glove box

Toyota Corolla - fuse box diagram - passenger compartment - glove box
Toyota Corolla – fuse box diagram – passenger compartment – glove box
No.
 Fuse
 A
 Circuit
1 P/SEAT 30 Power seat
2 – –  –
3 – –  –
4 DOOR NO.1 30 Power windows

Passenger Compartment Relay Box

Toyota Corolla - fuse box diagram - passenger compartment relay box
Toyota Corolla – fuse box diagram – passenger compartment relay box
No.
 Relay
R1 Front fog light (FR FOG)
R2 Horn (S-HORN)
R3  –
R4 Power outlet (PWR OUTLET)
R5 Interior light (DOME CUT)

Sedan

Toyota Corolla - fuse box diagram - location - sedan
Toyota Corolla – fuse box diagram – location – sedan

Hatchback

Toyota Corolla - fuse box diagram - location - hatchback
Toyota Corolla – fuse box diagram – location – hatchback

Wagon

Toyota Corolla - fuse box diagram - location - wagon
Toyota Corolla – fuse box diagram – location – wagon
  1. Precrash Safety City Sensor
  2. Tire Pressure Monitor Receiver
  3. Fuel Pump Control ECU
  4. Door Control Receiver Sub-Assembly
  5. Sliding Roof Drive Gear Assembly

Engine Compartment

Toyota Corolla - fuse box diagram - engine compartment - location
Toyota Corolla – fuse box diagram – engine compartment – location
  1. Glow Plug Relay
  2. Fuse Box
  3. Generator Control ECU
  4. Glow Plug Controller
  5. Cooling Fan ECU
  6. Injector Driver
  7. Headlight Cleaner Control Relay
  8. ECM
  9. Skid Control ECU (Multi-mode Manual Transmission)
  10. Relay Box (LHD)
  11. Skid Control ECU (except Multi-mode Manual Transmission)
  12. Relay Box (RHD)

Engine Compartment Fuse Box (except diesel 1.6L – 1WW)

Toyota Corolla - fuse box diagram - engine compartment
Toyota Corolla – fuse box diagram – engine compartment

A

Sedan

Toyota Corolla - fuse box diagram - engine compartment - relay (sedan)
Toyota Corolla – fuse box diagram – engine compartment – A  (sedan)

Hatchback, Wagon (Except 1ND-TV )

Toyota Corolla - fuse box diagram - engine compartment - relay (hatchabk, sedan)
Toyota Corolla – fuse box diagram – engine compartment – A (hatchabk, sedan)

Hatchback, Wagon (1ND-TV)

Toyota Corolla - fuse box diagram - engine compartment - A (hatchabk, sedan)
Toyota Corolla – fuse box diagram – engine compartment – A (hatchabk, sedan)

B

Multi-mode Manual Transmission Hatchback, Wagon (8NR-FTS)

Toyota Corolla - fuse box diagram - engine compartment - B (hatchabk, sedan)
Toyota Corolla – fuse box diagram – engine compartment – B (hatchabk, sedan)

Hatchback, Wagon (1AD-FTV) Sedan

Toyota Corolla - fuse box diagram - engine compartment - B (hatchabk, sedan, wagon)
Toyota Corolla – fuse box diagram – engine compartment – B (hatchabk, sedan, wagon)

Hatchback, Wagon (1ND-TV)

Toyota Corolla - fuse box diagram - engine compartment - B (hatchabk, wagon)
Toyota Corolla – fuse box diagram – engine compartment – B (hatchabk, wagon)
No.
 Fuse
 A
 Circuit
1 ECU-B NO.2 10 Air conditioning system, power windows, smart entry & start system, out side rear view mirrors, gauge and meters
2 ECU-B NO.3 5 Electric power steering
3 AM2 7.5 Multiport fuel injection system/sequential multiport fuel injection system, starting system, “IG2” fuse
4 D/C CUT 30 “DOME”, “ECU-B NO.1”, “RADIO” fuses
5 HORN 10 Horn
6 EFI-MAIN 20 1NR-FE: Multiport fuel injection system/sequential multiport fuel injection system, “EFI NO.1”, “EFI NO.2” fuses, fuel pump
25 1ZR-FAE, 1ZR-FE, 2ZR-FE, 8NR-FTS: Multiport fuel injection system/sequential multiport fuel injection system, “EFI NO.1”, “EFI NO.2” fuses, fuel pump
30 Diesel: Multiport fuel injection system/sequential multiport fuel injection system
7 ICS/ALT-S 5 Charging system
8 ETCS 10 1ZR-FAE, 1NR-FE, 1ZR-FE, 2ZR-FE, 8NR- FTS: Electronic throttle control system
EDU 20 1AD-FTV: Multiport fuel injection system/sequential multiport fuel injection system
9 TURN & HAZ 10 Except 8NR-FTS: Gauge and meters, turn signal lights
ST 30 8NR-FTS: Starting system
10 IG2 15 Gauge and meters, multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system
11 EFI-MAIN NO.2 20 1AD-FTV: Multiport fuel injection system/sequential multiport fuel injection system
INJ/EFI-B 15 Gasoline: Multiport fuel injection system/sequential multiport fuel injection system
ECU-B NO.4 10 1ND-TV, (Sedan (1AD-FTV): Multiport fuel injection system/sequential multiport fuel injection system
20 8NR-FTS: Multiport fuel injection system/sequential multiport fuel injection system
DCM/MAYDAY 7.5 1NR-FE (April 2016 or later): Telematics system
12 EFI-MAIN NO.2 30 Except 8NR-FTS: Multiport fuel injection system/sequential multiport fuel injection system
DCM/MAYDAY 7.5 Sedan (1ZR-FE, 1ZR-FAE, 2ZR-FE): Telematics system
EFI-MAIN NO.2 10 Sedan (1ND-TV): Multiport fuel injection system/sequential multiport fuel injection system
13 ST 30 Except 8NR-FTS: Starting system
TURN & HAZ 10 8NR-FTS: Gauge and meters, turn signal lights
14 H-LP MAIN 30 Hatchback, Wagon: “H-LP RH-LO”, “H-LP LH-LO”, “H-LP RH-HI”, “H-LP LH-HI” fuses
40 Sedan: “H-LP RH-LO”, “H-LP LH-LO”, “H-LP RH-HI”, “H-LP LH-HI” fuses
15 VLVMATIC 30 Multiport fuel injection system/sequential multiport fuel injection system
16 EPS 80 Electric power steering
17 ECU-B NO.1 10 Wireless remote control, main body ECU, VSC, smart entry & start system, clock
18 DOME 7.5 Interior lights, vanity lights, luggage compartment light, main body ECU
19 RADIO 20 Audio system
20 DRL 10 Daytime running lights
21 STRG HTR 15 Sedan: Steering heater
22 ABS NO.2 30 ABS, VSC
23 RDI 40 Electric cooling fan
24 – –  –
25 DEF 30 Hatchback, Wagon: Rear window defogger, outside rear view mirror defoggers
50 Sedan: Rear window defogger, outside rear view mirror defoggers
26 ABS NO.1 50 ABS, VSC
27 HTR 50 Air conditioning system
28 ALT 120 Gasoline: Charging system
140 Diesel: Charging system
29 EFI NO.2 10 Multiport fuel injection system/sequential multiport fuel injection system
30 EFI NO.1 10 Except 8NR-FTS: Multiport fuel injection system/sequential multiport fuel injection system
15 8NR-FTS: Multiport fuel injection system/sequential multiport fuel injection system
31 EFI-NO.3 20 1ND-FTV: Multiport fuel injection system/sequential multiport fuel injection system
10 8NR-FTS: Multiport fuel injection system/sequential multiport fuel injection system
EFI NO.4 20 Sedan: Multiport fuel injection system/sequential multiport fuel injection system
32 MIR-HTR 10 Multiport fuel injection system/sequential multiport fuel injection system, outside rear view mirror defoggers
33 H-LP RH-LO 15 HID: Right-hand headlight (low beam)
10 Halogen, LED: Right-hand headlight (low beam)
34 H-LP LH-LO 15 HID: Left-hand headlight (low beam)
10 Halogen, LED: Left-hand headlight (low beam), manual headlight leveling dial
35 H-LP RH-HI 7.5 Hatchback, Wagon: Right-hand headlight (high beam)
10 Sedan: Right-hand headlight (high beam)
36 H-LP LH-HI 7.5 Hatchback, Wagon: Left-hand headlight (high beam), gauge and meters
10 Sedan: Left-hand headlight (high beam), gauge and meters
37 EFI NO.4 15 Hatchback, Wagon: Multiport fuel injection system/sequential multiport fuel injection system
EFI NO.3 20 Sedan: Multiport fuel injection system/sequential multiport fuel injection system
38 – –  –
39 – –  –
40 – –  –
41 AMP 15 Audio system
42 – –  –
43 EFI-MAIN NO.2 20 8NR-FTS: Multiport fuel injection system/sequential multiport fuel injection system
44 STRG LOCK 20 Steering lock system
45 AMT 50 Sedan: Multi-mode manual transmission
46 BBC 40 Stop & Start system
AMT 50 Hatchback, Wagon: Multi-mode manual transmission
47 GLOW 80 Engine glow system
48 PTC HTR NO.2 30 Power heater
49 PTC HTR NO.1 30 Power heater
50 H-LP CLN 30 Headlight cleaner
51 ABS NO.1 30 Sedan: ABS, VSC
ABS NO.3 30 Hatchback, Wagon: ABS, VSC
52 CDS FAN 30 Electric cooling fan
53 PTC HTR NO.3 30 Power heater
54 – –  –
55 S-HORN 10 Theft deterrent
56 STV HTR 25 Power heater
DEICER 20 Sedan (1ZR-FE, 1ZR-FAE, 2ZR-FE, 1NR-FE): Front window deicer
A
57 EFI NO.5 10 1ND-TV (from May 2015): Multiport fuel injection system/sequential multiport fuel injection system
58 – –  –
B
57 EFI NO.6 15 1ND-TV (from May 2015): Multiport fuel injection system/sequential multiport fuel injection system
58 EFI NO.7 15 1ND-TV (from May 2015): Multiport fuel injection system/sequential multiport fuel injection system
Relay
R1 Electric power steering (EPS)
R2 (INJ)
Sedan (1ND-TV (from April 2016): (EFI-MAIN NO.2)
R3 Starter (ST NO.1)
R4 Daytime running lights (DRL)
R5 Horn (HORN)
R6 Electric cooling fan (FAN NO.1)
R7 (EFI-MAIN)
R8 Ignition (IG2)
R9 Dimmer (DIMMER)
R10 Hatchback, Wagon: Stop lights (STOP LP)
R11 Headlight (H-LP)
R12 1NR-FE, 1ZR-FAE, 1ZR- FE, 2ZR-FE: Fuel pump (C/OPN)
1AD-FTV: (EDU)
1ND-TV, 8NR-FTS: (EFI MAIN NO.2)
R13 Hatchback, Wagon (1AD-FTV): (EFI MAIN NO.2)
Hatchback, Wagon (1ND-TV): (TSS-C HTR)
Sedan (← November 2016): Stop lights (STOP LP)
Sedan (November 2016 →): (TSS-C HTR)
A
R14 Sedan: Rear window defogger (DEF)
R15 Hatchback, Wagon (except 1ND-TV): (TSS-C HTR)
R16 Hatchback, Wagon (except 1ND-TV): Rear window defogger (DEF)
R17 Hatchback, Wagon (1ND-TV (from May 2015)): Rear window defogger (DEF)
B
R14 Multi-mode Manual Transmission (AMT)
Hatchback, Wagon (8NR- FTS): Electric cooling fan (FAN MAIN)
R15 Hatchback, Wagon (1AD-FTV): Electric cooling fan (FAN NO.2)
Sedan: –
R16 Hatchback, Wagon (1AD-FTV): Electric cooling fan (FAN NO.3)
Sedan (1ZR-FE, 1ZR-FAE, 2ZR-FE, 1NR-FE): Front window deicer (DEICER)
R17 Hatchback, Wagon (1ND-TV (from May 2015)): –

Engine Compartment Fuse Box (diesel 1.6L – 1WW)

Toyota Corolla - fuse box diagram - engine compartment relay box
Toyota Corolla – fuse box diagram – engine compartment relay box
No.
 Fuse
 A
 Circuit
1 DOME 7.5 Luggage compartment light, vanity lights, front door courtesy lights, personal/interior lights, foot lights
2 RAD NO.1 20 Audio system, navigation system, parking assist (rear view monitor)
3 ECU-B 10 Gauges and meters, sub-battery, steering sensor, double locking system, wireless remote control, smart entry & start system
4 D.C.C –  –
5 ECU-B2 10 Smart entry & start system, air conditioning system, power windows, gateway ECU
6 EFI MAIN NO.2 7.5 Multiport fuel injection system/sequential multiport fuel injection system
7 – –  –
8 – –  –
9 – –  –
10 STRG LOCK 20 Steering lock system
11 – –  –
12 ST 30 Starting system
13 ICS/ALT-S 5 Charging system
14 TURN-HAZ 10 Turn signal lights, emergency flashers
15 ECU-B NO.3 5 Electric power steering
16 AM2 NO.2 7.5 Starting system
17 – –  –
18 ABS NO.1 50 ABS, VSC
19 CDS FAN 30 Electric cooling fan
20 RDI FAN 40 Electric cooling fan
21 H-LP CLN 30 Headlight cleaners
22 TO IP J/B 120 “ECU-IG NO.2”, “HTR-IG”, “WIPER”, “RR WIPER”, “WASHER”, “ECU-IG NO.1”, “ECU-IG NO.3”, “SEAT HTR”, “AM1”, “DOOR”, “STOP”, “FR DOOR”, “POWER”, “RR DOOR”, “RL DOOR”, “OBD”, “ACC-B”, “RR FOG”, “FR FOG”, “DEF”, “TAIL”, “SUNROOF”, “DRL” fuses
23 – –  –
24 – –  –
25 – –  –
26 P/I 50 “HORN”, “IG2”, “FUEL PMP” fuses
27 – –  –
28 FUEL HTR 50 Fuel heater
29 EFI MAIN 50 Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
30 EPS 80 Electric power steering
31 GLOW 80 Engine glow system
32 – –  –
33 IG2 15 “IGN”, “METER” fuses
34 HORN 15 Horn, theft deterrent
35 FUEL PUMP 30 Fuel pump
36 – –  –
37 H-LP MAIN 30 “H-LP LH LO”, “H-LP RH LO”, “H-LP LH HI”, “H-LP RH HI” fuses
38 BBC 40 Stop & Start system
39 HTR SUB NO.3 30 Power heater
40 – –  –
41 HTR SUB NO.2 30 Power heater
42 HTR 50 Air conditioner, heater
43 HTR SUB NO.1 50 Power heater
44 DEF 30 Rear window defogger, outside rear view mirror defoggers
45 STV HTR 25 Power heater
46 ABS NO.2 30 ABS, VSC
47 – –  –
48 – –  –
49 DRL 10 Daytime running lights
50 – –  –
51 H-LP LH LO 10 Left-hand headlight (low beam)
52 H-LP RH LO 10 Right-hand headlight (low beam)
53 H-LP LH HI 7.5 ← November 2016: Left-hand headlight (high beam)
RDI EFI 5 November 2016 →: Electric cooling fan
54 H-LP RH HI 7.5 ← November 2016: Right-hand headlight (high beam)
CDS EFI 5 November 2016 →: Electric cooling fan
55 EFI NO.1 7.5 Multiport fuel injection system/sequential multiport fuel injection system, Stop & Start system
56 EFI NO.2 15 Multiport fuel injection system/sequential multiport fuel injection system
57 MIR HTR 10 Multiport fuel injection system/sequential multiport fuel injection system, outside rear view mirror defoggers
58 EFI NO.4 20 Multiport fuel injection system/sequential multiport fuel injection system
59 CDS EFI 5 ← November 2016: Electric cooling fan
60 RDI EFI 5 ← November 2016: Electric cooling fan
Relay
R1 Electric cooling fan (FAN NO.2)
R2 Electric cooling fan (FAN NO.3)
R3 Electric power steering (EPS)
R4 Stop lights (STOP LP)
R5 Starter (ST NO.1)
R6 Rear window defogger (DEF)
R7 (EFI MAIN)
R8 Headlight (H-LP)
R9 Dimmer
R10 ← November 2016: Daytime running lights (DRL)
November 2016 →: Electric cooling fan (FAN NO.1)
R11 ← November 2016: Electric cooling fan (FAN NO.1)
November 2016 →: Fuel heater (FUEL HTR)

Engine Compartment Relay Box

PTC Heater 495W Type

Toyota Corolla - fuse box diagram - engine compartment relay box - PTC heater 495W type
Toyota Corolla – fuse box diagram – engine compartment relay box – PTC heater 495W type

PTC Heater 600W Type

Toyota Corolla - fuse box diagram - engine compartment relay box - PTC heater 600W type
Toyota Corolla – fuse box diagram – engine compartment relay box – PTC heater 600W type
No.
 Relay
R1  –
R2 HTR SUB NO.1
R3 HTR SUB NO.3
R4 HTR SUB NO.2

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Golf VII (mk7; 2013 – 2020) – fuse and relay box diagram

Posted on by admin

Volkswagen Golf VII (mk7; 2013 – 2020) – fuse and relay box diagram

Year of production: 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020

Overview of fuse holder

Volkswagen Golf VII (mk7; 2013 - 2020) - fuse and relay box location - overview of fuse holder
Volkswagen Golf VII (mk7; 2013 – 2020) – fuse and relay box location – overview of fuse holder
№ Description
1 Fuse panel C -SC-
2 Fuse panel B -SB-
3 Fuse panel A -SA-

Passenger Compartment Fuse Box

Fuse Box Diagram (Fuse Panel C- SC)

Volkswagen Golf VII (mk7; 2013 - 2020) - fuse and relay box location - passenger compartment (fuse panel c -sc-)
Volkswagen Golf VII (mk7; 2013 – 2020) – fuse and relay box location – passenger compartment (fuse panel C -SC-)



Fuse assignment fuse panel C -SC-

№ Designation in Wiring Diagram A Component Terminal
F1 — — — —
F2 — — — —
F3 — — — —
F4 Fuse 4 on fuse panel C -SC4- 10 Vehicle electrical system control module -J519-,
Anti-theft alarm system		 30
F5 Fuse 5 on fuse panel C -SC5- 5 Data bus on board diagnostic interface -J533- 30
F6 Fuse 6 on fuse panel C -SC6- 5 Anti-theft alarm system sensor -G578- 30
F7 Fuse 7 on fuse panel C -SC7- 10 Heater and A/C controls -EX21-
Heater control module -J65-
Climatronic control unit -J255-
A/C control module -J301-
Selector lever -E313-
Auxiliary engine coolant heater radio
frequency receiver -R149-
Rear window defogger relay -J9-		 30
F8 Fuse 8 on fuse panel C -SC8- 10 Rotary light switch -EX1- 30
Electro-mechanical parking brake button -E538-
Humidity, rain and light recognition sensor -G823-
Diagnostic connection -U31-		 30
F9 — — — —
F10 Fuse 10 on fuse panel C -SC10- 10 Front information display control head -J685- 30
F11 Fuse 11 on fuse panel B -SB11- 15 All wheel drive control module -J492- 30
F12 Fuse 12 on fuse panel C -SC12- 20 Information electronics control module 1 -J794- 30
F13 Fuse 13 on fuse panel C -SC13- 15 Electronic damping control module -J250- 30
F14 Fuse 14 on fuse panel C -SC14- 30 Fresh air blower control module -J126- 30
F15 Fuse 15 on fuse panel C -SC15- 10 Electronic steering column lock control module
-J764-		 30
F16 Fuse 16 on fuse panel C -SC16- 7,5 Mobile communication 2-way signal amplifier -J984-
Antenna amplifier 3 -R112-
Voltage converter for USB charge module -A5-		 30
F17 Fuse 17 on fuse panel C -SC17- 5 Instrument cluster control module -J285-
Instrument cluster -KX2-		 30
F18 Fuse 18 on fuse panel C -SC18- 7,5 Rearview camera -R189-
Rear lid unlock switch -E165-		 30
F19 Fuse 19 on fuse panel C -SC19- 7,5 Access/start system interface -J965- 30
F20 — — — —
F21 — — — —
F22 — — — —
F23 Fuse 23 on fuse panel C -SC23- 40 Vehicle electrical system control module -J519-
Right front headlamp -MX2-		 30
F24 Fuse 24 on fuse panel C -SC24- 30 Power sunroof control module -J245- 30
F25 Fuse 25 on fuse panel C -SC25- 30 Driver door control module -J386- 1)
Left rear window regulator motor -V26- 1)
Front passenger door control module -J387- 2)
Right rear window regulator motor -V27- 2)		 30
F26 Fuse 26 on fuse panel C -SC26- 20 Vehicle electrical system control module -J519-
Front heated seat		 30
F27 Fuse 27 on fuse panel C -SC27- 30 Digital Sound System Control Module -J525- 30
F28 Fuse 28 on fuse panel C -SC28- 20 Towing recognition control module -J345- 30
F29 — — — —
F30 Fuse 30 on fuse panel C -SC30- 25 Left front seat belt tensioner control module -J854- 30
F31 Fuse 31 on fuse panel C -SC31- 40 Vehicle electrical system control module -J519-
Left front headlamp -MX1-		 30
F32 Fuse 32 on fuse panel C -SC32- 7,5 Driver assistance systems front camera -R242-
Distance regulation control module -J428-
Parking aid control module -J446-
Parallel parking assistance control module –
J791-		 15
F33 Fuse 33 on fuse panel C -SC33- 5 Airbag control module -J234- 15
Front passenger airbag -disabled- indicator
lamp -K145-
F34 Fuse 34 on fuse panel C -SC34- 7,5 Rotary light switch -EX1-
Interior rearview mirror -EX5-
Tire pressure monitoring display button -E492-
Socket relay -J807-
Back-up lamp switch -F4-
Refrigerant circuit pressure sensor -G805-
Air quality sensor -G238-
Electro-mechanical parking brake button –
E538-		 15
F15 Fuse 35 on fuse panel C -SC35- 10 Diagnostic connection -U31-
Headlamp range control and instrument
illumination regulator -EX14-
Automatic dimming interior rearview mirror -Y7
–
Cornering lamp and headlamp range control
module -J745-
Left headlamp beam adjustment motor -V48-
Right headlamp beam adjustment motor -V49-		 15
F36 Fuse 36 on fuse panel C -SC36- 10 Right daytime running lamp and parking lamp
control module -J861-		 15
F37 Fuse 37 on fuse panel C -SC37- 10 Left daytime running lamp and parking lamp
control module -J860-		 15
F38 Fuse 38 on fuse panel C -SC38- 20 Towing recognition control module -J345- 30
F39 Fuse 39 on fuse panel C -SC39- 30 Front passenger door control module -J387-
Right rear window regulator motor -V27- 1)
Driver door control module -J386- 2)
Left rear window regulator motor -V26- 2)		 30
F40 Fuse 40 on fuse panel C -SC40- 20 Cigarette lighter -U1-3)
12 V socket -U5-
12 V socket 2 -U18-
12 V socket 3 -U19-		 15/30 4)
F41 Fuse 41 on fuse panel C -SC41- 10 Steering column electronics control module -J527- 30
F42 Fuse 42 on fuse panel C -SC42- 40 Vehicle electrical system control module -J519-
Central locking system		 30
F43 Fuse 43 on fuse panel C -SC43- 30 Vehicle electrical system control module -J519- 30
F44 Fuse 44 on fuse panel C -SC44- 15 Towing recognition control module -J345- 30
F45 Fuse 45 on fuse panel C -SC45- 15 Driver seat lumbar support adjustment switch -E176-
Driver seat adjustment control head -E470-
Front passenger seat adjustment control head -E471-
Front passenger seat lumbar support adjustment switch -E177-		 30
F46 — — — —
F47 Fuse 47 on fuse panel C -SC47- 15 Rear window wiper motor -V12- 15
F48 — — — —
F49 Fuse 49 on fuse panel C -SC49- 5 Clutch pedal position sensor -G162-
Starter relay 1 -J906-
Starter relay 2 -J907-		 15
F50 — — — —
F51 Fuse 51 on fuse panel C -SC51- 25 Right front seat belt tensioner control module -J855- 15
F52 — — — —
F53 — — — —
1) Only for left-hand drive vehicles
2) Only for right-hand drive vehicles
3) Smoking package
4) Depending on equipment

Engine Compartment Fuse Box

Fuse Box Diagram (Fuse Panel B- SB)

Volkswagen Golf VII (mk7; 2013 - 2020) - fuse and relay box location - engine compartment (fuse panel B -SB-)
Volkswagen Golf VII (mk7; 2013 – 2020) – fuse and relay box location – engine compartment (fuse panel B -SB-)



Fuse assignment fuse panel B -SB-

№ Designation in Wiring Diagram A Component Terminal
F1 Fuse 1 on fuse panel B -SB1- 40 ABS control module -J104- 30
F2 Fuse 2 on fuse panel B -SB2- 40 ABS control module -J104-
ABS hydraulic pump -V64-		 30
F3 Fuse 3 on fuse panel B -SB3- 15 1) Engine control module -J623- 87
30 2)
F4 Fuse 4 on fuse panel B -SB4- 5 2) Oil level thermal sensor -G266- 87
Coolant fan control module -J293-
EVAP canister purge regulator valve 1 -N80- 1)
Camshaft adjustment valve 1 -N205-(1
Exhaust camshaft adjustment valve 1 -N318- 1)
Oil pressure regulation valve -N428- 1)
High heat output relay -J360-2)
EGR cooler switch-over valve -N345- 2)
Low heat output relay -J359- 2)
Wastegate bypass regulator valve -N75- 2)
Cylinder 2 intake camshaft adjuster -N583- 1)
Cylinder 2 exhaust camshaft adjuster -N587- 1)
Cylinder 3 intake camshaft adjuster -N591- 1)
Cylinder 3 exhaust camshaft adjuster -N595- 1)
Ethanol concentration sensor -G708- 1)		 87
10 1)
F5 Fuse 5 on fuse panel B -SB5- 10 2) Fuel pressure regulator valve -N276-
Fuel metering valve -N290-		 87
F6 Fuse 6 on fuse panel B -SB6- 5 Brake lamp switch -F- 87
F7 Fuse 7 on fuse panel B -SB7- 7,5 1) Fuel pressure regulator valve -N276-1)
Charge air cooling pump -V188-1)
Oil pressure regulation valve -N428-2)
Cooling circuit solenoid valve -N492-2)
Charge air cooling pump -V188-2)
Heater support pump -V488- 2)		 87
10 2)
F8 Fuse 8 on fuse panel B -SB8- 10 1) Oxygen sensor heater -Z19-
Oxygen sensor 1 before catalytic converter -GX10-
Heater for oxygen sensor 1 after catalytic converter -Z29-
Oxygen sensor 1 after catalytic converter -GX7-
Mass airflow sensor -G70-		 87
F9 Fuse 9 on fuse panel B -SB9- 5 2) Ignition coil 1 with power output stage -N70- 1)
Ignition coil 2 with power output stage -N127-1)
Ignition coil 3 with power output stage -N291-
1)
Ignition coil 4 with power output stage -N292-1)
Automatic glow time control module -J179- 2)
Early fuel evaporation heating element -N51- 2)		 87
20 1)
F10 Fuse 10 on fuse panel B -SB10- 15 1) Fuel pump control module -J538- 87
20 2)
F11 Fuse 11 on fuse panel B -SB11- 40 Auxiliary heater heating element -Z35- 87
F11 Fuse 11 on fuse panel B -SB11- 40 Auxiliary heater heating element -Z35- 87
F12 Fuse 12 on fuse panel B -SB12- 40 Auxiliary heater heating element -Z35- 87
F13 Fuse 13 on fuse panel B -SB13- 30 DSG transmission Mechatronic -J743- 30
F14 — — — —
F15 Fuse 15 on fuse panel B -SB15- 15 Horn relay -J413- 30
F16 — — — —
F17 Fuse 17 on fuse panel B -SB17- 7,5 Motronic engine control module power supply
relay -J271- 1)
Terminal 30 power supply relay -J317-2)
Engine control module -J623-
ABS control module -J104-		 30
F18 Fuse 18 on fuse panel B -SB18- 5 Battery monitoring control module -J367-
Data bus on board diagnostic interface -J533-
3)		 30
F19 Fuse 19 on fuse panel B -SB19- 30 Wiper motor control module -J400- 30
F20 Fuse 20 on fuse panel B -SB20- 20 Anti-theft alarm system horn -H8- 30
F21 — — — —
F22 Fuse 22 on fuse panel B -SB22- 5 Engine control module -J623- 50
F23 Fuse 23 on fuse panel B -SB23- 30 Starter -B- 50
F24 Fuse 24 on fuse panel B -SB24- 40 Auxiliary heater heating element -Z35- 87
F25 — — — —
F26 — — — —
F27 — — — —
F28 — — — —
F29 — — — —
F30 — — — —
F31 — — — —
F32 — — — —
F33 — — — —
F34 — — — —
F35 — — — —
F36 — — — —
F37 Fuse 37 on fuse panel B -SB37- 20 Auxiliary heater control module -J364- 30
F38 — — — —
1) Only for vehicles with gasoline engine
2) only for vehicles with a diesel engine
3) Only for vehicles without Stop/Start

Engine Compartment Fuse Box

Fuse Box Diagram (Fuse Panel A- SA)

Volkswagen Golf VII (mk7; 2013 - 2020) - fuse and relay box location - engine compartment (fuse panel A -SA-)
Volkswagen Golf VII (mk7; 2013 – 2020) – fuse and relay box location – engine compartment (fuse panel A -SA-)



Fuse assignment fuse panel A -SA-

№ Designation in Wiring Diagram A Component Terminal
J Fuse 1 on fuse panel A -SA1- 100 Fuses Supply:
-SC4- …-SC14-
-SC30-
-SC31-
-SC38-
-SC39-
-SC41-
-SC42-
-SC53-
Front passenger power seat adjustment
circuit breaker 1 -S46-
Terminal 15 power supply relay -J329-		 30
G1 Fuse 2 on fuse panel A -SA2- 100 1) Generator -C- 30
200 2)
250 3)
E1 Fuse 3 on fuse panel A -SA3- 80 Power steering control module -J500- 30
K1 Fuse 4 on fuse panel A -SA4- 80 Fuses Supply:
-SC15- …-SC20-
-SC23- …-SC28-
-SB43- …-SB45-		 30
L1 Fuse 5 on fuse panel A -SA5- 80 Coolant fan -VX57- 30
1) Only for vehicles with a 90 A generator
2) Only for vehicles with a 140 A generator
3) Only for vehicles with a 180 A generator

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Daewoo Tico (1992) – fuse box diagram

Posted on by admin

Daewoo Tico (1992) – fuse box diagram

Year of production: 1992

Fuse box

Daewoo Tico - fuse box diagram
Daewoo Tico – fuse box diagram
Daewoo Tico - fuse box diagram - main fuse
Daewoo Tico – fuse box diagram – main fuse
№ A Component
1 15 Upward/downward headlight right
2 15 Upward headlight indicator, upward/downward headlight left
3 15 Brake switch room light, radio and clock
4 15 Horn, emergency warning light switch
5 — —
6 20 Radiator motor fan relay
7 — —
8 15 IG coil carburetor solenoid B.V.V, N.S, instrument panel, radiator fan relay
9 15 Wiper switch, motor
10 15 Backup light switch, emergency light switch, A/C V.S.V
11 15 Blower motor
12 15 Hot wire switch
13 15 Cigar lighter, cassette radio
14 — —

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Daewoo Aranos – fuse box diagram

Posted on by admin

Daewoo Aranos – fuse box diagram

Year of production:

Fuse box

The box is located to the right of the steering column under a cover.
Daewoo Aranos - fuse box diagram - passenger compartment
Daewoo Aranos – fuse box diagram – passenger compartment
№ A Component
1 10 ECM, TCM*
2 20 Fuel pump
3 20 Turn signal lamps, brake lamps, electric side mirror*
4 30 Windscreen wipers
5 30 Radiator Temperature switch
6 20 ABS (Key-On), Air-com, Compressor cut-off
7 30 Electric windows
8 10 Cassette
9 20 Rear window and Electric exterior mirror dernister
10 30 Radiator Cooling fan relay (high speed)
11 10 Illumination lamp
12 10 Injector
13 20 Cigarette lighter  Chime
14 10 Instrument power supply
15 20 Hazard warning lamp, Interior lamp, Reading lamp, Boot lamp
16 20 Air bag
17 10 ABS (battery power)
18 30 Horn, Central door locking, Automatic boot switch

Engine compartment

The main relay box is located on the front wheel housing next to the battery in the engine compartment.

Daewoo Aranos - fuse box diagram - engine compartment
Daewoo Aranos – fuse box diagram – engine compartment
№ A Component
1 Wiper speed control relay
2 Parking/Neutral relay
3 Radiator motor fan relay (high speed)
4 Fog lamp relay
5 Fuse remover
6 Blower motor relay
7 —
8 Horn relay
9 —
10 —
11 Air-conditioning compressor relay
12 Radiator motor fan relay (low speed)
13-1 10 Fog lamo
13-2 10 High beam (left)
13-3 10 Low beam (left)
13-4 30 Blower motor
13-5 10 High beam (right)
13-6 10 Low beam (right)

Auxiliary relay box

Auxiliary relay box is located in the left hand footwell.

Daewoo Aranos - fuse box diagram - auxiliary relay box
Daewoo Aranos – fuse box diagram – auxiliary relay box

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Daewoo Espero – fuse box diagram

Posted on by admin

Daewoo Espero – fuse box diagram

Year of production:

Fuse box

The box is located to the right of the steering column under a cover.
Daewoo Espero - fuse box diagram - passenger compartment
Daewoo Espero – fuse box diagram – passenger compartment
№ A Component
1 10 ECM, TCM*
2 20 Fuel pump
3 20 Turn signal lamps, brake lamps, electric side mirror*
4 30 Windscreen wipers
5 30 Radiator Temperature switch
6 20 ABS (Key-On), Air-com, Compressor cut-off
7 30 Electric windows
8 10 Cassette
9 20 Rear window and Electric exterior mirror dernister
10 30 Radiator Cooling fan relay (high speed)
11 10 Illumination lamp
12 10 Injector
13 20 Cigarette lighter  Chime
14 10 Instrument power supply
15 20 Hazard warning lamp, Interior lamp, Reading lamp, Boot lamp
16 20 Air bag
17 10 ABS (battery power)
18 30 Horn, Central door locking, Automatic boot switch

Engine compartment

The main relay box is located on the front wheel housing next to the battery in the engine compartment.

Daewoo Espero - fuse box diagram - engine compartment
Daewoo Espero – fuse box diagram – engine compartment
№ A Component
1 Wiper speed control relay
2 Parking/Neutral relay
3 Radiator motor fan relay (high speed)
4 Fog lamp relay
5 Fuse remover
6 Blower motor relay
7 —
8 Horn relay
9 —
10 —
11 Air-conditioning compressor relay
12 Radiator motor fan relay (low speed)
13-1 10 Fog lamo
13-2 10 High beam (left)
13-3 10 Low beam (left)
13-4 30 Blower motor
13-5 10 High beam (right)
13-6 10 Low beam (right)

Auxiliary relay box

Auxiliary relay box is located in the lefthand footwell.

Daewoo Espero - fuse box diagram - auxiliary relay box
Daewoo Espero – fuse box diagram – auxiliary relay box

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Daewoo Chairman – fuse box diagram

Posted on by admin

Daewoo Chairman – fuse box diagram

Year of production:

Engine compartment

Fuse box

Daewoo Chairman - fuse box diagram - engine compartment fuse box
Daewoo Chairman – fuse box diagram – engine compartment fuse box
№ A Component
1 15 Immobilizer E.C.S
2 10 ABS
3 15 Ignition
4 7,5 STICS REKES
5 20 Power seat, Driver’s (cushion seatback)
6 10 Air bag
7 10 Seat heater
8 15 TCU Injector
9 15 Sunroof
10 15 Front fog lamp
11 10 Cluster STICS
12 7,5 A/C (Auto amp)
13 10 Cluster H/LAMP LEV’G
14 20 Windshield heated wire
15 7,5 Auto light, Shift lever
16 15 Rear blinder Mesaage
17 20 FR RH Power window
18 10 FR Power window, Bias power
19 10 LH Headlamp (low-beam)
20 10 Turn signal lamp, Back up lamp
21 15 Power seat, Driver’s (cushion, seatback)
22 10 Stop lamp
23 10 Flasher unit, Ani theft
24 10 RH Headlamp (low-beam)
25 10 RH Position lamp
26 — —
27 7,5 Rain Sensor
28 10 Horn Siren
29 7,5 Illumination, Mood lamp
30 10 LH Position lamp, License plate lamp
31 10 Self diagnosis E.C.U.
32 10 RH Headlamp (high-beam)
33 15 Steering wheel, Tilting
34 15 TCU
35 20 FR LH Power window
36 10 Power room mirror STICS
37 10 LH Headlamp (high-beam)
38 15 Room lamo
39 15 Injector
40 10 Air conditioner
41 15 Cup holder, Audio Tuner
42 10 Windshield washer, Rain sensor
43 10 Bias power
44 30 Battery discharge protector

Relay box

Daewoo Chairman - fuse box diagram - engine compartment - relay box
Daewoo Chairman – fuse box diagram – engine compartment – relay box

Trunk compartment

Daewoo Chairman - fuse box diagram - trunk compartment fuse and relay box
Daewoo Chairman – fuse box diagram – trunk compartment fuse and relay box
№ A Component
45 10 RR Fog lamp
46 15 Power seat (passenger’s seat)
47 15 Power seat (passenger’s seatback)
48 15 Power seat (LH rear seat)
49 15 Power seat (RH rear seat)
50 15 Leg support
51 15 Front seat heater
52 15 Rear seat heater
53 10 REKES
54 7,5 Power Trunk (BIAS)
55 25 EPB
56 20 Power window (LH rear seat)
57 20 Power window (RH rear seat)
58 15 TV Tuner
59 15 Wooper amp
60 20 Power amp
61 30 Rear heated wire
62 15 Door lock, Fuller filler opener
63 30 Trunk opener
64 — —
65 — —
66 20 Fuel pump
67 30 Cigarette lighter
68 — —

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Dacia SuperNova (2001 – 2003) – fuse box diagram

Posted on by admin

Dacia SuperNova (2001 – 2003) – fuse box diagram

Year of production: 2001, 2002, 2003

Fuses

Dacia SuperNova - fuse box diagram
Dacia SuperNova – fuse box diagram
№ A Component
F01 15 Clock, radio, STOP contact, climate blower relay control
F02 5 Reverse driving contact
F03 15 UCE decoder, speed transducer, instrument panel supply, diagnostic socket, AC starting button, UCE anti intrusion
F04 7,5 Turning and hazard lights
F05 5 Front/rear parking lights, lighting: switches, instrument panel, climate control, documents compartment, cigarette lighter, ashtray, radio
F06 15 Cigarette lighter, instrument panel (anti-starting indicator), front right ceiling lamp, UCE anti-intrusion, anti-intrusion indicator, diagnostic socket
F07 15 UCE decoder, FLASH relay, anti starting bushing
F08 20 Rear window defrosting
F09 15 Climate blower
F10 5 Left fog lamp

On the fuse box, 6 fuses modules are attached, protecting the following consumers:

Dacia SuperNova - fuse box diagram
Dacia SuperNova – fuse box diagram
№ A Component
F11 10 Left high beam
F12 10 Right high beam, high beam indicator
F13 10 Left low beam
F14 10 Right low beam, low beam indicator
F15 15 Windscreen wiper-washing switch, windscreen wiper timer
F16 10 Radio, windscreen wiper motor.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
