Volvo V60 (2011 – 2018) – fuse box diagram
Year of production: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Location
| Number | Location |
| 1 | Engine compartment |
| 2 | Under the glovebox No. 1 |
| 3 | Under the glovebox No. 2 |
| 4 | Cargo area |
| 5 | Engine compartment cold zone (only Start/Stop) |

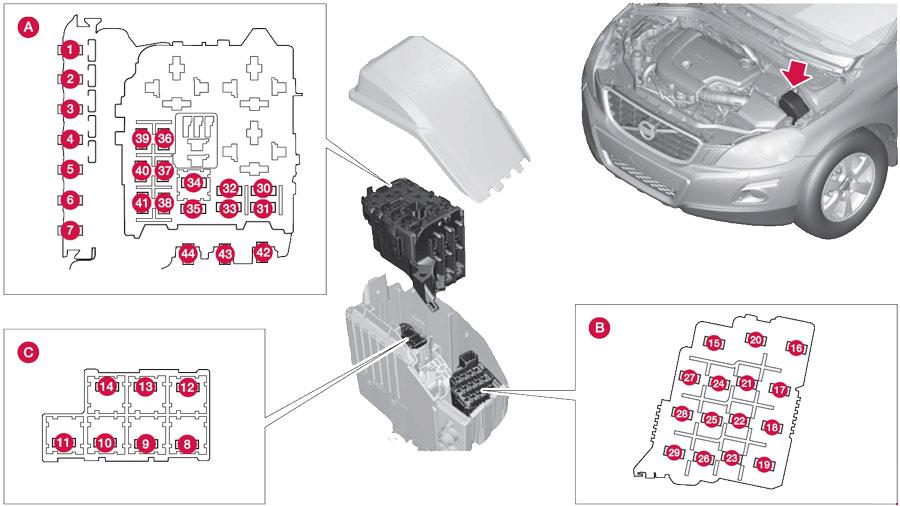

Fuses – in engine compartment
| Position | Function | Ampere rating [A] |
| 1 | Primary fuse CEM KL30B | 50 |
| 2 | Primary fuse CEM KL30A | 50 |
| 3 | Primary fuse RJBA KL30 | 60 |
| 4 | Primary fuse CJB KL30 | 60 |
| 5 | Primary fuse CJB 15E KL30 | 60 |
| 6 | — | — |
| 7 | PTC Air preheater | 100 |
| 8 | 2011-2013: Headlamp washers | 20 |
| 2014-2018: Heated windscreen, lefthand side | 40 | |
| 9 | Windscreen wipers | 30 |
| 10 | Parking heater | 25 |
| 11 | Ventilation fan | 40 |
| 12 | 2014-2018: Heated windscreen, righthand side | 40 |
| 13 | ABS pump | 40 |
| 14 | ABS valves | 20 |
| 15 | 2014-2018: Headlamp washers | 20 |
| 16 | Headlamp levelling, Active Xenon headlamps – ABL | 10 |
| 17 | Primary fuse CEM | 20 |
| 18 | ABS | 5 |
| 19 | Speed related power steering | 5 |
| 20 | Engine control module, Transmission control module, Airbags | 10 |
| 21 | Heated washer nozzles | 10 |
| 22 | 2011-2012: Relay coil, relay, vacuum pump (5-cyl. petrol and 2.0T) | 5 |
| 23 | Headlamp control | 5 |
| 24 | — | — |
| 25 | — | — |
| 26 | — | — |
| 27 | Relay, engine compartment box | 5 |
| 28 | Auxiliary lamps | 20 |
| 29 | Horn | 15 |
| 30 | 210011-2018: Engine Control Module (ECM) | 10 |
| 2016-2018, 4-cyl.: Engine Control Module (ECM) | 5 | |
| 31 | Transmission control module | 15 |
| 32 | 2011-2016: Compressor A/C, 2012-2018, diesel: Supporting coolant pump |
15 |
| 33 | Relay coils | 5 |
| 34 | 2011-2016: Starter motor relay | 30 |
| 35 | Ignition coils (4-cyl. petrol), Glow control module (5-cyl. diesel) | 10 |
| Engine control module (4-cyl.), Ignition coils (5, 6 -cyl. petrol), Capacitor (6-cyl.) | 20 | |
| 36 | 2011-2013: Engine control module (petrol) 2014-2015: Engine control module (petrol except 4-cyl. 2.0 l (does not apply to the B4204T7 engine)) 2016: Engine control module (5, 6-cyl. petrol) |
10 |
| 2011-2013: Engine control module (diesel) 2014-2015: Engine control module (1.6 l diesel, 5-cyl. diesel) 2016-2018: Engine control module (5-cyl. diesel) |
15 | |
| 2014-2015: Engine control module (4-cyl. 2.0 l (however, does apply to the B4204T7 engine)) 2016-2018: Engine control module (4-cyl.) |
15 | |
| 37 | 2011: Mass air flow sensor, valves (5-cyl diesel) 2012: Mass air flow sensor (5, 6-cyl.), Control valves (5-cyl. diesel), Injectors (5, 6-cyl. petrol), Engine control module (6-cyl.) 2013-2016: Mass air flow sensor (5-cyl. diesel, 6-cyl.); Control valves (5-cyl. diesel); Injectors (5, 6-cyl. petrol); Engine control module (5-cyl. petrol, 6-cyl.) 2017-2018: Mass airflow meter (5-cyl. diesel); Control valves (5-cyl. diesel) |
15 |
| 2012-2013: Valves (1.6 l petrol), Mass air flow sensor (1.6 l petrol), Mass air flow sensor (D4162T), Control valve, fuel flow (D4162T) 2014: Valves (1.6 l petrol); mass air flow sensor (1.6 l, 4-cyl. 2.0 l (does not apply to the B4204T7 engine.)); Thermostat (4-cyl. 2.0 l petrol (does not apply to the B4204T7 engine.)); EVAP valve (4-cyl. 2.0 l petrol (does not apply to the B4204T7 engine.)); Cooling valve for climate control system (4-cyl. 2.0 l diesel); Cooling pump for EGR (4-cyl. 2.0 l diesel) Mass air flow sensor (engine D4162T); Control valve, fuel flow (engine D4162T) 2015: Valves (1.6 l petrol); mass air flow sensor (1.6 l, 4-cyl. 2.0 l (does not apply to the B4204T7 engine)); Thermostat (4-cyl. 2.0 l petrol (does not apply to the B4204T7 engine)); EVAP valve (4-cyl. 2.0 l petrol (does not apply to the B4204T7 engine)); Cooling pump for EGR (4-cyl. 2.0 l diesel), Regulator valve, fuel flow (engine D4162T) 2016-2018: Mass air flow sensor (4-cyl.); Thermostat(4-cyl. petrol); EVAP valve (4-cyl. petrol); Cooling pump for EGR (4-cyl. diesel) |
10 | |
| 38 | 2011: Engine valves 2012: Compressor A/C (5, 6-cyl.), Engine valves, Engine control module (6-cyl.) Solenoids (6-cyl. without turbo), Actuator motors, intake manifold (6-cyl. without turbo), Mass air flow sensor (4-cyl. 2.0 l petrol), Oil level sensor (5-cyl. diesel), Coolant pump (D4162T) 2013: Solenoid clutch A/C (5, 6-cyl.); Valves, Engine control module (6-cyl.) Solenoids (6-cyl. without turbo); Actuator motors, intake manifold (6-cyl. without turbo); Mass air flow sensor (4-cyl. 2.0 l petrol, 5-cyl. petrol); Oil level sensor (5-cyl. diesel), Coolant pump (D4162T) 2014-2015: Solenoid clutch A/C (5, 6-cyl.); Valves (1.6 l, engine B4204T7; 5-cyl., 6-cyl.); Engine control module (6- cyl.); Solenoids (6-cyl. without turbo); Actuator motors, intake manifold (6-cyl. without turbo); Mass air flow sensor (engine B4204T7; 5-cyl. petrol); Oil level sensor (5-cyl. diesel) 2016: Solenoid clutch A/C (5, 6-cyl.); Valves (5, 6-cyl.); Engine control module (6-cyl.); Mass air flow sensor (5- cyl. petrol); Oil level sensor 2017-2018: Solenoid clutch A/C (5-cyl. diesel); Valves (5-cyl. diesel); Oil level senso |
10 |
| 2014-2015: Valves (4-cyl. 2.0 l (does not apply to the B4204T7 engine)); Oil pump (4-cyl. 2.0 l petrol (does not apply to the B4204T7 engine)); Lambdasond, centre (4-cyl. 2.0 l petrol (does not apply to the B4204T7 engine)); Lambda-sond, rear (4-cyl. 2.0 l diesel) 2016-2018: Valves (4-cyl.); Oil pump (4-cyl. petrol); Lambda-sond, centre (4-cyl. petrol); Lambdasond, rear (4-cyl. diesel) |
15 | |
| 39 | 2011: EVAP, Lambda-sond, Injection (petrol) 2012-2013: EVAP valve (5, 6-cyl. petrol), Lambda-sonds (5, 6-cyl. petrol) 2014-2015: Lambda-sond, front (4-cyl. 2.0 l (does not apply to the B4204T7 engine)); Lambda-sond, rear (4- cyl. 2.0 l petrol (does not apply to the B4204T7 engine)); EVAP valve (5, 6-cyl. petrol); Lambdasonds (5, 6-cyl. petrol) 2016: Lambda-sond, front (4-cyl.); Lambda-sond, rear (4-cyl. petrol), EVAP valve (5, 6-cyl. petrol); Lambda-sonds (5, 6-cyl.); Control module radiator roller cover (5-cyl. diesel) 2017-2018: Lambda-sond, front (4-cyl.); Lambda-sond, rear (4-cyl. petrol) Lambda-sonds (5-cyl. diesel); Control module, radiator roller cover (5-cyl. diesel) |
15 |
| 2011: Lambda-sond (4-cyl. petrol, 5-cyl. diesel) 2012-2013: Lambda-sonds (4-cyl. petrol), Lambda-sond (diesel), Control module, radiator roller cover (manual 5-cyl. 2.0 l diesel) 2014-2015: Lambda-sonds (1.6 l petrol, engine B4204T7); Lambdasond (5-cyl. diesel); Control module, radiator roller cover (1.6 l diesel, 5-cyl. diesel) |
10 | |
| 40 | 2011: Vacuum pump, crankcase valve (5-cyl. turbo, 2.0 GTDI) Diesel filter heater 2012: Vacuum pump (5-cyl. petrol), Crankcase ventilation heater (5-cyl. petrol), Diesel filter heater 2013-2018: Diesel filter heater |
20 |
| 2012: Coolant pump (1.6 l petrol Start/Stop) 2013: Coolant pump (1.6 l petrol Start/Stop, 5-cyl. petrol Start/Stop); Crankcase ventilation heater (5-cyl. Petrol); Oil pump automatic gearbox (5-cyl. petrol Start/Stop) 2014: Coolant pump (1.6 l petrol Start/Stop); Crankcase ventilation heater (5-cyl. petrol); Oil pump automatic gearbox(5-cyl. petrol Start/Stop) 2015: Coolant pump (1.6 l petrol Start/Stop) Coolant pump (5-cyl. petrol); Crankcase ventilation heater (5-cyl. petrol); Oil pump automatic gearbox (5-cyl. petrol Start/Stop) 2016: Coolant pump (5-cyl. petrol); Crankcase ventilation heater (5-cyl. petrol); Oil pump automatic gearbox (5-cyl. petrol Start/Stop) |
10 | |
| 2014-2015: Ignition coils (4-cyl. 2.0 l petrol (does not apply to the B4204T7 engine)) 2016-2018: Ignition coils (4-cyl. petrol) |
15 | |
| 41 | 25011: Crankcase ventilation heater (5-cyl. diesel) 2013-2016: Control module, radiator roller cover (5-cyl. petrol) |
|
| 2012: Crankcase ventilation heater (5-cyl. diesel) 2013-2018: Crankcase ventilation heater (5-cyl. diesel); Oil pump automatic gearbox (5-cyl. diesel Start/Stop) |
10 | |
| 2014: Solenoid clutch A/C (4-cyl. 2.0 l (does not apply to the B4204T7 engine)); Glow control module (4-cyl. 2.0 l diesel); Oil pump (4-cyl. 2.0 l diesel) 2015: Solenoid clutch A/C (4-cyl. 2.0 l diesel); Glow control module (4-cyl. 2.0 l diesel); Oil pump (4-cyl. 2.0 l diesel) |
15 | |
| 2015: Solenoid clutch A/C (4-cyl. 2.0 l petrol (does not apply to the B4204T7 engine)) 2016-2018: Solenoid clutch A/C (4-cyl.); Glow control module (4-cyl. diesel); Oil pump (4-cyl. diesel) |
7,5 | |
| 42 | 2011: Glow plugs (5-cyl. diesel) 2012-2018: Glow plugs (diesel) |
70 |
| 2014-2015: Coolant pump (4-cyl. 2.0 l petrol (does not apply to the B4204T7 engine)) 2016-2018: Coolant pump (4-cyl. petrol) |
50 | |
| 43 | 2011-2012: Cooling fan (4 – 5-cyl. petrol) 2013: Cooling fan (4-cyl., 5-cyl. petrol) 2014-2015: Cooling fan (1.6 l, 4-cyl. 2.0 l petrol, 5-cyl. petrol) 2016: Cooling fan (4 – 5-cyl. petrol) 2017-2018: Cooling fan (petrol) |
60 |
| 2011-2012: Cooling fan (6-cyl. petrol), (5- cyl. diesel) 2013: Cooling fan (6-cyl., 5-cyl. diesel) 2014-2015: Cooling fan (6-cyl., 4-cyl. 2.0 l diesel, 5-cyl. diesel) 2016: Cooling fan (6-cyl., 4, 5-cyl. diesel) 2017-2018: Cooling fan (petrol, depending on cooling fan variant.), Cooling fan (diesel) |
80 | |
| 44 | 2011: Electro-hydraulic power steering (1.6D) | 80 |
| 2011: Electro-hydraulic power steering (other) 2012-2013: Electro-hydraulic power steering 2014-2018: Power steering |
100 |

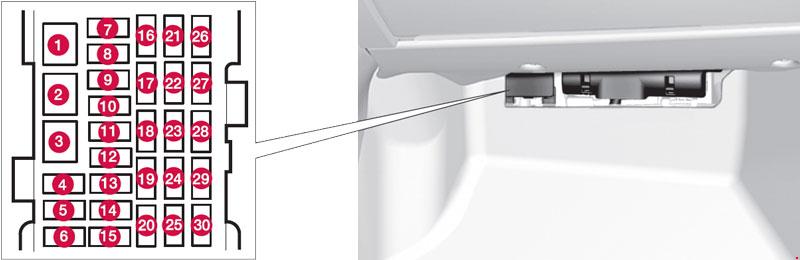

Under the glovebox No.1
| Position | Function | Ampere ratting [A] |
| 1 | 2011: Primary fuse, control module, audio, Bass speaker 2012-2018: Primary fuse for audio control module, Primary fuse for fuses 16-20 |
40 |
| 2 | 2015-2018: Windscreen washers; Rear window washer | 25 |
| 3 | — | — |
| 4 | — | — |
| 5 | — | — |
| 6 | D0or handles, keyless system | 50 |
| 7 | — | — |
| 8 | Control panel, driver’s door | 20 |
| 9 | Control panel, front passenger door | 20 |
| 10 | Control panel, rear passenger door, right | 20 |
| 11 | Control panel, rear passenger door, left | 20 |
| 12 | Keyless | 7,5 |
| 13 | Power seat driver’s side | 20 |
| 14 | Power seat passenger side | 20 |
| 15 | 2011-2012: Folding head restraint | 15 |
| 16 | Infotainment Control Module or Screen | 5 |
| 17 | Audio control module, TV, Satellite radio, Digital radio | 10 |
| 18 | Audio control module or Control module Sensus | 15 |
| 19 | Telephone, Bluetooth™ | 5 |
| 20 | — | — |
| 21 | Sun roof, interior lighting roof, climate sensor, damper motors air intake | 5 |
| 22 | 12 V socket, tunnel console | 15 |
| 23 | 2011: Seat heating, front passenger side 2012-2018: Seat heating, rear passenger side right |
15 |
| 24 | 2011: Seat heating, front driver’s side 2012-2018: Seat heating, rear passenger side left |
15 |
| 25 | 2014-2018: Electric additional heater | 5 |
| 26 | 2011: Seat heating, rear passenger side right 2012-2018: Seat heating, front passenger side |
15 |
| 27 | 2011: Seat heating, rear passenger side left 2012-2018: Seat heating, front driver’s side |
15 |
| 28 | Parking assistance, Parking camera, RTI, BLIS | 5 |
| 29 | 2011-2012: Control module AWD | 10 |
| 2013-2018:Control module AWD | 15 | |
| 30 | Active chassis Four-C | 10 |

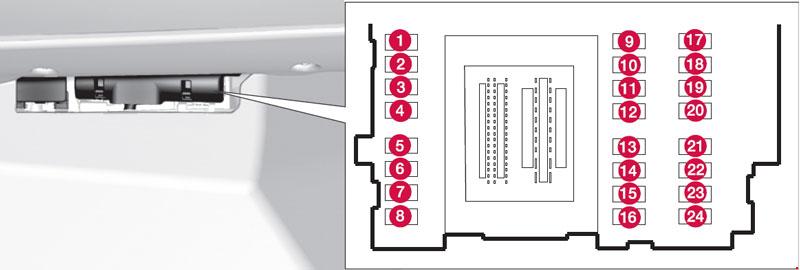

Under the glovebox No.2
| Position | Function | Ampere ratting [A] |
| 1 | Rear window wiper | 15 |
| 2 | — | — |
| 3 | Interior lighting, Driver’s door control panel, power windows, Power seats, front, Remote controlled garage door opener | 7,5 |
| 4 | 2011-2013: Information display (DIM) 2014-2018: Combined instrument panel |
5 |
| 5 | Adaptive cruise control, ACC; collision warning system | 10 |
| 6 | Interior lighting; Rain sensor | 7,5 |
| 7 | Steering wheel module | 7,5 |
| 8 | Central locking system, fuel filler flap | 10 |
| 9 | 2011-2013: Rear window washer 2014-2018: Heated steering wheel |
15 |
| 10 | 2011-2013: Windscreen washers 2014-2018: Heated windscreen |
15 |
| 11 | Unlocking, tailgate | 10 |
| 12 | 2013-2018: Folding head restraint | 10 |
| 13 | Fuel pump | 20 |
| 14 | Remote control key receiver, Movement detector alarm, Climate panel | 5 |
| 15 | Steering lock | 15 |
| 16 | Siren; Data link connector OBDII | 5 |
| 17 | — | — |
| 18 | Airbags | 10 |
| 19 | Collision warning system | 5 |
| 20 | Accelerator pedal sensor; Dimming interior rearview mirror; Seat heating, rear Electric additional heater | 7,5 |
| 21 | 2014-2018: Infotainment control module (Performance); Audio (Performance) | 15 |
| 22 | Brake light | 5 |
| 23 | Sunroof | 20 |
| 24 | Immobiliser | 5 |

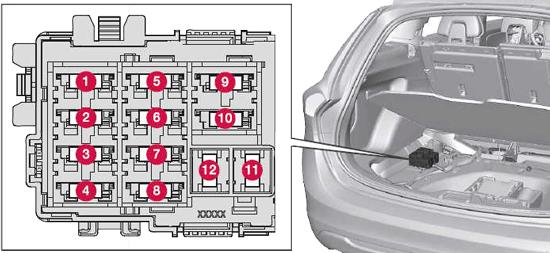

Fuses – cargo area
| Position | Function | Ampere ratting [A] |
| 1 | Electric parking brake, left | 30 |
| 2 | Electric parking brake, right | 30 |
| 3 | Rear window defroster | 30 |
| 4 | Trailer socket 2 | 15 |
| 5 | — | — |
| 6 | 12 V socket, cargo area | 15 |
| 7 | — | — |
| 8 | — | — |
| 9 | — | — |
| 10 | — | — |
| 11 | Trailer socket 1 | 40 |
| 12 | — | — |

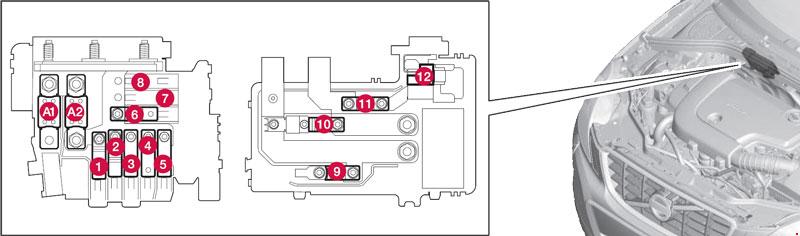

Fuses – in the engine compartment’s cold zone
| Position | Function | Ampere rating [A] |
| A1 | Main fuse for central electrical unit in the engine compartment | 175 |
| A2 | Main fuse for central electronic module (CEM) under the glovebox, relay/fuse box under the glovebox, central electrical unit in cargo area | 175 |
| 1 | Electric additional heater | 100 |
| 2 | Primary fuse for the central electronic module (CEM) under the glovebox | 50 |
| 3 | Primary fuse for relay/fuse box under the glovebox | 60 |
| 4 | 2011-2015: Primary fuse for central electrical unit in passenger compartment with fuse box A under the glovebox 2016-2018: Heated windscreen |
60 |
| 5 | Primary fuse for central electrical unit in cargo area | 60 |
| 6 | Ventilation fan | 40 |
| 7 | — | — |
| 8 | — | — |
| 9 | Start relay | 30 |
| 10 | 2011-2015: Internal diode | 50 |
| 11 | Support battery | 70 |
| 12 | 2012-2015: Central electronic module (CEM) (Reference voltage standby battery) | 15 |
| 2016-2018: Central electronic module (CEM) (Reference voltage standby battery) | 5 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
